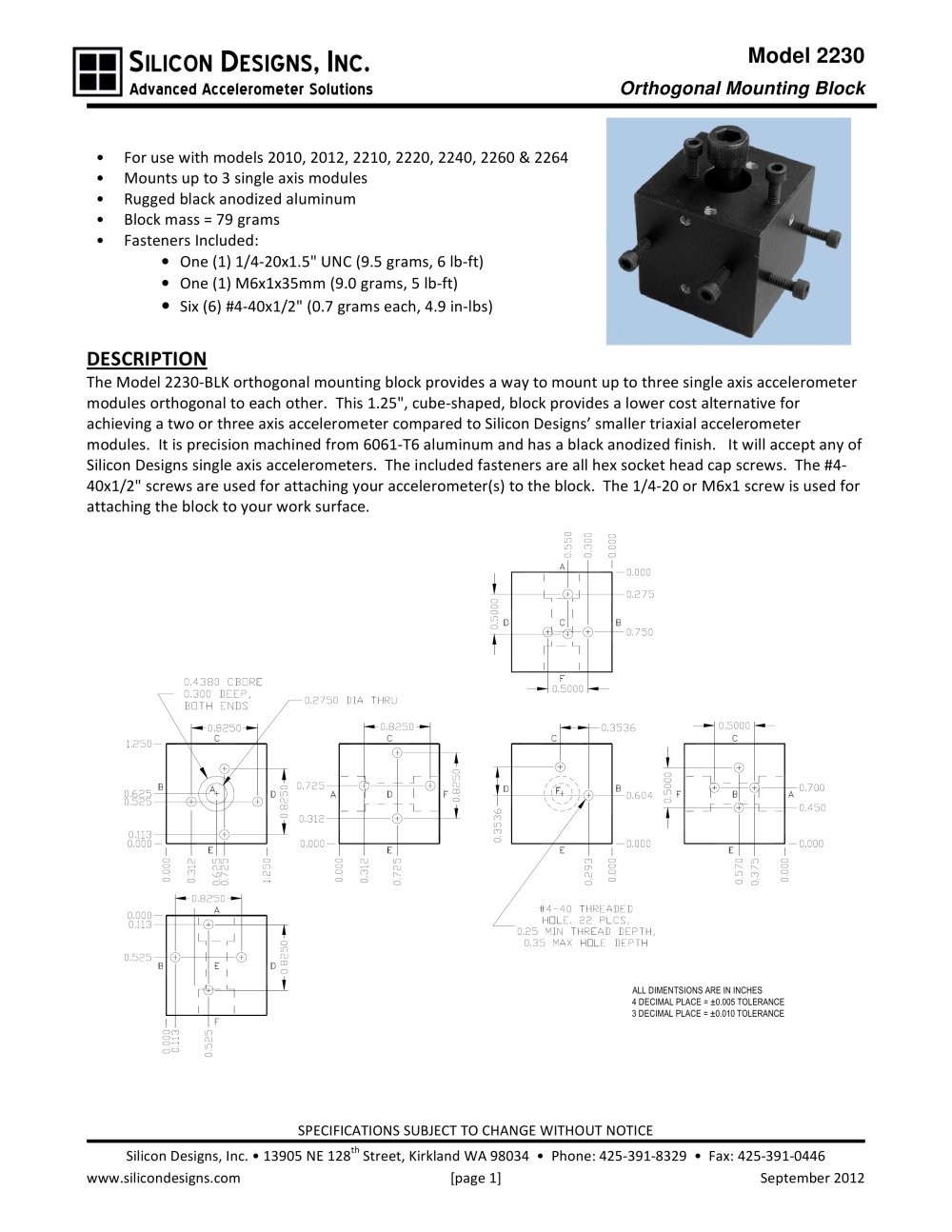

SILICON DESIGNS, INC Advanced Accelerometer Solutions for Demanding Applications Model 2230 Orthogonal Mounting Block SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Silicon Designs, Inc. • 1445-NW Mall Street, Issaquah, WA 98027-8945• Phone: 425-391-8329 • Fax: 425-391-0446 www.silicondesigns.com [page 1] Jul 10 • For use with models 2010, 2012, 2210, 2220, 2240, 2260 & 2264 • Mounts up to 3 single axis modules • Rugged black anodized aluminum • Block mass = 79 grams • Fasteners Included: • One (1) 1/4-20x1.5" UNC (9.5 grams, 6 lb-ft) • One (1) M6x1x35mm (9.0 grams, 5 lb-ft) • Six (6) #4-40x1/2" (0.7 grams each, 4.9 in-lbs) DESCRIPTION The Model 2230-BLK orthogonal mounting block provides a way to mount up to three single axis accelerometer modules orthogonal to each other. This 1.25", cube-shaped, block provides a lower cost alternative for achieving a two or three axis accelerometer compared to Silicon Designs’ smaller triaxial accelerometer modules. It is precision machined from 6061-T6 aluminum and has a black anodized finish. It will accept any of Silicon Designs single axis accelerometers. The included fasteners are all hex socket head cap screws. The #4- 40x1/2" screws are used for attaching your accelerometer(s) to the block. The 1/4-20 or M6x1 screw is used for attaching the block to your work surface. ALL DIMENTSIONS ARE IN INCHES 4 DECIMAL PLACE = ±0.005 TOLERANCE 3 DECIMAL PLACE = ±0.010 TOLERANCE
