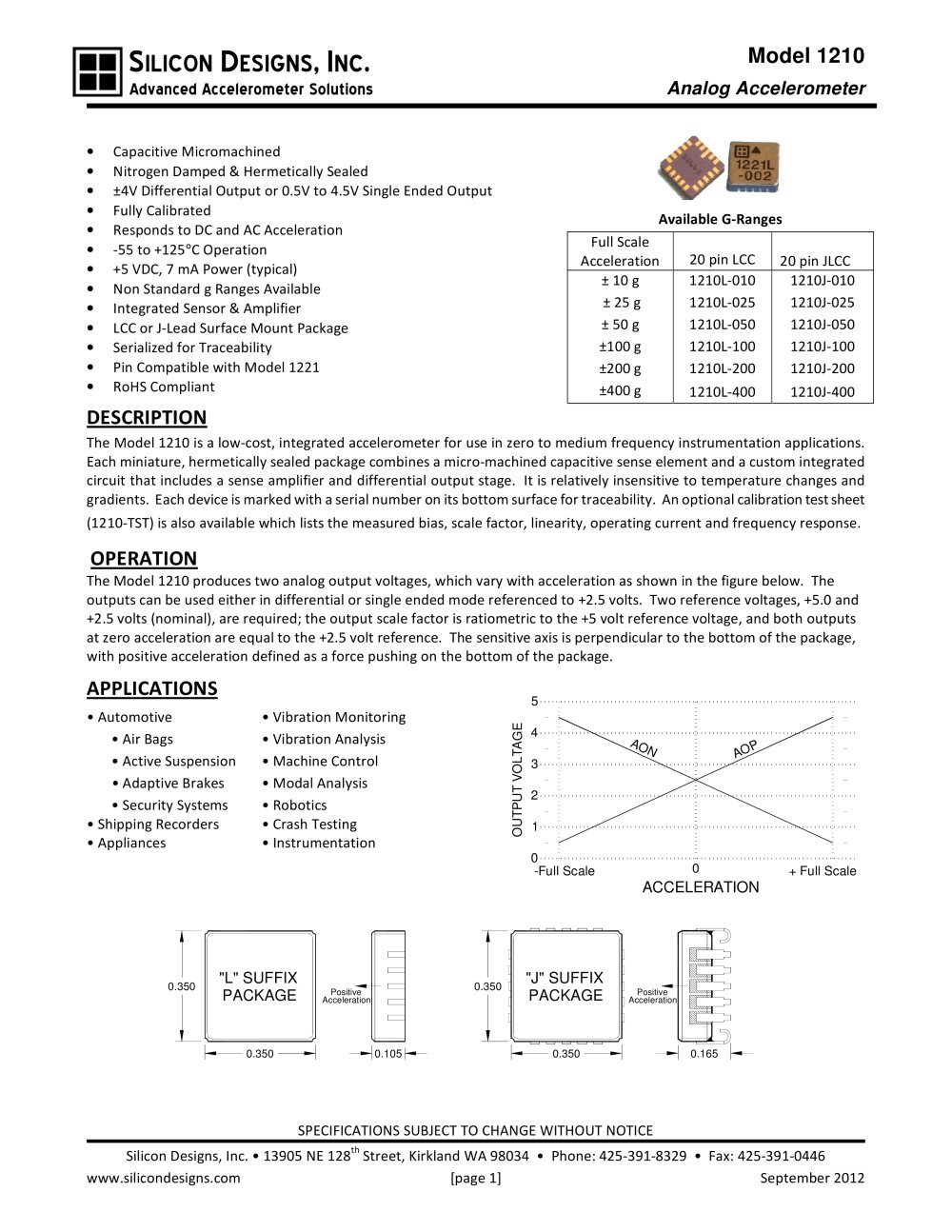

SILICON DESIGNS, INC Model 1210
Analog Accelerometer
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Silicon Designs, Inc. 1445-NW Mall Street, Issaquah, WA 98027-5344 Phone: 425-391-8329 Fax: 425-391-0446
www.silicondesigns.com [page 1] Nov 09
Capacitive Micromachined
Nitrogen Damped & Hermetically Sealed
±4V Differential Output or 0.5V to 4.5V Single Ended Output
Fully Calibrated
Responds to DC and AC Acceleration
-55 to +125°C Operation
+5 VDC, 7 mA Power (typical)
Non Standard g Ranges Available
Integrated Sensor & Amplifier
LCC or J-Lead Surface Mount Package
Serialized for Traceability
Pin Compatible with Model 1221
RoHS Compliant
Available G-Ranges
Full Scale
Acceleration 20 pin LCC 20 pin JLCC
± 5 g
± 10 g
± 25 g
± 50 g
±100 g
±200 g *
±400 g *
1210L-005
1210L-010
1210L-025
1210L-050
1210L-100
1210L-200
1210L-400
1210J-005
1210J-010
1210J-025
1210J-050
1210J-100
1210J-200
1210J-400
* Recommended for Down Hole Drilling
DESCRIPTION
The Model 1210 is a low-cost, integrated
accelerometer for use in zero to medium frequency instrumentation
applications. Each miniature, hermetically sealed package combines a micro-machined capacitive sense element and
a custom integrated circuit that includes a sense amplifier and differential output stage. It is relatively insensitive to
temperature changes and gradients. Each device is marked with a serial number on its bottom surface for
traceability. An optional calibration test sheet (1210-TST) is also available which lists the measured bias, scale factor,
linearity, operating current and frequency response.
OPERATION
The Model 1210 produces two analog output voltages, which vary with acceleration as shown in the figure below.
The outputs can be used either in differential or single ended mode referenced to +2.5 volts. Two reference
voltages, +5.0 and +2.5 volts (nominal), are required; the output scale factor is ratiometric to the +5 volt reference
voltage, and both outputs at zero acceleration are equal to the +2.5 volt reference. The sensitive axis is
perpendicular to the bottom of the package, with positive acceleration defined as a force pushing on the bottom of
the package.
COMMERCIAL
Automotive
o Air Bags
o Active Suspension
o Adaptive Brakes
o Security Systems
Shipping Recorders
Appliances
INDUSTRIAL
Vibration Monitoring
Vibration Analysis
Machine Control
Modal Analysis
Robotics
Crash Testing
Instrumentation
ACCELERATION
OUTPUT VOLTAGE
2
-Full Scale
1
0
5
4
3
AON
0 + Full Scale
AOP
