PSF is a strapping tool located on anoverhead spring pivoting system, ensuring the strapping tool isnot only always in the right position, but is light to use, minimisingoperator fatigue. PSF , which also acts as a workstation, enabling all packaging operations to be completed in a safe and ergonomic position - literally at the touch of a button! Included in the Signode

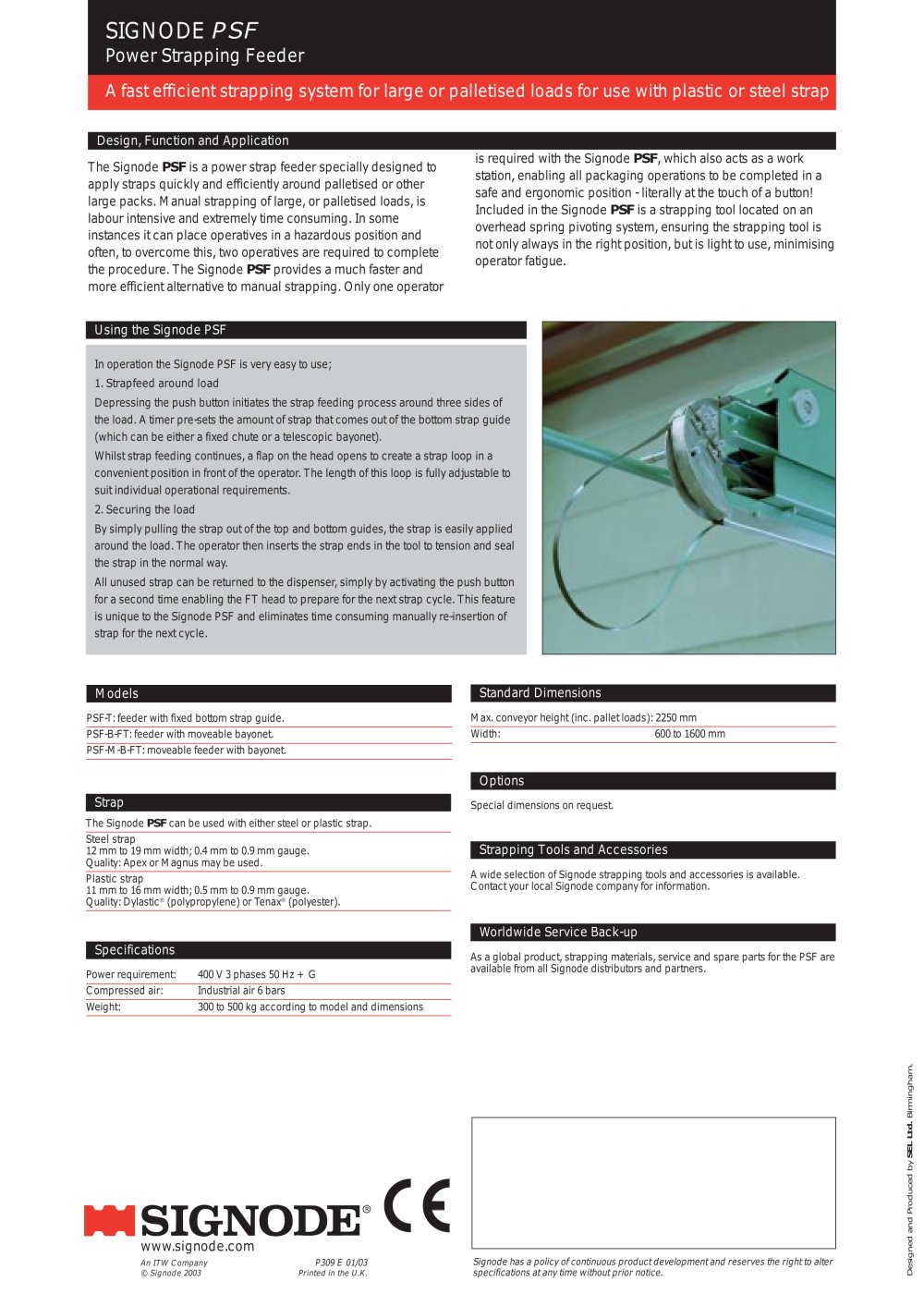

Signode - Steel Strapping Systems, Accessories - 15497 SIGNODE PSF Power Strapping Feeder

A fast efficient strapping system for large or palletised loads for use with plastic or steel strap

PSF provides a much faster andmore efficient alternative to manual strapping. Only one operatoris required with the Signode Design, Function and Application The Signode PSF is a power strap feeder specially designed toapply straps quickly and efficiently around palletised or other large packs. Manual strapping of large, or palletised loads, is labour intensive and extremely time consuming. In some instances it can place operatives in a hazardous position and often, to overcome this, two operatives are required to complete the procedure. The Signode Using the Signode PSF

In operation the Signode PSF is very easy to use; Depressing the push button initiates the strap feeding process around three sides ofthe load. A timer pre-sets the amount of strap that comes out of the bottom strap guide(which can be either a fixed chute or a telescopic bayonet).Whilst strap feeding continues, a flap on the head opens to create a strap loop in aconvenient position in front of the operator. The length of this loop is fully adjustable tosuit individual operational requirements. 1. Strapfeed around load By simply pulling the strap out of the top and bottom guides, the strap is easily appliedaround the load. The operator then inserts the strap ends in the tool to tension and seal the strap in the normal way.All unused strap can be returned to the dispenser, simply by activating the push buttonfor a second time enabling the FT head to prepare for the next strap cycle. This featureis unique to the Signode PSF and eliminates time consuming manually re-insertion of strap for the next cycle. 2. Securing the load

Models Standard Dimensions

PSF-T: feeder with fixed bottom strap guide. Max. conveyor height (inc. pallet loads): 2250 mm PSF-B-FT: feeder with moveable bayonet. Width:600 to 1600 mm PSF-M-B-FT: moveable feeder with bayonet.

Options Strap

Special dimensions on request. The Signode PSF can be used with either steel or plastic strap. Steel strap 12 mm to 19 mm width; 0.4 mm to 0.9 mm gauge.

Strapping Tools and Accessories

Quality: Apex or Magnus may be used. Plastic strap A wide selection of Signode strapping tools and accessories is available.Contact your local Signode company for information. 11 mm to 16 mm width; 0.5 mm to 0.9 mm gauge. Quality: Dylastic
® (polypropylene) or Tenax
® (polyester).

Worldwide Service Back-up Specifications

As a global product, strapping materials, service and spare parts for the PSF are available from all Signode distributors and partners. Power requirement:400 V 3 phases 50 Hz + G Compressed air:Industrial air 6 bars Weight:300 to 500 kg according to model and dimensions
Birmingham. SEL Ltd. R
