StrapPackaging/Steel

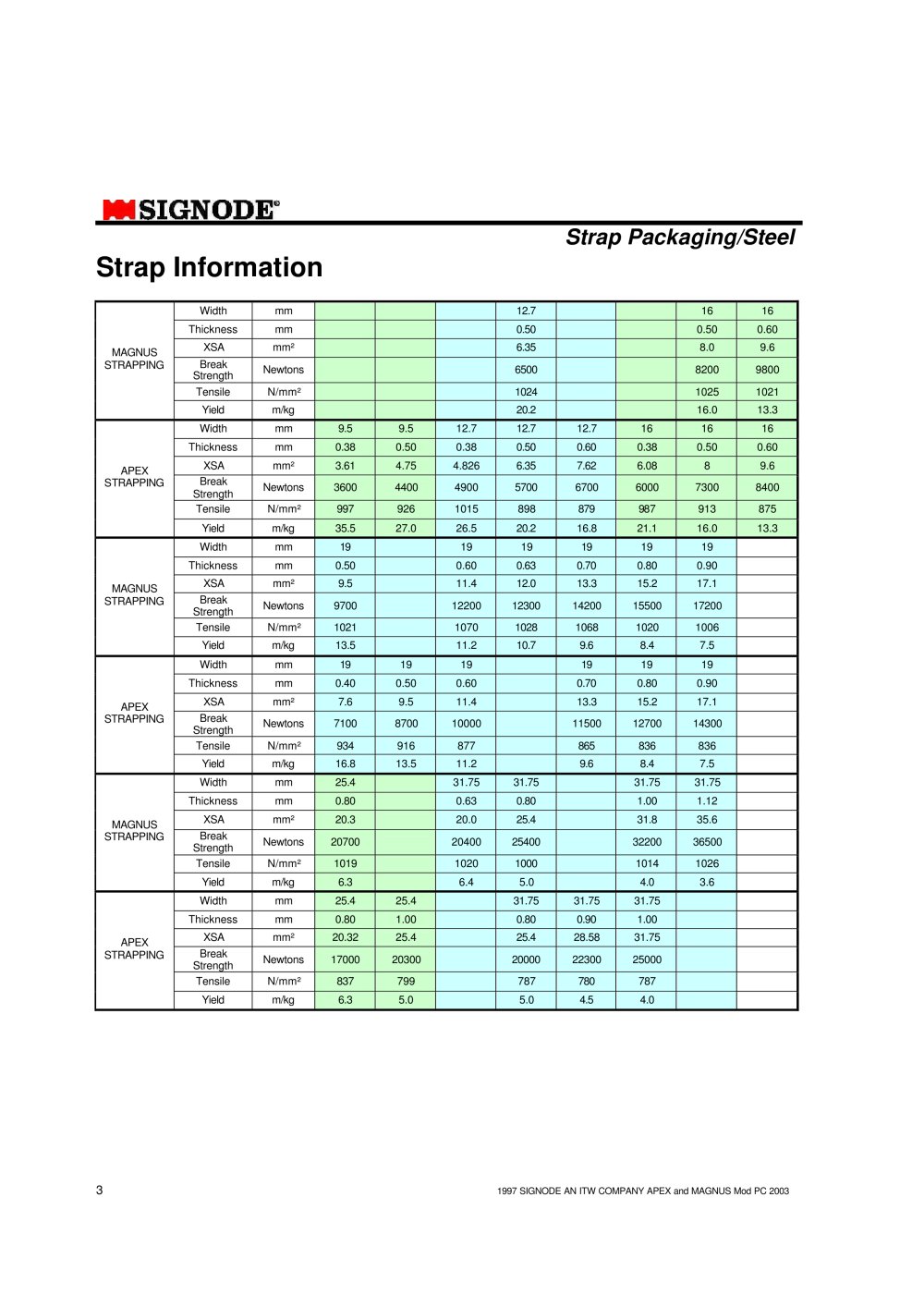

Signode - Apex and Magnus Steel strapping - 15497 Strap Information

Widthmm 12.7 16 16 Thicknessmm 0.50 0.50 0.60 MAGNUSSTRAPPINGYieldm/kg XSAmm² 6.35 8.0 9.6 BreakStrengthNewtons 6500 8200 9800 TensileN/mm² 1024 1025 1021 20.2 16.0 13.3 Widthmm 9.5 9.5 12.7 12.7 12.7 16 16 16 Thicknessmm 0.38 0.50 0.38 0.50 0.60 0.38 0.50 0.60 APEXSTRAPPINGYieldm/kg XSAmm² 3.61 4.75 4.826 6.35 7.62 6.08 8 9.6 BreakStrengthNewtons 3600 4400 4900 5700 6700 6000 7300 8400 TensileN/mm² 997 926 1015 898 879 987 913 875 35.5 27.0 26.5 20.2 16.8 21.1 16.0 13.3 Widthmm 19 19 19 19 19 19 Thicknessmm 0.50 0.60 0.63 0.70 0.80 0.90 MAGNUSSTRAPPINGYieldm/kg XSAmm² 9.5 11.4 12.0 13.3 15.2 17.1 BreakStrengthNewtons 9700 12200 12300 14200 15500 17200 TensileN/mm² 1021 1070 1028 1068 1020 1006 13.5 11.2 10.7 9.6 8.4 7.5 Widthmm 19 19 19 19 19 19 Thicknessmm 0.40 0.50 0.60 0.70 0.80 0.90 APEXSTRAPPINGYieldm/kg XSAmm² 7.6 9.5 11.4 13.3 15.2 17.1 BreakStrengthNewtons 7100 8700 10000 11500 12700 14300 TensileN/mm² 934 916 877 865 836 836 16.8 13.5 11.2 9.6 8.4 7.5 Widthmm 25.4 31.75 31.75 31.75 31.75 Thicknessmm 0.80 0.63 0.80 1.00 1.12 MAGNUSSTRAPPINGYieldm/kg XSAmm² 20.3 20.0 25.4 31.8 35.6 BreakStrengthNewtons 20700 20400 25400 32200 36500 TensileN/mm² 1019 1020 1000 1014 1026 6.3 6.4 5.0 4.0 3.6 Widthmm 25.4 25.4 31.75 31.75 31.75 Thicknessmm 0.80 1.00 0.80 0.90 1.00 APEXSTRAPPINGYieldm/kg XSAmm² 20.32 25.4 25.4 28.58 31.75 BreakStrengthNewtons 17000 20300 20000 22300 25000 TensileN/mm² 837 799 787 780 787 6.3 5.0 5.0 4.5 4.0

3

1997 SIGNODE AN ITW COMPANY APEX and MAGNUS Mod PC 2003
