Manual tensioner - SIGNODE - #1

Text version of the page

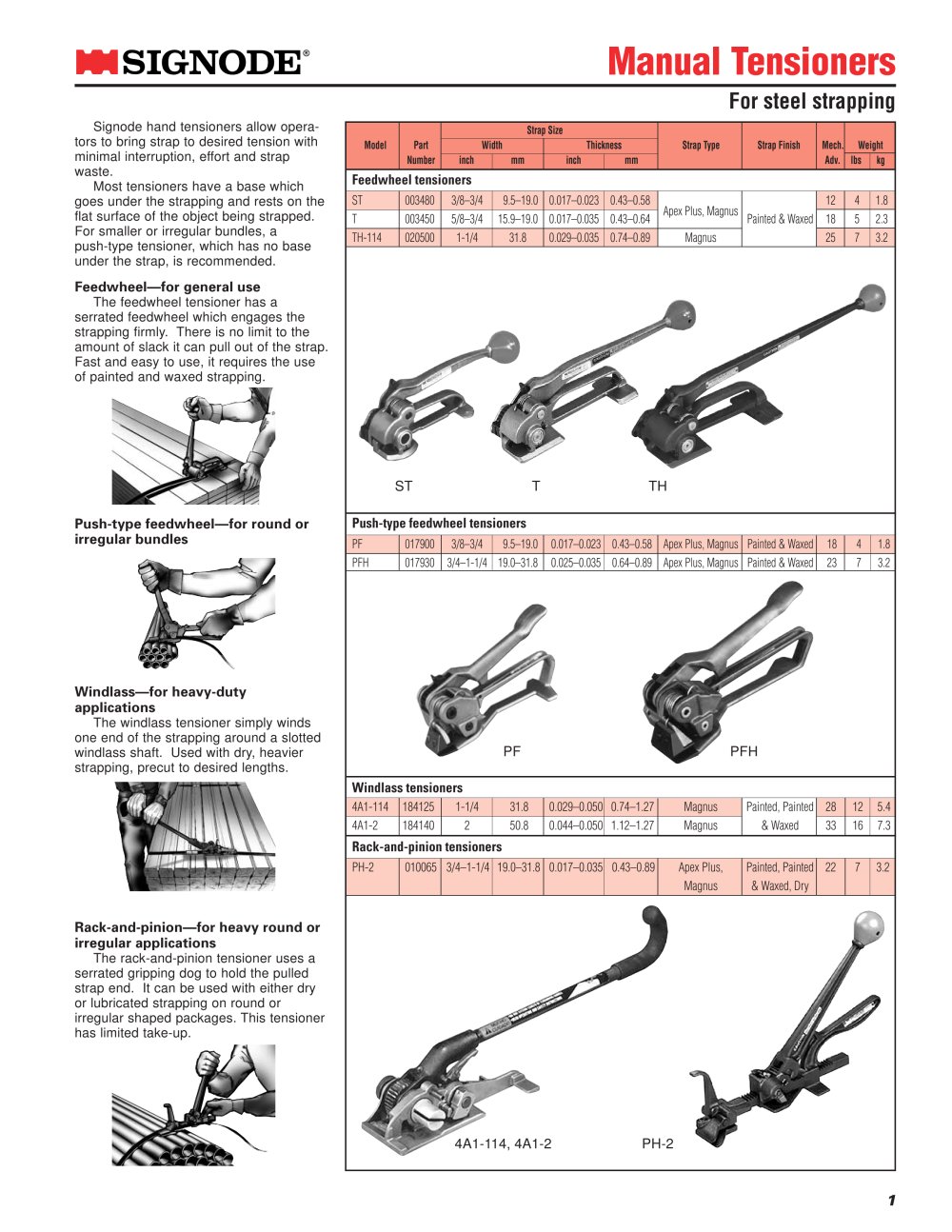

1 Signode hand tensioners allow operators to bring strap to desired tension with minimal interruption, effort and strap waste. Most tensioners have a base which goes under the strapping and rests on the flat surface of the object being strapped. For smaller or irregular bundles, a push-type tensioner, which has no base under the strap, is recommended. Feedwheel—for general use The feedwheel tensioner has a serrated feedwheel which engages the strapping firmly. There is no limit to the amount of slack it can pull out of the strap. Fast and easy to use, it requires the use of painted and waxed strapping. Push-type feedwheel—for round or irregular bundles Windlass—for heavy-duty applications The windlass tensioner simply winds one end of the strapping around a slotted windlass shaft. Used with dry, heavier strapping, precut to desired lengths. Rack-and-pinion—for heavy round or irregular applications The rack-and-pinion tensioner uses a serrated gripping dog to hold the pulled strap end. It can be used with either dry or lubricated strapping on round or irregular shaped packages. This tensioner has limited take-up. Manual Tensioners For steel strapping Strap Size Model Part Width Thickness Strap Type Strap Finish Mech. Weight Number inch mm inch mm Adv. lbs kg Feedwheel tensioners ST 003480 3/8–3/4 9.5–19.0 0.017–0.023 0.43–0.58 12 4 1.8 T 003450 5/8–3/4 15.9–19.0 0.017–0.035 0.43–0.64 Apex Plus, Magnus Painted & Waxed 18 5 2.3 TH-114 020500 1-1/4 31.8 0.029–0.035 0.74–0.89 Magnus 25 7 3.2 Push-type feedwheel tensioners PF 017900 3/8–3/4 9.5–19.0 0.017–0.023 0.43–0.58 Apex Plus, Magnus Painted & Waxed 18 4 1.8 PFH 017930 3/4–1-1/4 19.0–31.8 0.025–0.035 0.64–0.89 Apex Plus, Magnus Painted & Waxed 23 7 3.2 Windlass tensioners 4A1-114 184125 1-1/4 31.8 0.029–0.050 0.74–1.27 Magnus Painted, Painted 28 12 5.4 4A1-2 184140 2 50.8 0.044–0.050 1.12–1.27 Magnus & Waxed 33 16 7.3 Rack-and-pinion tensioners PH-2 010065 3/4–1-1/4 19.0–31.8 0.017–0.035 0.43–0.89 Apex Plus, Painted, Painted 22 7 3.2 Magnus & Waxed, Dry PF PFH ST T TH 4A1-114, 4A1-2 PH-2
