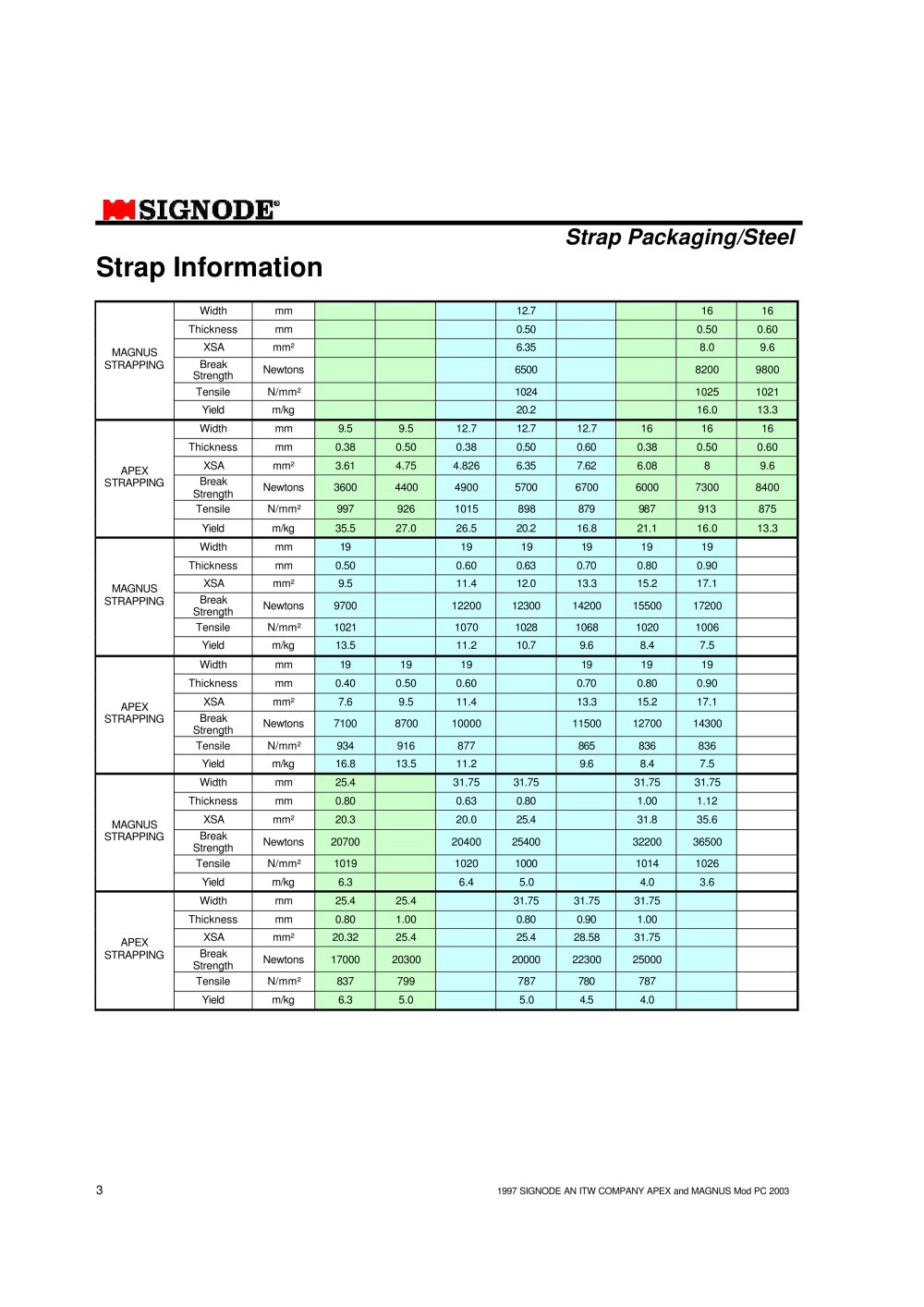

Text version of the page
3 1997 SIGNODE AN ITW COMPANY APEX and MAGNUS Mod PC 2003
Strap Packaging/Steel
Strap Information
Width mm 12.7 16 16
Thickness mm 0.50 0.50 0.60
XSA mm˛ 6.35 8.0 9.6
Break
Strength Newtons 6500 8200 9800
Tensile N/mm˛ 1024 1025 1021
MAGNUS
STRAPPING
Yield m/kg 20.2 16.0 13.3
Width mm 9.5 9.5 12.7 12.7 12.7 16 16 16
Thickness mm 0.38 0.50 0.38 0.50 0.60 0.38 0.50 0.60
XSA mm˛ 3.61 4.75 4.826 6.35 7.62 6.08 8 9.6
Break
Strength
Newtons 3600 4400 4900 5700 6700 6000 7300 8400
Tensile N/mm˛ 997 926 1015 898 879 987 913 875
APEX
STRAPPING
Yield m/kg 35.5 27.0 26.5 20.2 16.8 21.1 16.0 13.3
Width mm 19 19 19 19 19 19
Thickness mm 0.50 0.60 0.63 0.70 0.80 0.90
XSA mm˛ 9.5 11.4 12.0 13.3 15.2 17.1
Break
Strength Newtons 9700 12200 12300 14200 15500 17200
Tensile N/mm˛ 1021 1070 1028 1068 1020 1006
MAGNUS
STRAPPING
Yield m/kg 13.5 11.2 10.7 9.6 8.4 7.5
Width mm 19 19 19 19 19 19
Thickness mm 0.40 0.50 0.60 0.70 0.80 0.90
XSA mm˛ 7.6 9.5 11.4 13.3 15.2 17.1
Break
Strength
Newtons 7100 8700 10000 11500 12700 14300
Tensile N/mm˛ 934 916 877 865 836 836
APEX
STRAPPING
Yield m/kg 16.8 13.5 11.2 9.6 8.4 7.5
Width mm 25.4 31.75 31.75 31.75 31.75
Thickness mm 0.80 0.63 0.80 1.00 1.12
XSA mm˛ 20.3 20.0 25.4 31.8 35.6
Break
Strength Newtons 20700 20400 25400 32200 36500
Tensile N/mm˛ 1019 1020 1000 1014 1026
MAGNUS
STRAPPING
Yield m/kg 6.3 6.4 5.0 4.0 3.6
Width mm 25.4 25.4 31.75 31.75 31.75
Thickness mm 0.80 1.00 0.80 0.90 1.00
XSA mm˛ 20.32 25.4 25.4 28.58 31.75
Break
Strength Newtons 17000 20300 20000 22300 25000
Tensile N/mm˛ 837 799 787 780 787
APEX
STRAPPING
Yield m/kg 6.3 5.0 5.0 4.5 4.0
