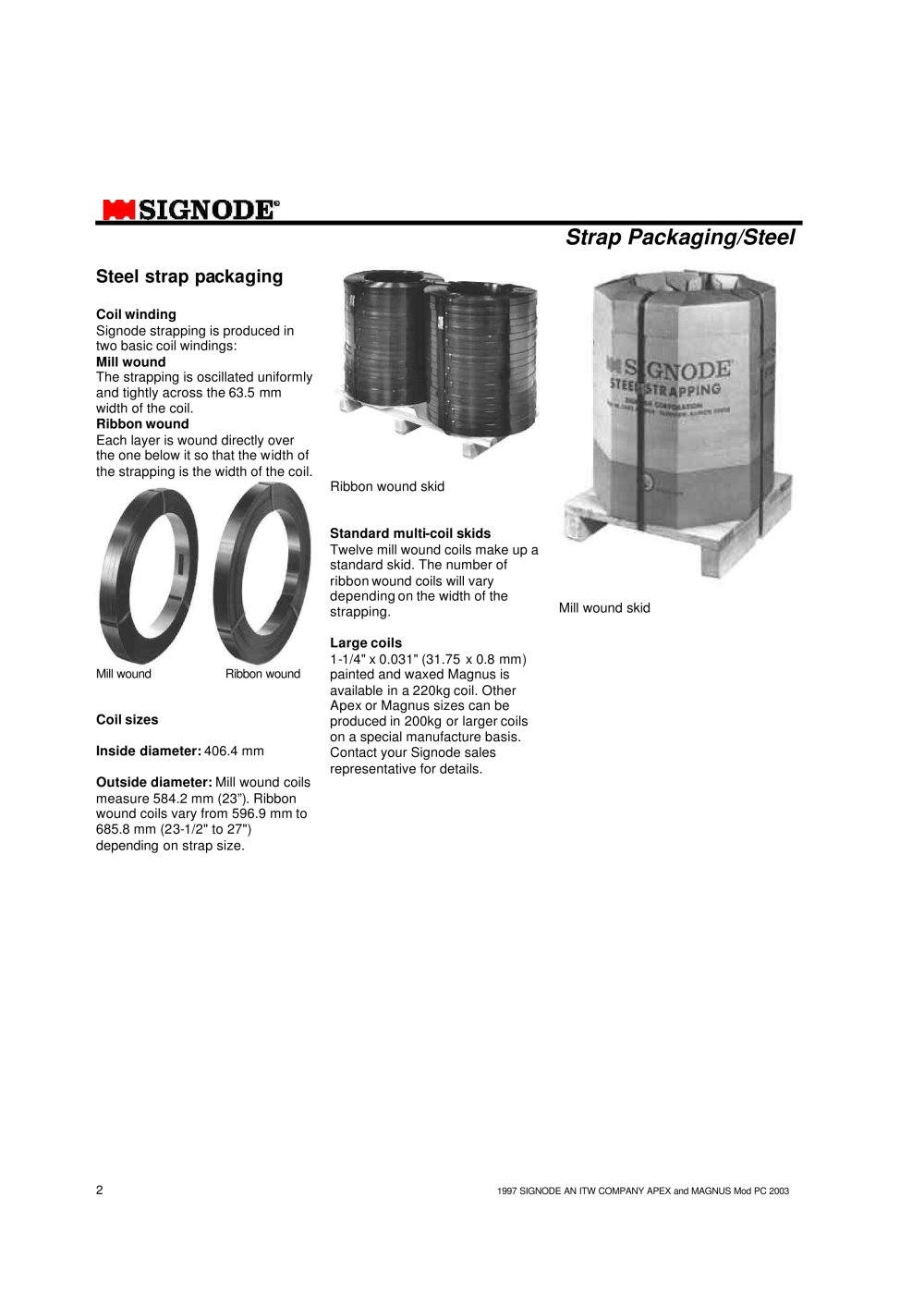

2 1997 SIGNODE AN ITW COMPANY APEX and MAGNUS Mod PC 2003 Strap Packaging/Steel Steel strap packaging Coil winding Signode strapping is produced in two basic coil windings: Mill wound The strapping is oscillated uniformly and tightly across the 63.5 mm width of the coil. Ribbon wound Each layer is wound directly over the one below it so that the width of the strapping is the width of the coil. Mill wound Ribbon wound Coil sizes Inside diameter: 406.4 mm Outside diameter: Mill wound coils measure 584.2 mm (23”). Ribbon wound coils vary from 596.9 mm to 685.8 mm (23-1/2" to 27") depending on strap size. Ribbon wound skid Standard multi-coil skids Twelve mill wound coils make up a standard skid. The number of ribbon wound coils will vary depending on the width of the strapping. Large coils 1-1/4" x 0.031" (31.75 x 0.8 mm) painted and waxed Magnus is available in a 220kg coil. Other Apex or Magnus sizes can be produced in 200kg or larger coils on a special manufacture basis. Contact your Signode sales representative for details. Mill wound skid
