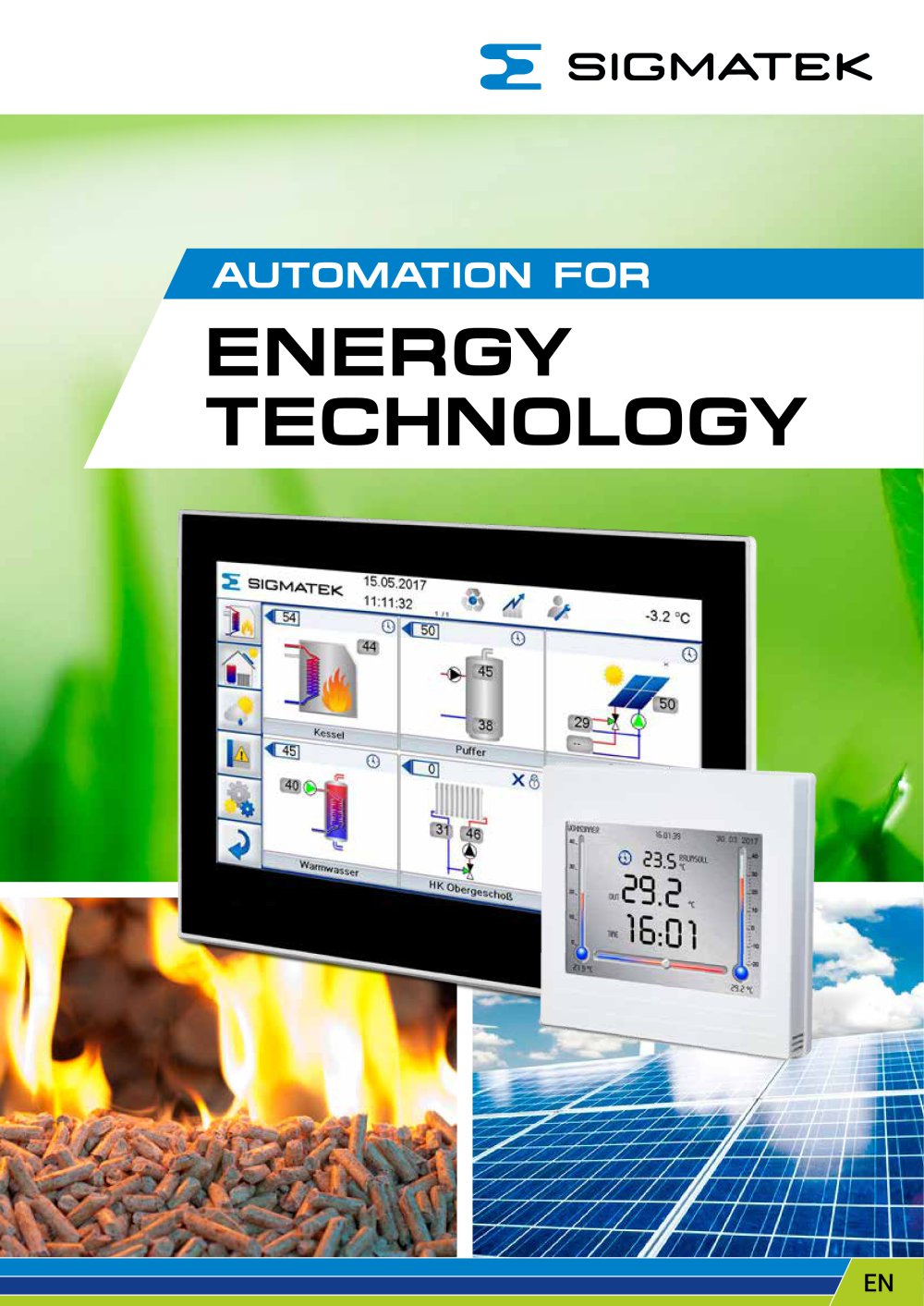

ENERGY TECHNOLOGY

ENERGY AUTOMATIONMODULAR, FREELY PROGRAMMABLE, FUTURE-PROOFUsing our highly modern system toolkit, you can automate your energy management solutions - whether pellet heating or a complex heating system - flexibly and efficiently. In addition to industrial automation, SIGMATEK has been active in energy automation for almost 30 years. Manufacturers of boilers, heat pumps or small power plants profit from our extensive know-how and can choose from a broad selection of user-specific hardware. This is derived from the most modern industrial control technology and modularly designed. The...

Open the catalog to page 2

YOUR MARKET ADVANTAGE HIGH-TECH SOLUTION Highly modern system toolkit – adapted from the industrial automation sector YOUR SYSTEM FOR ECONOMIC HEATING Whether pellets, wood chips or firewood: The HZS 732 (dual touch), HZS 771 and HZS 772 (single touch) control panels have the entire system in hand. The HZS 772 can also measure heat consumption via M-BUS and is used in multiple-party houses due to the exact heat volume measurement. Complex heating systems with boilers, buffer tanks, solar energy connections and several heating circuits can also be controlled and regulated with the...

Open the catalog to page 3

TAILOR-MADE SOLUTIONS FROM ONE TOOLKIT The modern components come from a system toolkit: central unit, function modules and expansions for furnace, heating circuit, buffer, boiler and solar. For operation, different variants are available: from simple room control units to intelligent control panels with energy efficient EDGE technology CPUs and color touch displays from 3.5 to 19 inches. Customer-specific system constellations can also be easily and flexibly implemented. Room Control Unit HZS 351/352 3.5“ TFT color display Internal temperature sensor HZS 351: 230 V AC HZS 352: 24 V DC...

Open the catalog to page 4

EFFICIENT AND COMFORTABLE HEAT DISTRIBUTION To ensure optimal heat distribution from, for example, a pellet boiler or heat pump to the dispensing units, SIGMATEK provides additional requirement-specific modules. This includes components for connecting heating circuits, buffer & boiler tanks and solar installations. The connection to the CPU in the operating panel is made over the bus system. To configure the heat management even more efficiently and economically, the intuitively designed operating surface provides numerous predefined functions such as system configuration, user...

Open the catalog to page 5

THE RIGHT SOFTWARE SAVES TIME AND MONEY The software is increasingly becoming an essential competitive factor. A simple to operate engineering tool helps to reduce design costs and implement applications more quickly. The library provided contains predefined components for energy control such as ignition, burning, dosing, ash removal or heating circuit regulation. Our heating experts support you with extensive know-how in creating applications. An essential competitive advantage: the simple to operate LASAL engineering tool The visualization is platform-independent and perfectly displayed -...

Open the catalog to page 6

ENERGY MANAGEMENT FROM ANYWHERE The particular flexibility of the SIGMATEK solution can be especially seen after installation with the complete visualization over the network. Thanks to modern network technology, comprehensive remote maintenance and operation is possible. Over an Internet browser only, and without special programs, authorized personnel have (with password protection) access to all functions of the heating system. The system can thereby be accessed from any PC, error messages responded to and diagnostic reports viewed. Modern remote maintenance and operation can also be...

Open the catalog to page 7
