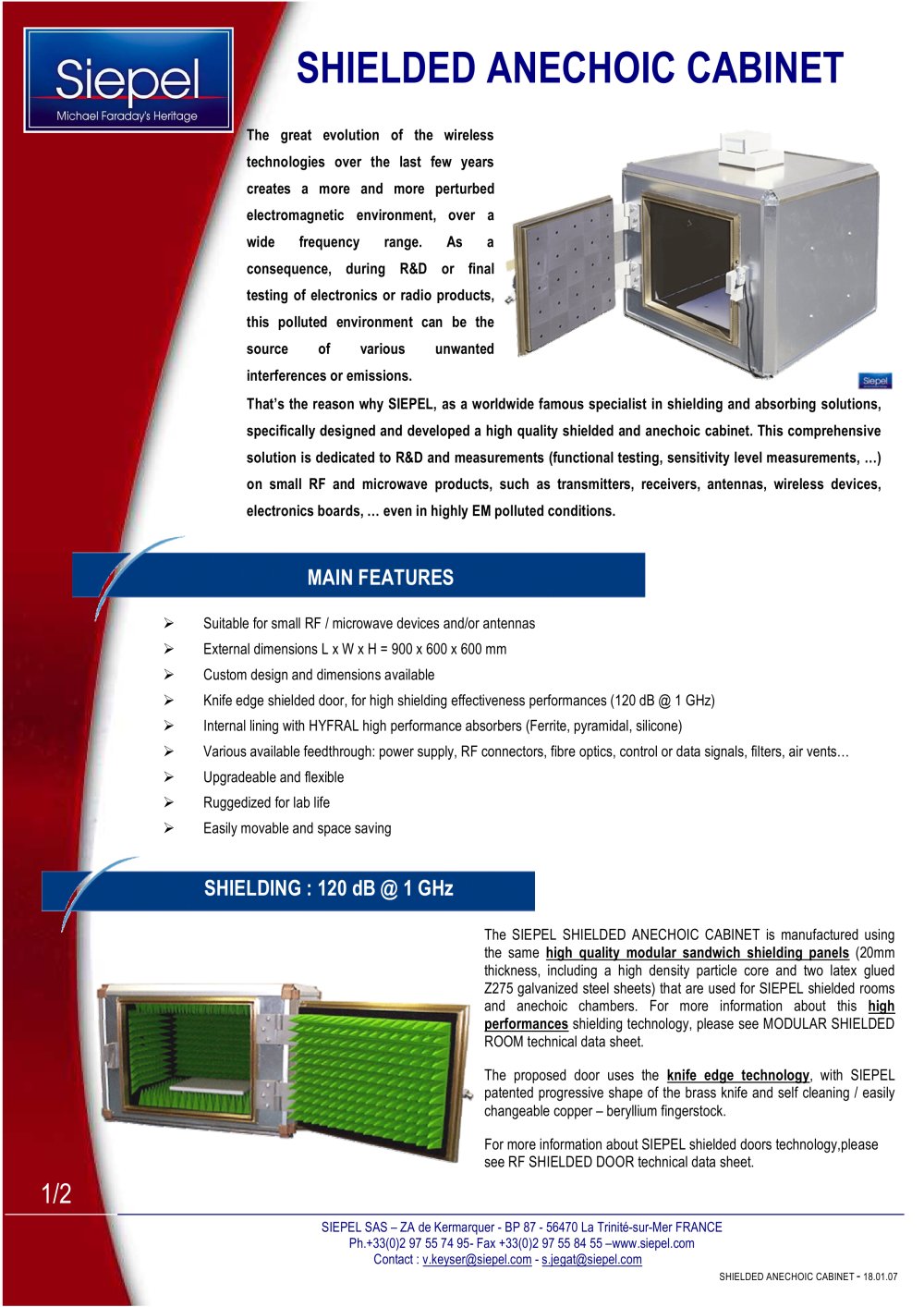

| SHIELDED ANECHOIC CABINET The great evolution of the wireless technologies over the last few years creates a more and more perturbed electromagnetic environment, over a wide frequency range. As a consequence, during R&D or final testing of electronics or radio products, this polluted environment can be the source of various unwanted interferences or emissions. That's the reason why SIEPEL, as a worldwide famous specialist in shielding and absorbing solutions, specifically designed and developed a high quality shielded and anechoic cabinet. This comprehensive solution is dedicated to R&D and measurements (functional testing, sensitivity level measurements,...) on small RF and microwave products, such as transmitters, receivers, antennas, wireless devices, electronics boards,... even in highly EM polluted conditions. | ||||||||||||||||
| > Suitable for small RF / microwave devices and/or antennas > External dimensions L x Wx H = 900x600x 600 mm > Custom design and dimensions available > Knife edge shielded door, for high shielding effectiveness performances (120 dB @ 1 GHz) > Internal lining with HYFRAL high performance absorbers (Ferrite, pyramidal, silicone) > Various available feedthrough: power supply, RF connectors, fibre optics, control or data signals, filters, air vents... > Upgradeable and flexible > Ruggedized for lab life > Easily movable and space saving | ||||||||||||||||
| SHIELDING : 120 dB@1 GHz | ||||||||||||||||
| The SIEPEL SHIELDED ANECHOIC CABINET is manufactured using the same high quality modular sandwich shielding panels (20mm thickness, including a high density particle core and two latex glued Z275 galvanized steel sheets) that are used for SIEPEL shielded rooms and anechoic chambers. For more information about this high performances shielding technology, please see MODULAR SHIELDED ROOM technical data sheet. The proposed door uses the knife edge technology, with SIEPEL patented progressive shape of the brass knife and self cleaning / easily changeable copper - beryllium fingerstock. For more information about SIEPEL shielded doors technology,please see RF SHIELDED DOOR technical data sheet. | ||||||||||||||||
| SIEPEL SAS - ZA de Kermarquer - BP 87- 56470 La Trinité-sur-Mer FRANCE Ph.+33(0)2 97 55 74 95- Fax +33(0)2 97 55 84 55 -www.siepel.com Contact : v.keyser@siepel.com - s.iegat@siepel.com | ||||||||||||||||
| SHIELDED ANECHOIC CABINET -18.01.07 | ||||||||||||||||
