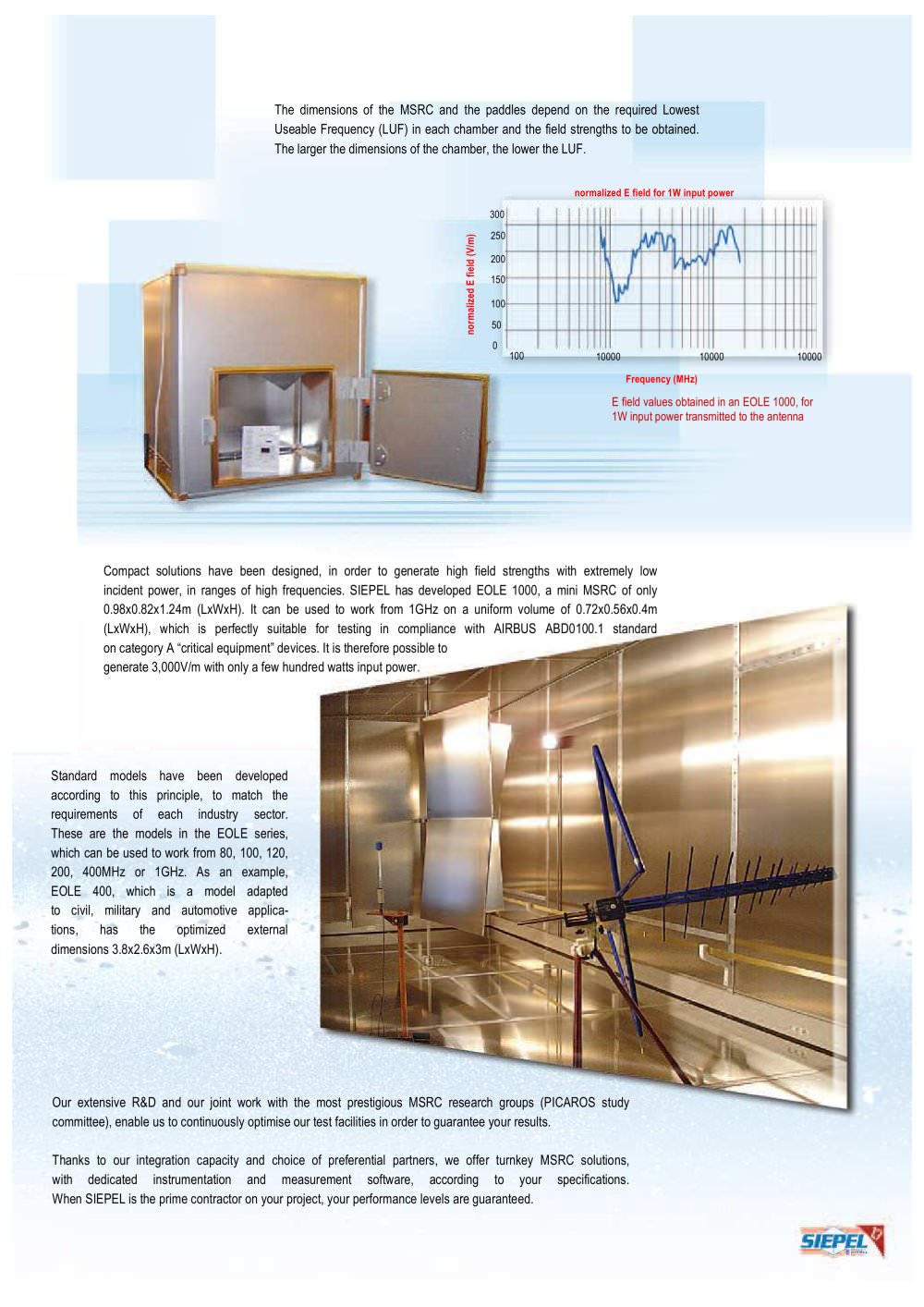

The dimensions of the MSRC and the paddles dépend on the required Lowest Useable Frequency (LUF) in each chamber and the field strengths to be obtained. The larger the dimensions of the chamber, the lower the LUF.
|
||
|
|
||
|
normalized E field for 1W input power
|
||
|
|
||
 E field values obtained in an EOLE 1000, for 1W input power transmitted to the antenna
|
||
|
|
||
|
Compact solutions have been designed, in order to generate high field strengths with extremely low incident power, in ranges of high frequencies. SIEPEL has developed EOLE 1000, a mini MSRC of only 0.98x0.82x1.24m (LxWxH). It can be used to work from 1GHz on a uniform volume of 0.72x0.56x0.4m (LxWxH), which is perfectly suitable for testing in compliance with AIRBUS ABD0100.1 standard^ on category A "critical equipment" devices. It is therefore possible to generate 3,000V/m with only a few hundred watts input power.
 |
||
|
|
||
|
Standard models have been developed according to this principle, to match the requirements of each industry sector. These are the models in the EOLE series, which can be used to work from 80,100,120, 200, 400MHz or 1GHz. As an example, EOLE 400, which is a model adapted to civil, military and automotive applications, has the optimized external dimensions 3.8x2.6x3m (LxWxH).
|
||
|
|
||
|
Our extensive R&D and our joint work with the most prestigious MSRC research groups (PICAROS study committee), enable us to continuously optimise our test facilities in order to guarantee your results.
|
||
|
|
||
|
Thanks to our integration capacity and choice of preferential partners, we offer turnkey MSRC solutions, with dedicated instrumentation and measurement software, according to your specifications. When SIEPEL is the prime contractor on your project, your performance levels are guaranteed.
|
||
|
|
||
