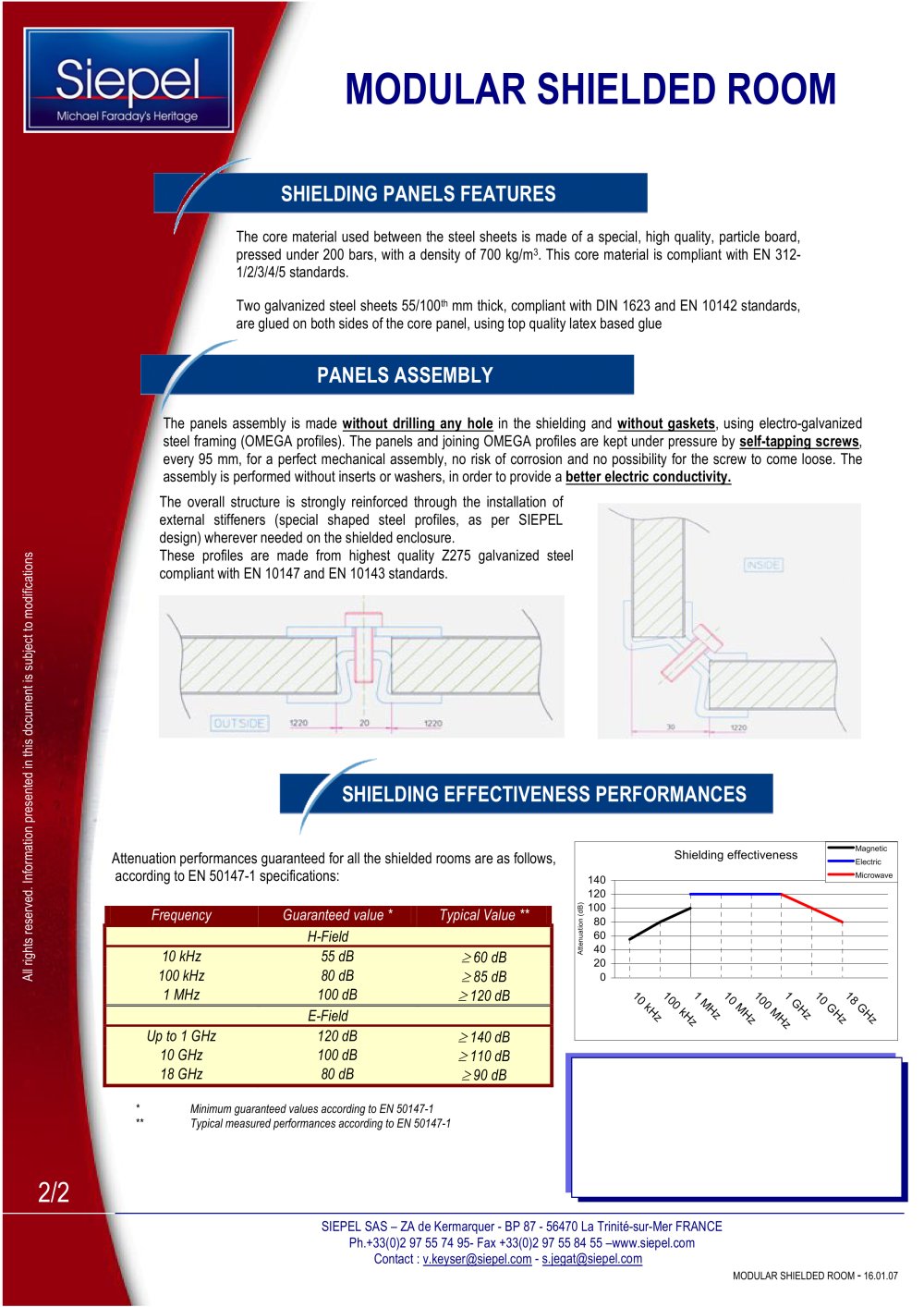

MODULAR SHIELDED ROOM

SHIELDING PANELS FEATURES

The core material used between the steel sheets is made of a special, high quality, particle board, pressed under 200 bars, with a density of 700 kg/m
3 . This core material is compliant with EN 312-1/2/3/4/5 standards. Two galvanized steel sheets 55/100
th mm thick, compliant with DIN 1623 and EN 10142 standards, are glued on both sides of the core panel, using top quality latex based glue

PANELS ASSEMBLY

The panels assembly is made without drilling any hole in the shielding and without gaskets , using electro-galvanized steel framing (OMEGA profiles). The panels and joining OMEGA profiles are kept under pressure by better electric conductivity. self-tapping screws , every 95 mm, for a perfect mechanical assembly, no risk of corrosion and no possibility for the screw to come loose. The assembly is performed without inserts or washers, in order to provide a The overall structure is strongly reinforced through the installation of external stiffeners (special shaped steel profiles, as per SIEPEL design) wherever needed on the shielded enclosure. These profiles are made from highest quality Z275 galvanized steel com p liant with EN 10147 and EN 10143 standards.

SHIELDING EFFECTIVENESS PERFORMANCES

Magnetic Attenuation performances guaranteed for all the shielded rooms are as follows, according to EN 50147-1 specifications:
Shielding effectiveness Electric Microwave Frequency Guaranteed value * Typical Value ** H-Field 10 kHz 55 dB
ll rights reserved. Information presented in this document is subject to modifications 60 dB
Attenuation (dB) A 100 kHz 80 dB 85 dB
0204060 80100120140 1 MHz 100 dB 120 dB
10 kHz100 kHz1 MHz10 MHz100 MHz1 GHz10 GHz18 GHz E-Field Up to 1 GHz 120 dB 140 dB 10 GHz 100 dB 110 dB 18 GHz 80 dB 90 dB
* Minimum guaranteed values according to EN 5014 7 - 1** Typical measured performances according to EN 50147-1

2/2

SIEPEL SAS – ZA de Kermarquer -BP 87-56470 La Trinité-sur-Mer FRANCE Ph.+33(0)2 97 55 74 95- Fax +33(0)2 97 55 84 55 –www.siepel.com Contact : v.keyser@siepel.com - s.jegat@siepel.com MODULAR SHIELDED ROOM - 16.01.07
