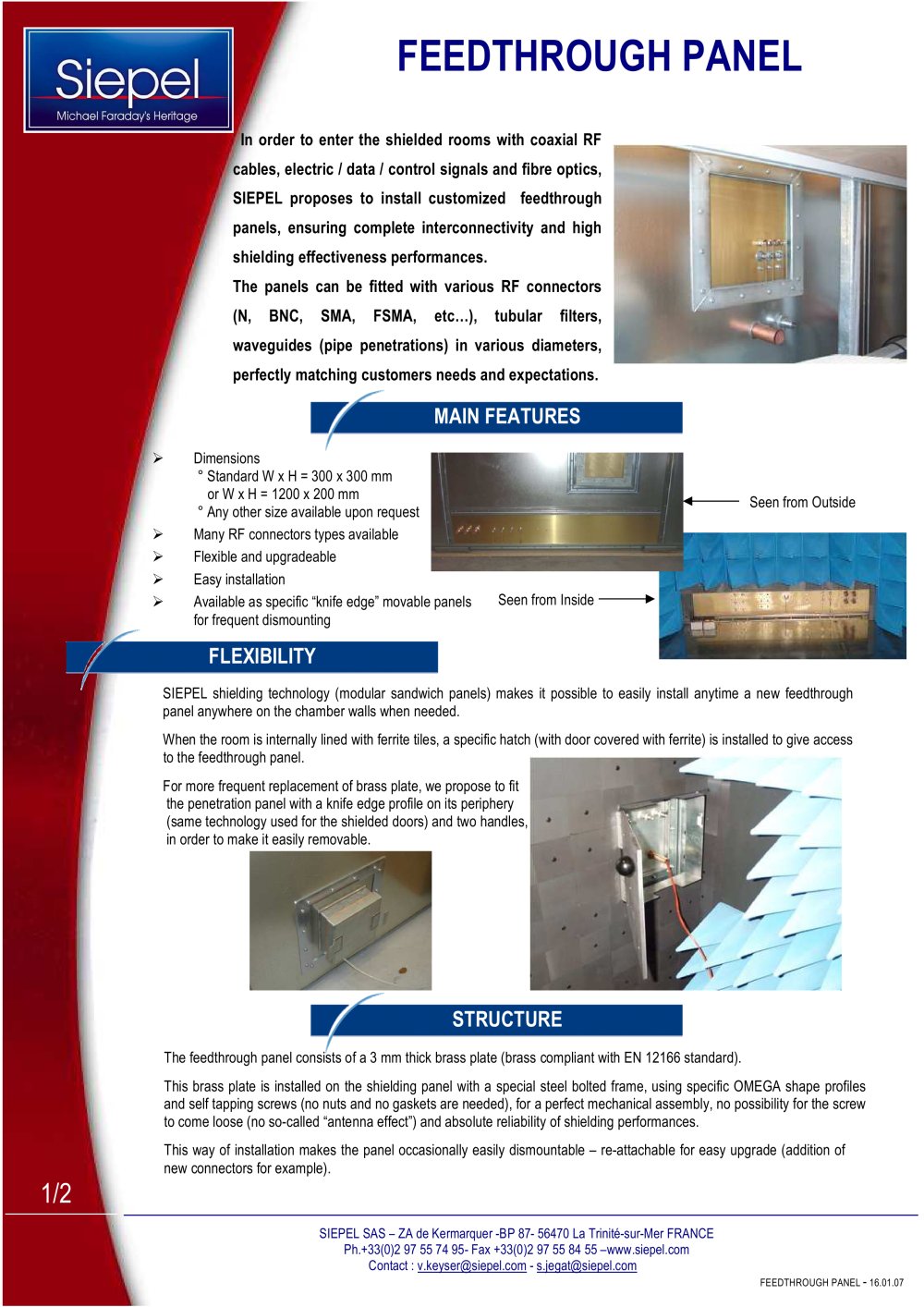

| | | FEEDTHROUGH PANEL | | |
| | | | | |
| | | |
| | | |
| | | ^ In order to enter the shielded rooms with coaxial RF 'cables, electric / data / control signals and fibre optics, rSIEPEL proposes to install customized feedthrough panels, ensuring complete interconnectivity and high shielding effectiveness performances. The panels can be fitted with various RF industrial connectors (N, BNC, SMA, FSMA, etc.), tubular filters, waveguides (pipe penetrations) in various diameters, perfectly matching customers needs and expectations. | | |
| | | |
| | | Dimensions | | |
| | | |
| | | > Many RF connectors types available > Flexible and upgradeable > Easy installation > Available as specific "knife edge" movable panels for frequent dismounting | | |
| | | |
| | | SIEPEL shielding technology (modular sandwich panels) makes it possible to easily install anytime a new feedthrough | | |
| | | |
| | | When the room is internally lined with ferrite tiles, a specific hatch (with door covered with ferrite) is installed to give access to the feedthrough panel. For more frequent replacement of brass plate, we propose to fit the penetration panel with a knife edge profile on its periphery (same technology used for the shielded industrial doors) and two handles, in order to make it easily removable. | | |
| | | |
| | | STRUCTURE | | |
| | | |
| | | The feedthrough panel consists of a 3 mm thick brass plate (brass compliant with EN 12166 standard). | | |
| | | |
| | | This brass plate is installed on the shielding panel with a special steel bolted frame, using specific OMEGA shape profiles and self threading screws (no nuts and no gaskets are needed), for a perfect mechanical assembly, no possibility for the screw to come loose (no so-called "antenna effect") and absolute reliability of shielding performances. This way of installation makes the panel occasionally easily dismountable - re-attachable for easy upgrade (addition of new connectors for example). | | |
| | | |
