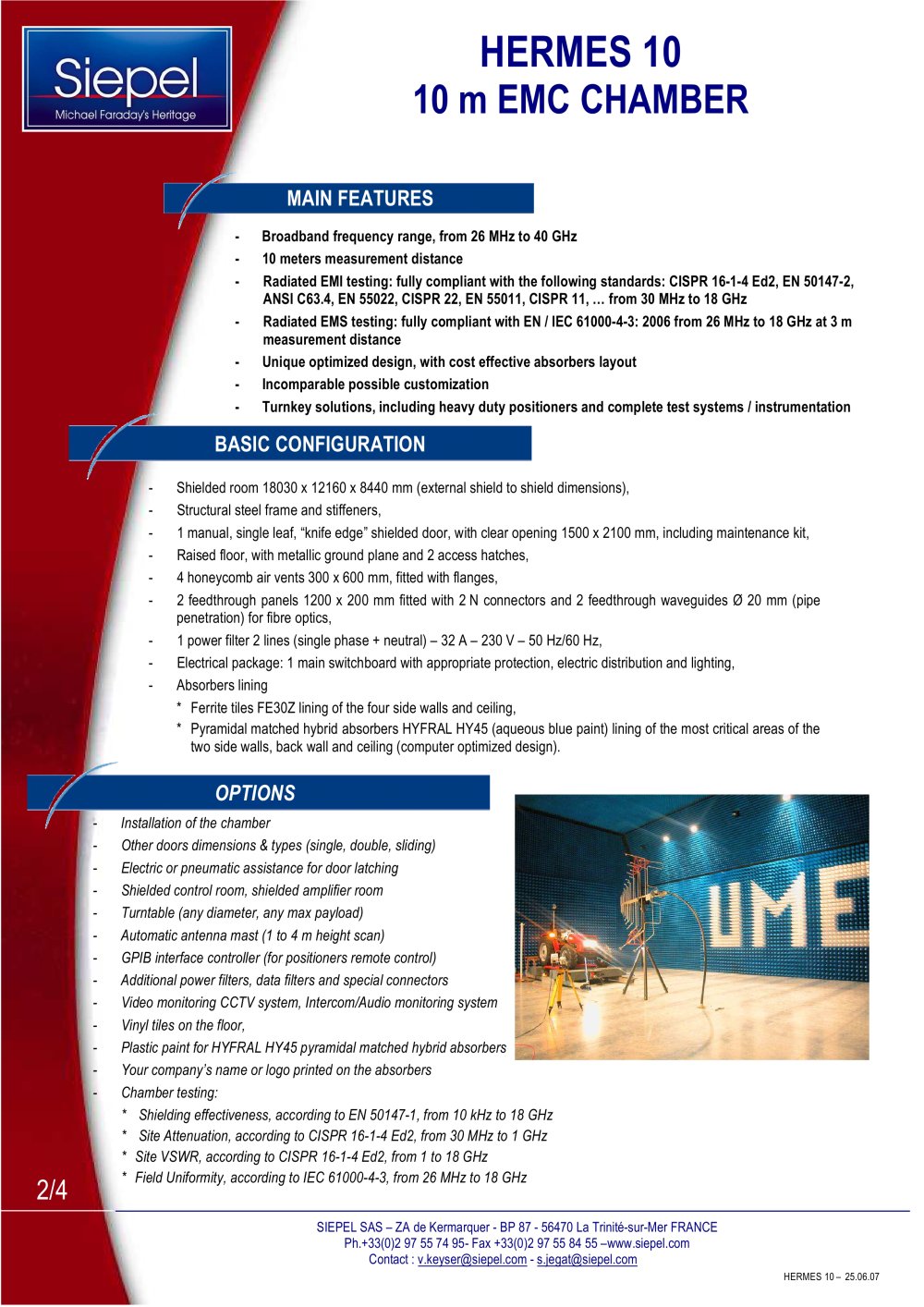

| | | HERMES 10 10 m EMC CHAMBER | | |
| | | | | |
| | | |
| | | |
| | | MAIN FEATURES | | |
| | | |
| | | 1 | | |
| | | Radiated EMI testing: fully compliantwith thefollowing standards: CISPR16-1-4 Ed2, EN 50147-2, ANSI C63.4, EN 55022, CISPR 22, EN 55011, CISPR 11,... from 30 MHzto 18 GHz Radiated EMS testing: fully compliant with EN / IEC 61000-4-3: 2006 from 26 MHz to 18 GHzat3m | | |
| | | |
| | | 1 | | |
| | | |
| | | Unique optimized design, with cost effective absorbers layout | | |
| | | |
| | | 1 | | Turnkey solutions, including heavy duty positioners and complete test systems / instrumentation | | |
| | | |
| | | |
| | | BASIC CONFIGURATION | | |
| | | |
| | | Structural steel frame and stiffeners, 1 manual, single leaf, "knife edge" shielded door, with clear opening 1500 x 2100 mm, including maintenance kit, | | |
| | | |
| | | 2 feedthrough panels 1200 x 200 mm fitted with 2 N connectors and 2 feedthrough waveguides 0 20 mm (pipe penetration) for fibre optics, | | |
| | | |
| | | Electrical package: 1 main switchboard with appropriate protection, electric distribution and lighting, Absorbers lining | | |
| | | |
| | | I | | Pyramidal matched hybrid absorbers H YFRAL H Y45 (a queous blue paint) lining of the most critical areas of the | | |
| | | |
| | | |
| | | OPTIONS | | |
| | | |
| | | Installation of the chamber Other doors dimensions & types (single, double, sliding) Electric or pneumatic assistance for door latching Shielded control room, shielded amplifier room Turntable (any diameter, any max payload) Automatic antenna mast (1to4m height scan) GPIB interface controller (for positioners remote control) | | |
| | | |
| | | Vinyl tiles on the floor, | | |
| | | |
| | | Your company's name or logo printed on the absorbers Chamber testing: | | |
| | | |
| | | 2/4 | | |
| | | |
| | | SIEPEL SAS - ZA de Kermarquer - BP 87- 56470 La Trinité-sur-Mer FRANCE Ph.+33(0)2 97 55 74 95- Fax +33(0)2 97 55 84 55 -www.siepel.com Contact : v.kevser@siepel.com - s.ieqat@siepel.com | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
