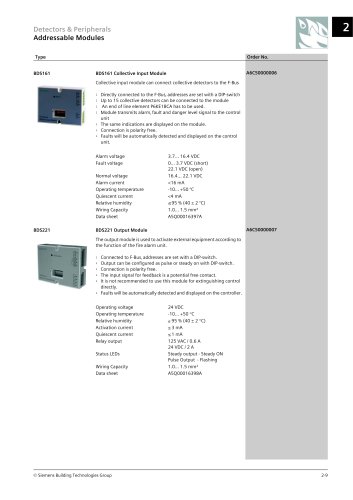

BC80 system catalog - 23 / 28 Pages

Detectors & Peripherals

Addressable Modules

Type

Order No.

BDS161

BDS161 Collective Input Module A6C50000006

Collective input module can connect collective detectors to the F-Bus

i Directly connected to the F-Bus, addresses are set with a DIP-switch

i Up to 15 collective detectors can be connected to the module

i An end of line element P6KE18CA has to be used.

i Module transmits alarm, fault and danger level signal to the control

unit

i The same indications are displayed on the module.

i Connection is polarity free.

i Faults will be automatically detected and displayed on the control

unit.

Alarm voltage

Fault voltage

Normal voltage

Alarm current

Operating temperature

Quiescent current

Relative humidity

Wiring Capacity

Data sheet

3.7... 16.4 VDC

0... 3.7 VDC (short)

22.1 VDC (open)

16.4... 22.1 VDC

<16 mA

-10... +50 °C

<4 mA

<95%(40±2°C)

1.0... 1.5 mm2

A5Q00016397A

BDS221

BDS221 Output Module

The output module is used to activate external equipment according to

the function of the fire alarm unit.

i Connected to F-Bus, addresses are set with a DIP-switch.

i Output can be configured as pulse or steady on with DIP-switch.

i Connection is polarity free.

i The input signal for feedback is a potential free contact.

i It is not recommended to use this module for extinguishing control

directly.

i Faults will be automatically detected and displayed on the controller.

Operating voltage

Operating temperature

Relative humidity

Activation current

Quiescent current

Relay output

Status LEDs

Wiring Capacity

Data sheet

24 VDC

-10... +50 °C

<95%(40±2°C)

<3 mA

s1 mA

125 VAC/0.6 A

24 VDC / 2 A

Steady output - Steady ON

Pulse Output - Flashing

1.0... 1.5 mm2

A5Q00016398A

© Siemens Building Technologies Group

2-9
