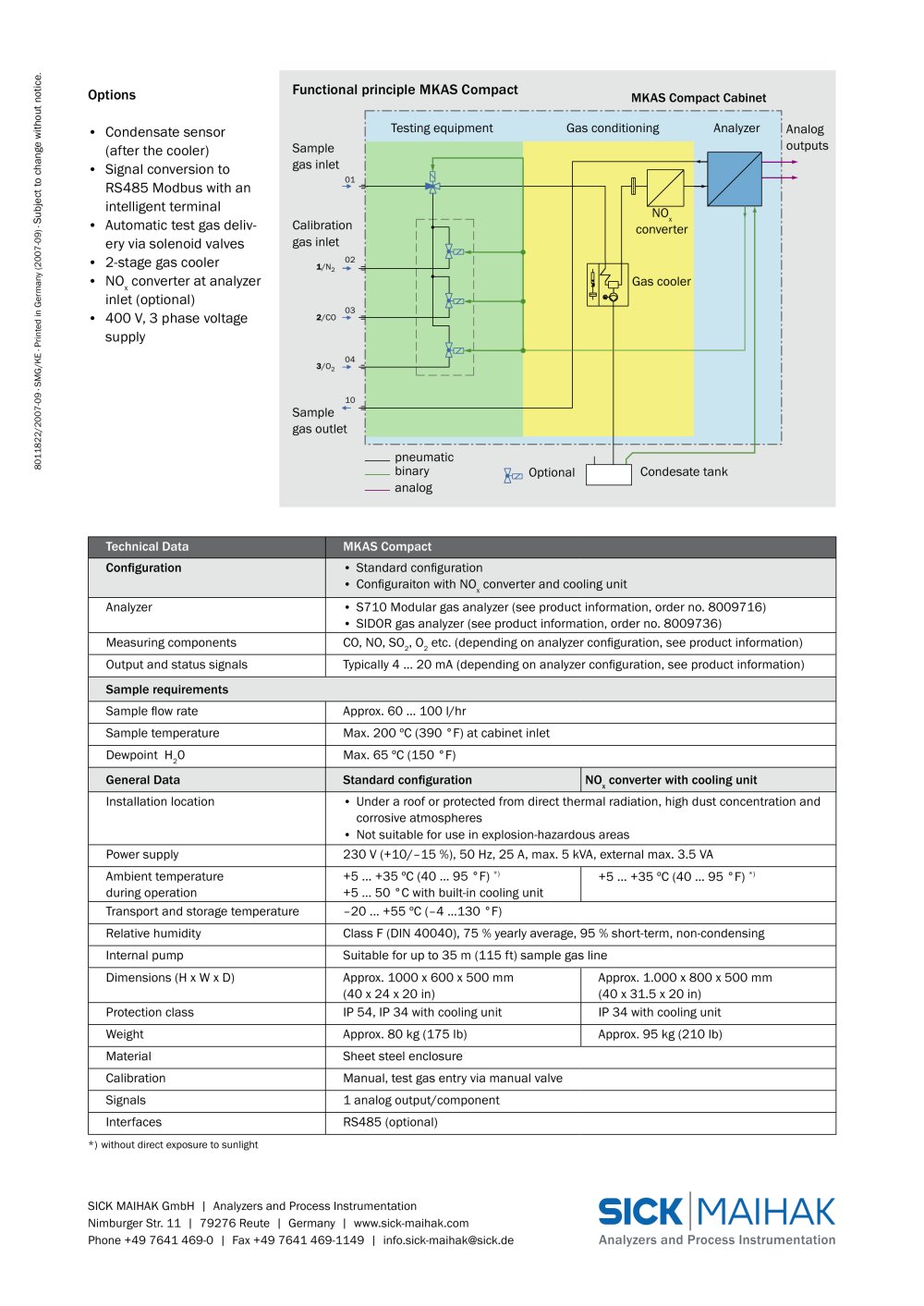

Analyzers and Process Instrumentation 01 02 03 04 10 1/N2 2/CO 3/O2 SICK MAIHAK GmbH | Analyzers and Process Instrumentation Nimburger Str. 11 | 79276 Reute | Germany | www.sick-maihak.com Phone +49 7641 469-0 | Fax +49 7641 469-1149 | info.sick-maihak@sick.de 8011822/2007-09 · SMG/KE · Printed in Germany (2007-09) · Subject to change without notice. Functional principle MKAS Compact MKAS Compact Cabinet Testing equipment Gas conditioning Analyzer Sample gas inlet Sample gas outlet Calibration gas inlet pneumatic binary analog Options • Condensate sensor (after the cooler) • Signal conversion to RS485 Modbus with an intelligent terminal • Automatic test gas delivery via solenoid valves • 2-stage gas cooler • NOx converter at analyzer inlet (optional) • 400 V, 3 phase voltage supply Gas cooler Optional Analog outputs Technical Data MKAS Compact Configuration • Standard configuration • Configuraiton with NOx converter and cooling unit Analyzer • S710 Modular gas analyzer (see product information, order no. 8009716) • SIDOR gas analyzer (see product information, order no. 8009736) Measuring components CO, NO, SO2, O2 etc. (depending on analyzer configuration, see product information) Output and status signals Typically 4 … 20 mA (depending on analyzer configuration, see product information) Sample requirements Sample flow rate Approx. 60 … 100 l/hr Sample temperature Max. 200 ºC (390 °F) at cabinet inlet Dewpoint H20 Max. 65 ºC (150 °F) General Data Standard configuration NOx converter with cooling unit Installation location • Under a roof or protected from direct thermal radiation, high dust concentration and corrosive atmospheres • Not suitable for use in explosion-hazardous areas Power supply 230 V (+10/–15 %), 50 Hz, 25 A, max. 5 kVA, external max. 3.5 VA Ambient temperature during operation +5 ... +35 ºC (40 … 95 °F) *) +5 … 50 °C with built-in cooling unit +5 ... +35 ºC (40 … 95 °F) *) Transport and storage temperature –20 ... +55 ºC (–4 …130 °F) Relative humidity Class F (DIN 40040), 75 % yearly average, 95 % short-term, non-condensing Internal pump Suitable for up to 35 m (115 ft) sample gas line Dimensions (H x W x D) Approx. 1000 x 600 x 500 mm (40 x 24 x 20 in) Approx. 1.000 x 800 x 500 mm (40 x 31.5 x 20 in) Protection class IP 54, IP 34 with cooling unit IP 34 with cooling unit Weight Approx. 80 kg (175 lb) Approx. 95 kg (210 lb) Material Sheet steel enclosure Calibration Manual, test gas entry via manual valve Signals 1 analog output/component Interfaces RS485 (optional) *) without direct exposure to sunlight NOx converter Condesate tank
