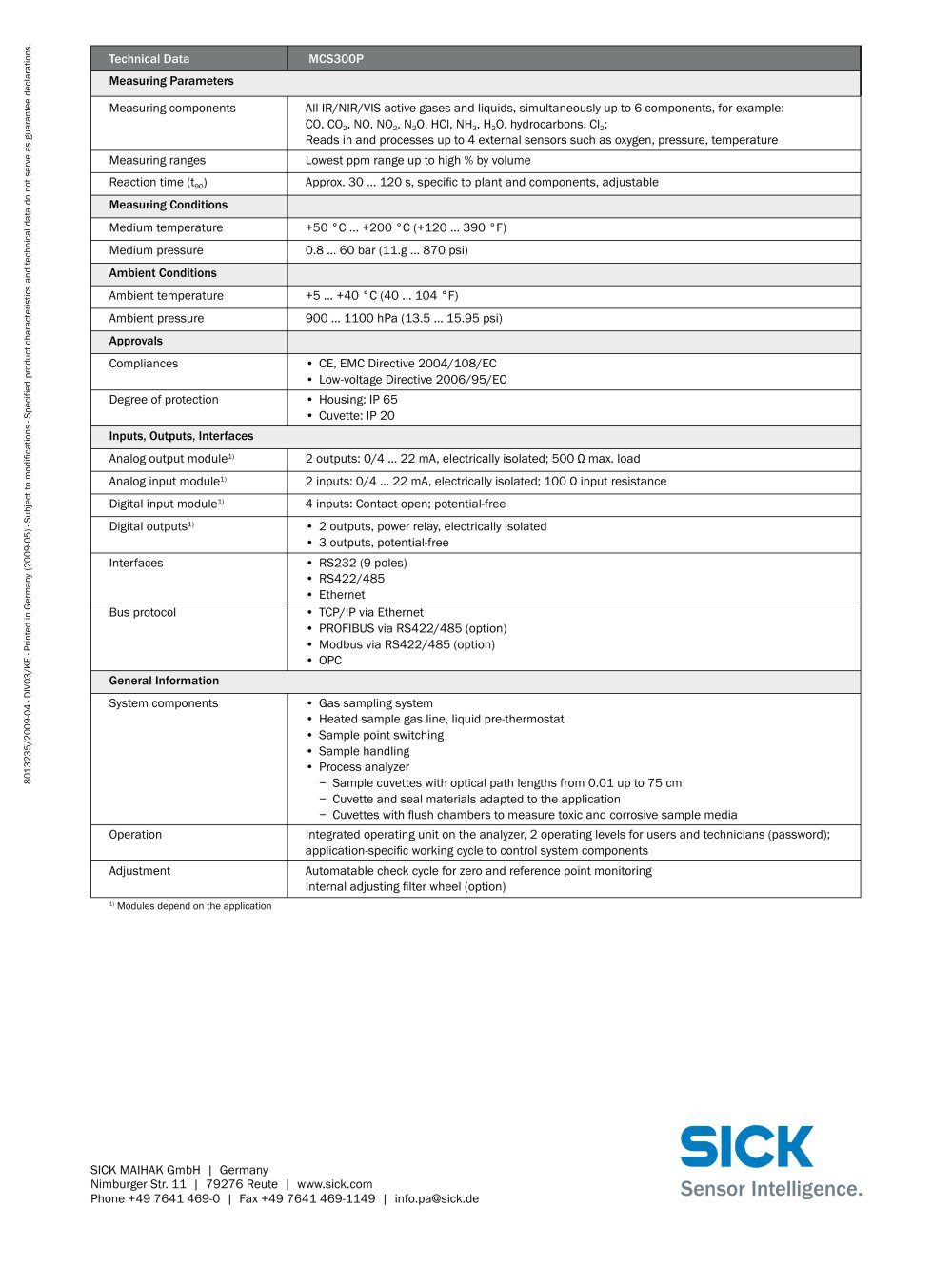

Technical Data MCS300P Measuring Parameters Measuring components All IR/NIR/VIS active gases and liquids, simultaneously up to 6 components, for example: CO, CO2, NO, NO2, N2O, HCl, NH3, H2O, hydrocarbons, Cl2; Reads in and processes up to 4 external sensors such as oxygen, pressure, temperature Measuring ranges Lowest ppm range up to high % by volume Reaction time (t90) Approx. 30 ... 120 s, specific to plant and components, adjustable Measuring Conditions Medium temperature +50 °C ... +200 °C (+120 ... 390 °F) Medium pressure 0.8 … 60 bar (11.g ... 870 psi) Ambient Conditions Ambient temperature +5 … +40 °C (40 ... 104 °F) Ambient pressure 900 … 1100 hPa (13.5 ... 15.95 psi) Approvals Compliances • CE, EMC Directive 2004/108/EC • Low-voltage Directive 2006/95/EC Degree of protection • Housing: IP 65 • Cuvette: IP 20 Inputs, Outputs, Interfaces Analog output module1) 2 outputs: 0/4 … 22 mA, electrically isolated; 500 Ù max. load Analog input module1) 2 inputs: 0/4 … 22 mA, electrically isolated; 100 Ù input resistance Digital input module1) 4 inputs: Contact open; potential-free Digital outputs1) • 2 outputs, power relay, electrically isolated • 3 outputs, potential-free Interfaces • RS232 (9 poles) • RS422/485 • Ethernet Bus protocol • TCP/IP via Ethernet • Profibus via RS422/485 (option) • Modbus via RS422/485 (option) • OPC General Information System components • Gas sampling system • Heated sample gas line, liquid pre-thermostat • Sample point switching • Sample handling • Process analyzer -- Sample cuvettes with optical path lengths from 0.01 up to 75 cm -- Cuvette and seal materials adapted to the application -- Cuvettes with flush chambers to measure toxic and corrosive sample media Operation Integrated operating unit on the analyzer, 2 operating levels for users and technicians (password); application-specific working cycle to control system components Adjustment Automatable check cycle for zero and reference point monitoring Internal adjusting filter wheel (option) 1) Modules depend on the application 8013235/2009-04 · DIV03/KE · Printed in Germany (2009-05) · Subject to modifications · Specified product characteristics and technical data do not serve as guarantee declarations. SICK MAIHAK GmbH | Germany Nimburger Str. 11 | 79276 Reute | www.sick.com Phone +49 7641 469-0 | Fax +49 7641 469-1149 | info.pa@sick.de
