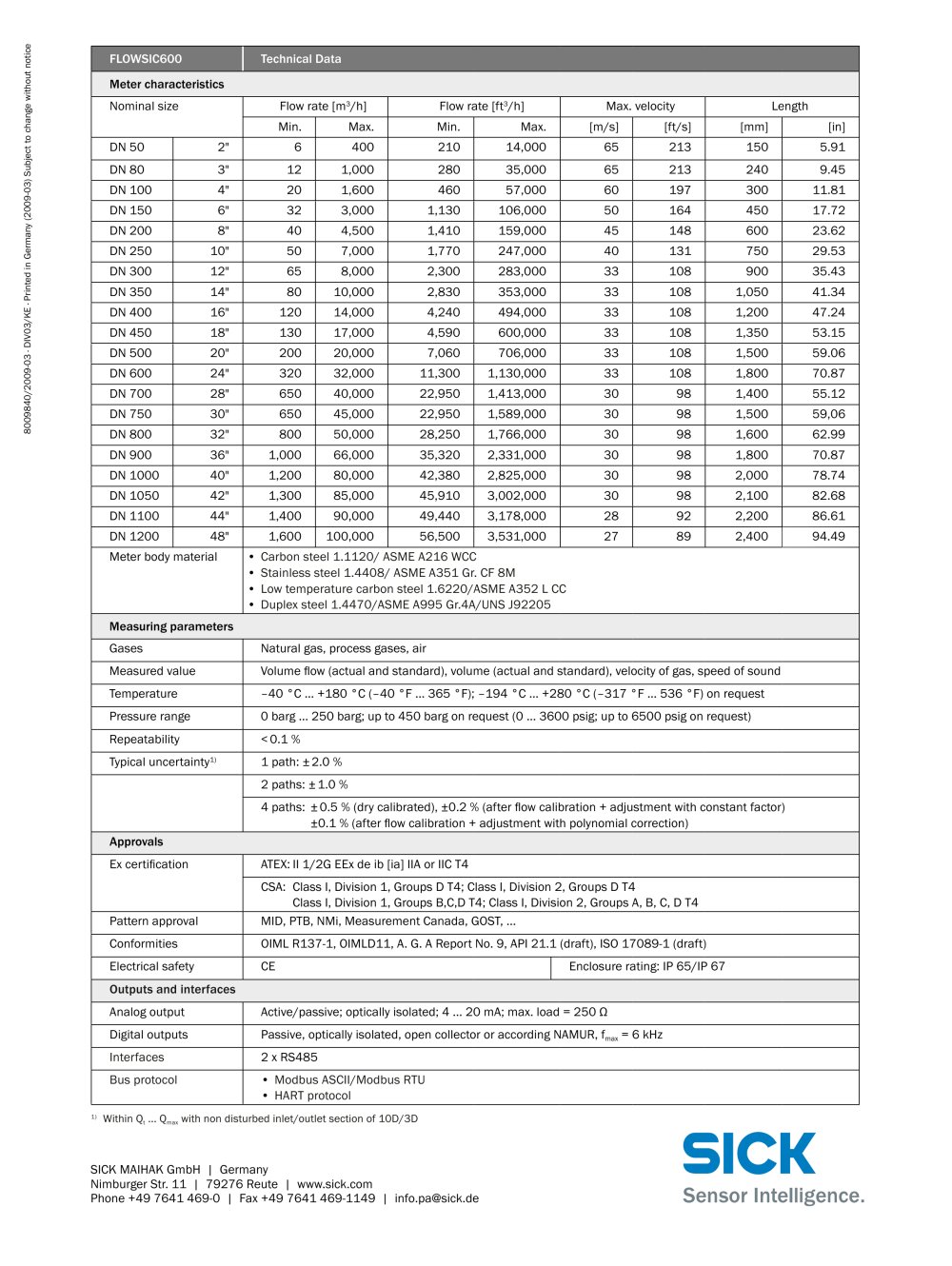

8009840/2009-03 · DIV03/KE · Printed in Germany (2009-03) Subject to change without notice FLOWSIC600 Technical Data Meter characteristics Nominal size Flow rate [m3/h] Flow rate [ft3/h] Max. velocity Length Min. Max. Min. Max. [m/s] [ft/s] [mm] [in] DN 50 2" 6 400 210 14,000 65 213 150 5.91 DN 80 3" 12 1,000 280 35,000 65 213 240 9.45 DN 100 4" 20 1,600 460 57,000 60 197 300 11.81 DN 150 6" 32 3,000 1,130 106,000 50 164 450 17.72 DN 200 8" 40 4,500 1,410 159,000 45 148 600 23.62 DN 250 10" 50 7,000 1,770 247,000 40 131 750 29.53 DN 300 12" 65 8,000 2,300 283,000 33 108 900 35.43 DN 350 14" 80 10,000 2,830 353,000 33 108 1,050 41.34 DN 400 16" 120 14,000 4,240 494,000 33 108 1,200 47.24 DN 450 18" 130 17,000 4,590 600,000 33 108 1,350 53.15 DN 500 20" 200 20,000 7,060 706,000 33 108 1,500 59.06 DN 600 24" 320 32,000 11,300 1,130,000 33 108 1,800 70.87 DN 700 28" 650 40,000 22,950 1,413,000 30 98 1,400 55.12 DN 750 30" 650 45,000 22,950 1,589,000 30 98 1,500 59,06 DN 800 32" 800 50,000 28,250 1,766,000 30 98 1,600 62.99 DN 900 36" 1,000 66,000 35,320 2,331,000 30 98 1,800 70.87 DN 1000 40" 1,200 80,000 42,380 2,825,000 30 98 2,000 78.74 DN 1050 42" 1,300 85,000 45,910 3,002,000 30 98 2,100 82.68 DN 1100 44" 1,400 90,000 49,440 3,178,000 28 92 2,200 86.61 DN 1200 48" 1,600 100,000 56,500 3,531,000 27 89 2,400 94.49 Meter body material • Carbon steel 1.1120/ ASME A216 WCC • Stainless steel 1.4408/ ASME A351 Gr. CF 8M • Low temperature carbon steel 1.6220/ASME A352 L CC • Duplex steel 1.4470/ASME A995 Gr.4A/UNS J92205 Measuring parameters Gases Natural gas, process gases, air Measured value Volume flow (actual and standard), volume (actual and standard), velocity of gas, speed of sound Temperature –40 °C ... +180 °C (–40 °F ... 365 °F); –194 °C ... +280 °C (–317 °F ... 536 °F) on request Pressure range 0 barg ... 250 barg; up to 450 barg on request (0 ... 3600 psig; up to 6500 psig on request) Repeatability < 0.1 % Typical uncertainty1) 1 path: ± 2.0 % 2 paths: ± 1.0 % 4 paths: ± 0.5 % (dry calibrated), ±0.2 % (after flow calibration + adjustment with constant factor) ±0.1 % (after flow calibration + adjustment with polynomial correction) Approvals Ex certification ATEX: II 1/2G EEx de ib [ia] IIA or IIC T4 CSA: Class I, Division 1, Groups D T4; Class I, Division 2, Groups D T4 Class I, Division 1, Groups B,C,D T4; Class I, Division 2, Groups A, B, C, D T4 Pattern approval MID, PTB, NMi, Measurement Canada, GOST, ... Conformities OIML R137-1, OIMLD11, A. G. A Report No. 9, API 21.1 (draft), ISO 17089-1 (draft) Electrical safety CE Enclosure rating: IP 65/IP 67 Outputs and interfaces Analog output Active/passive; optically isolated; 4 ... 20 mA; max. load = 250 Ù Digital outputs Passive, optically isolated, open collector or according NAMUR, fmax = 6 kHz Interfaces 2 x RS485 Bus protocol • Modbus ASCII/Modbus RTU • HART protocol 1) Within Qt ... Qmax with non disturbed inlet/outlet section of 10D/3D SICK MAIHAK GmbH | Germany Nimburger Str. 11 | 79276 Reute | www.sick.com Phone +49 7641 469-0 | Fax +49 7641 469-1149 | info.pa@sick.de
