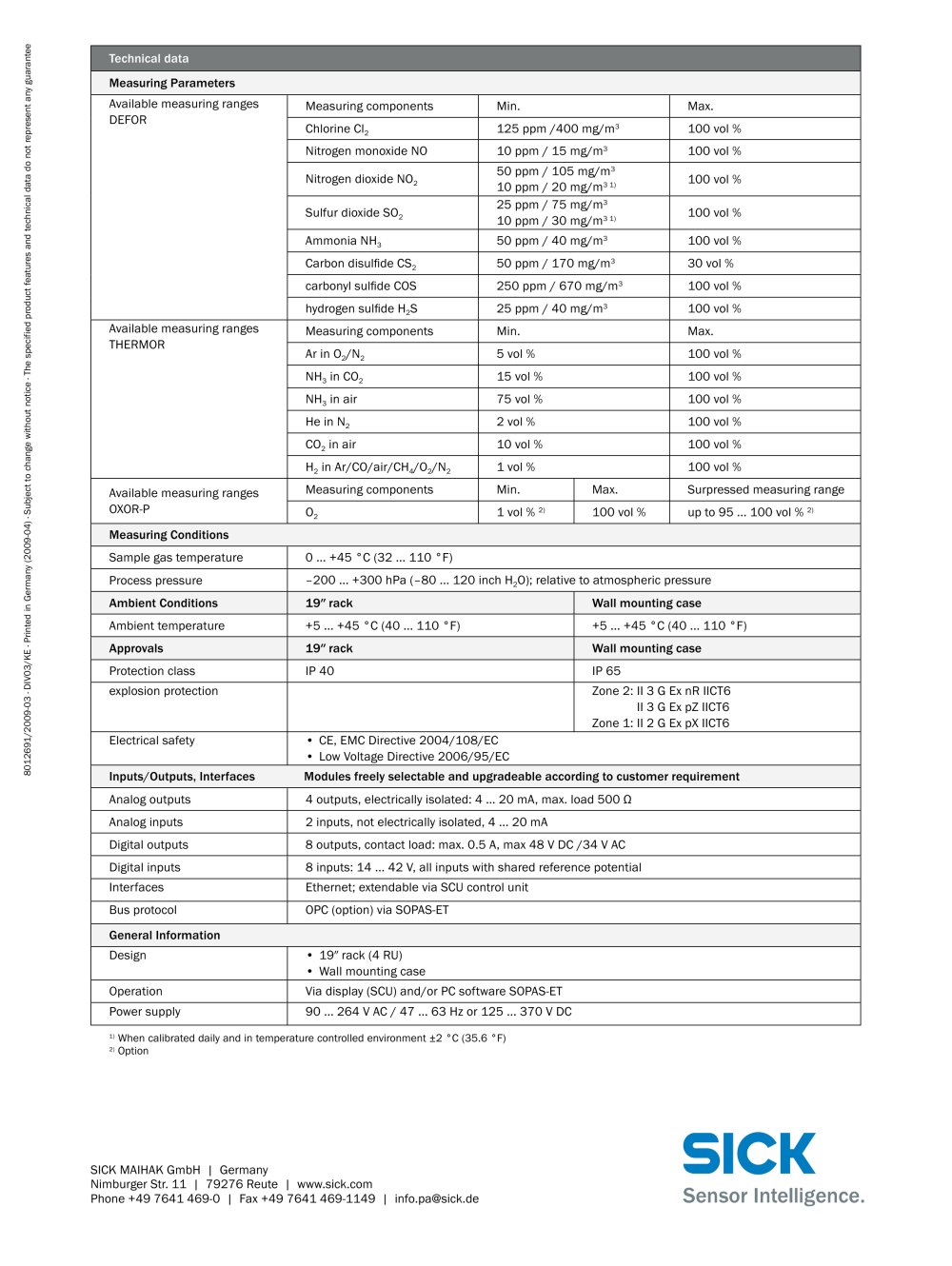

8012691/2009-03 · DIV03/KE · Printed in Germany (2009-04) · Subject to change without notice · The specified product features and technical data do not represent any guarantee Technical data Measuring Parameters Available measuring ranges DEFOR Measuring components Min. Max. Chlorine Cl2 125 ppm /400 mg/m3 100 vol % Nitrogen monoxide NO 10 ppm / 15 mg/m3 100 vol % Nitrogen dioxide NO2 50 ppm / 105 mg/m3 10 ppm / 20 mg/m3 1) 100 vol % Sulfur dioxide SO2 25 ppm / 75 mg/m3 10 ppm / 30 mg/m3 1) 100 vol % Ammonia NH3 50 ppm / 40 mg/m3 100 vol % Carbon disulfide CS2 50 ppm / 170 mg/m3 30 vol % carbonyl sulfide COS 250 ppm / 670 mg/m3 100 vol % hydrogen sulfide H2S 25 ppm / 40 mg/m3 100 vol % Available measuring ranges THERMOR Measuring components Min. Max. Ar in O2/N2 5 vol % 100 vol % NH3 in CO2 15 vol % 100 vol % NH3 in air 75 vol % 100 vol % He in N2 2 vol % 100 vol % CO2 in air 10 vol % 100 vol % H2 in Ar/CO/air/CH4/O2/N2 1 vol % 100 vol % Available measuring ranges OXOR-P Measuring components Min. Max. Surpressed measuring range O2 1 vol % 2) 100 vol % up to 95 ... 100 vol % 2) Measuring Conditions Sample gas temperature 0 ... +45 °C (32 ... 110 °F) Process pressure –200 ... +300 hPa (–80 ... 120 inch H2O); relative to atmospheric pressure Ambient Conditions 19�� rack Wall mounting case Ambient temperature +5 ... +45 °C (40 ... 110 °F) +5 ... +45 °C (40 ... 110 °F) Approvals 19�� rack Wall mounting case Protection class IP 40 IP 65 explosion protection Zone 2: II 3 G Ex nR IICT6 II 3 G Ex pZ IICT6 Zone 1: II 2 G Ex pX IICT6 Electrical safety • CE, EMC Directive 2004/108/EC • Low Voltage Directive 2006/95/EC Inputs/Outputs, Interfaces M odules freely selectable and upgradeable according to customer requirement Analog outputs 4 outputs, electrically isolated: 4 … 20 mA, max. load 500 Ù Analog inputs 2 inputs, not electrically isolated, 4 ... 20 mA Digital outputs 8 outputs, contact load: max. 0.5 A, max 48 V DC /34 V AC Digital inputs 8 inputs: 14 ... 42 V, all inputs with shared reference potential Interfaces Ethernet; extendable via SCU control unit Bus protocol OPC (option) via SOPAS-ET General Information Design • 19�� rack (4 RU) • Wall mounting case Operation Via display (SCU) and/or PC software SOPAS-ET Power supply 90 ... 264 V AC / 47 ... 63 Hz or 125 ... 370 V DC 1) When calibrated daily and in temperature controlled environment ±2 °C (35.6 °F) 2) Option SICK MAIHAK GmbH | Germany Nimburger Str. 11 | 79276 Reute | www.sick.com Phone +49 7641 469-0 | Fax +49 7641 469-1149 | info.pa@sick.de
