Catalog excerpts

3D cameras-1

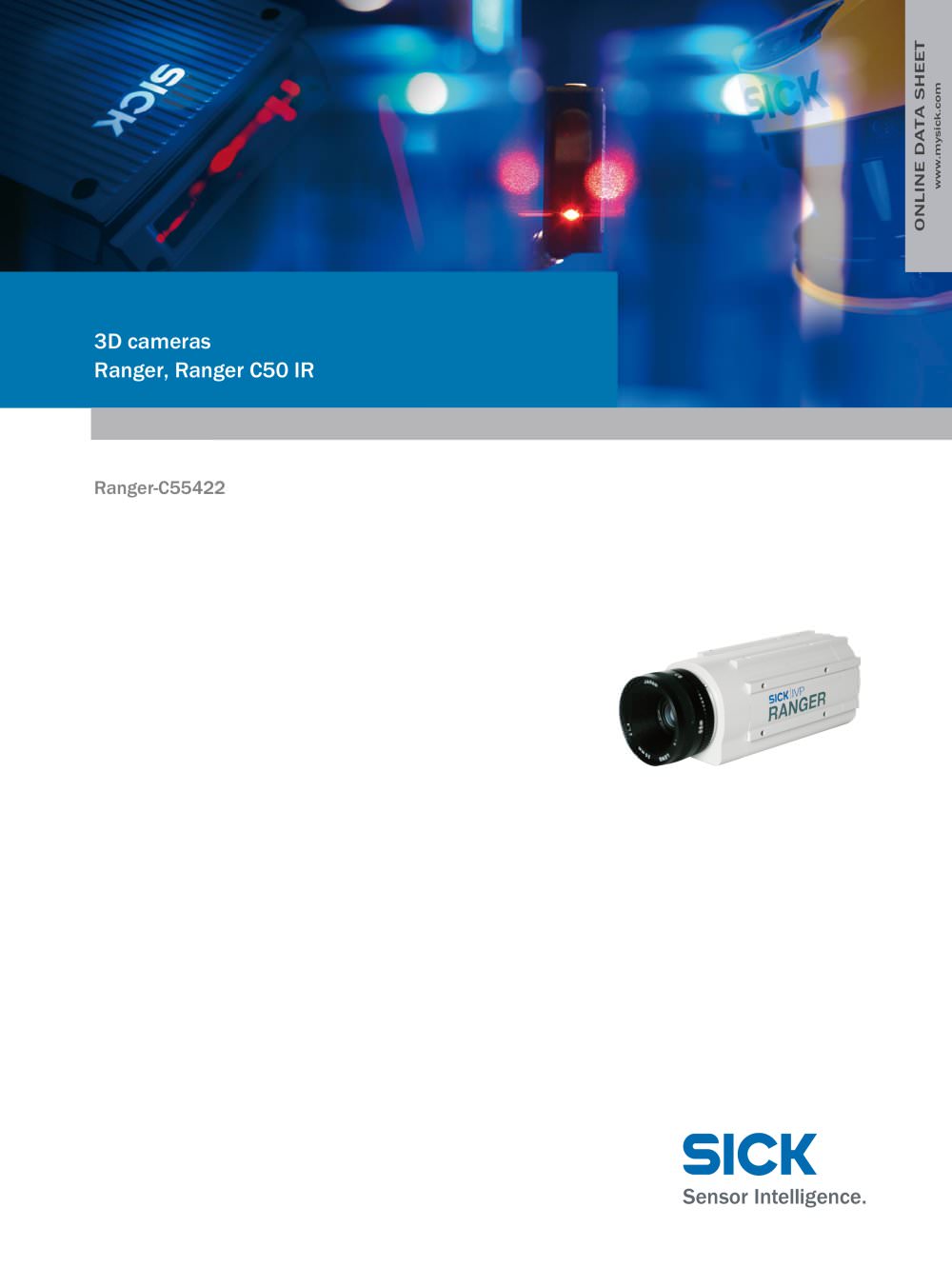

ONLINE DATA SHEET www.mysick.com 3D cameras Ranger, Ranger C50 IR Ranger-C55422

 Open the catalog to page 1
3D cameras-2

3D camerasAAAAAAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAAAAAAA5/16/2011 9:27:10 AM 3D cameras Ranger, Ranger C50 IR Model Name > Ranger-C55422 Part No. > 1014224 At a glance • 3D shape inspection at up to 30,000 profiles / s • In-machine 3D calibration tool • MultiScan technology to measure 3D, contrast, and scatter at the same time • Sensor resolutions of up to 1,536 pixels in 3D and 3,072 pixels in gray scale • Full flexibility in configuration, working distance, and field of view • C and C++ APIs for software integration • Easy to integrate via CameraLink interface...

 Open the catalog to page 2
3D cameras-3

3D camerasAAAAAAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAAAAAAA5/16/2011 9:27:10 AM 1) Non-condensing Bit depth: 8 bit Spectral response: approx. 400 ... 950 Image sensor: CMOS Maximum performance: 30,000 fps 3D profiles/second Sensor resolution: 1,536 px x 512 px 3D profile resolution: 1,536 px Gray line resolution: 1,536 px Scatter resolution: 1,536 px Pixel size: 9.5 ìm x 9.5 ìm Pixel matrix fill factor: 60 % Maximum 3D height resolution: 13 bits 1/16 pixel Optical center (row, column): (227, 768) (Valid for both the pixel matrix and the high-resolution rows) IR...

 Open the catalog to page 3
3D cameras-4

3D camerasAAAAAAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAAAAAAA5/16/2011 9:27:10 AM Dimensional drawing, side view Dimensional drawing, front / back view

 Open the catalog to page 4
3D cameras-5

3D camerasAAAAAAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAAAAAAA5/16/2011 9:27:10 AM Connection type Characteristic curves Connection diagram

 Open the catalog to page 5
3D cameras-6

SICK AG | Waldkirch | Germany | www.sick.com USmod 4c int35 Australia Phone +61 3 9497 4100 1800 33 48 02 – tollfree E-Mail [email protected] Belgium/Luxembourg Phone +32 (0)2 466 55 66 E-Mail [email protected] Brasil Phone +55 11 3215-4900 E-Mail [email protected] Ceská Republika Phone +420 2 57 91 18 50 E-Mail [email protected] China Phone +852-2763 6966 E-Mail [email protected] Danmark Phone +45 45 82 64 00 E-Mail [email protected] Deutschland Phone +49 211 5301-301 E-Mail [email protected] España Phone +34 93 480 31 00 E-Mail [email protected] France Phone +33 1 64 62 35 00 E-Mail [email protected] Great Britain...

 Open the catalog to page 6
