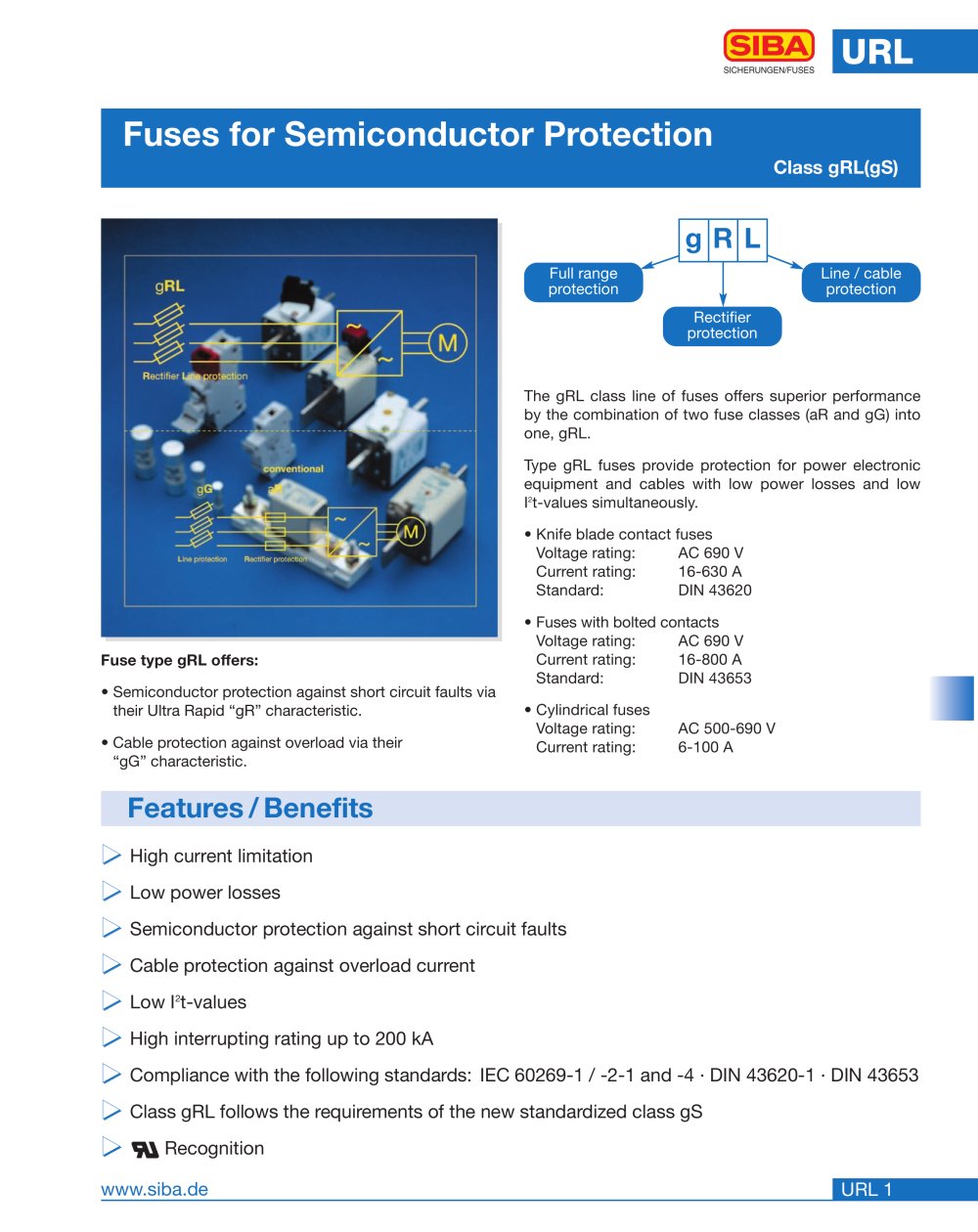

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:14.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:16.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:18.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:27.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:35.00pt "Franklin Gothic Medium", sans-serif; } Fuses for Semiconductor Protection Class gRL(gS) Rectifier protection The gRL class line of fuses otfers superior performance by the combination of two fuse classes (aR and gG) into one. gRL. Type gRL fuses provide protection for power electronic equipment and cables with low power losses and low l't-values simultaneously. • Knife blade contact fuses Voltage rating: AC690V Current rating: 16-630 A Standard: DIN 43620 • Fuses with bolted contacts Voltage rating: AC690 V Current rating: 16-8O0 A Standard: DIN 43653 Fuse type gRL otfers: • Semiconductor protection against short circuit taults via their Ultra Rapid "gR" characteristic. • Cable protection against overload via their "gG" characteristic. Cylindrical fuses Voltage rating: Current rating: AC 500-690 V 6-100 A Features / Benefits > High current limitation Low power losses > Semiconductor protection against short circuit faults Cable protection against overload current Low l!t-values High interrupting rating up to 200 kA Compliance with the following standards: IEC 60269-1 / -2-1 and -4 • DIN 43620-1 • DIN 43653 Class gRL follows the requirements of the new standardized class gS W Récognition www.siba.de URL 1
