RV/Marine

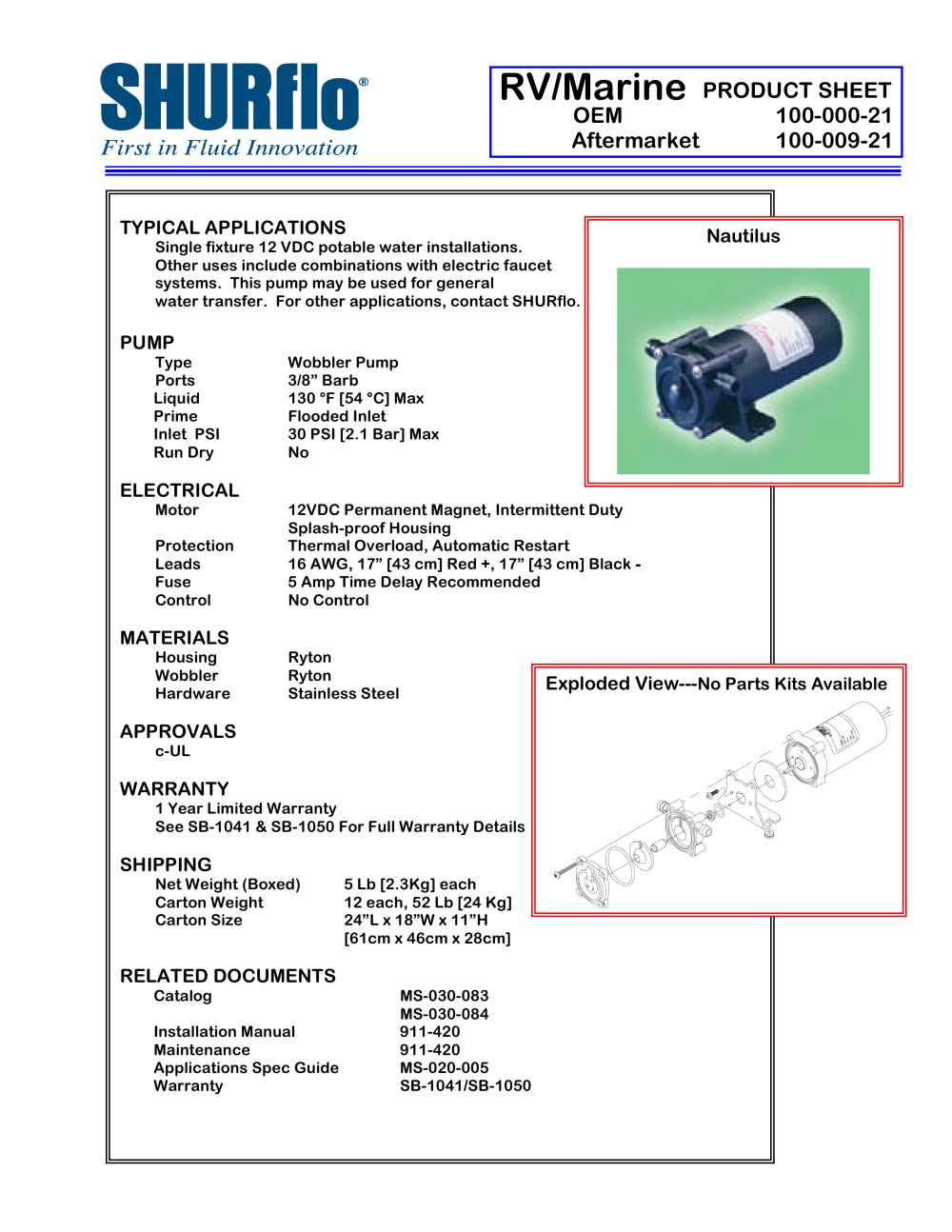

PRODUCT SHEET OEM 100-000-21 Aftermarket 100-009-21

TYPICAL APPLICATIONS
Single fixture 12 VDC potable water installations. Other uses include combinations with electric faucet systems. This pump may be used for general water transfer. For other applications, contact SHURflo. Nautilus PUMP
Type Wobbler Pump Ports 3/8” Barb Liquid 130 °F [54 °C] Max Prime Flooded Inlet Inlet PSI 30 PSI [2.1 Bar] Max Run Dry No ELECTRICAL
Motor 12VDC Permanent magnetic, Intermittent Duty Splash-proof Housing Protection Thermal Overload, Automatic Restart Leads 16 AWG, 17” [43 cm] Red +, 17” [43 cm] Black ---- Fuse 5 Amp Time Delay Recommended Control No Control MATERIALS
Housing Ryton Wobbler Ryton Hardware Stainless Steel Exploded View---
No Parts Kits Available APPROVALS
c-UL WARRANTY
1 Year Limited Warranty See SB-1041 & SB-1050 For Full Warranty Details SHIPPING
Net Weight (Boxed) 5 Lb [2.3Kg] each Carton Weight 12 each, 52 Lb [24 Kg] Carton Size 24”L x 18”W x 11”H [61cm x 46cm x 28cm] RELATED DOCUMENTS
Catalog MS-030-083 MS-030-084 Installation Manual 911-420 Maintenance 911-420 Applications Spec Guide MS-020-005 Warranty SB-1041/SB-1050
