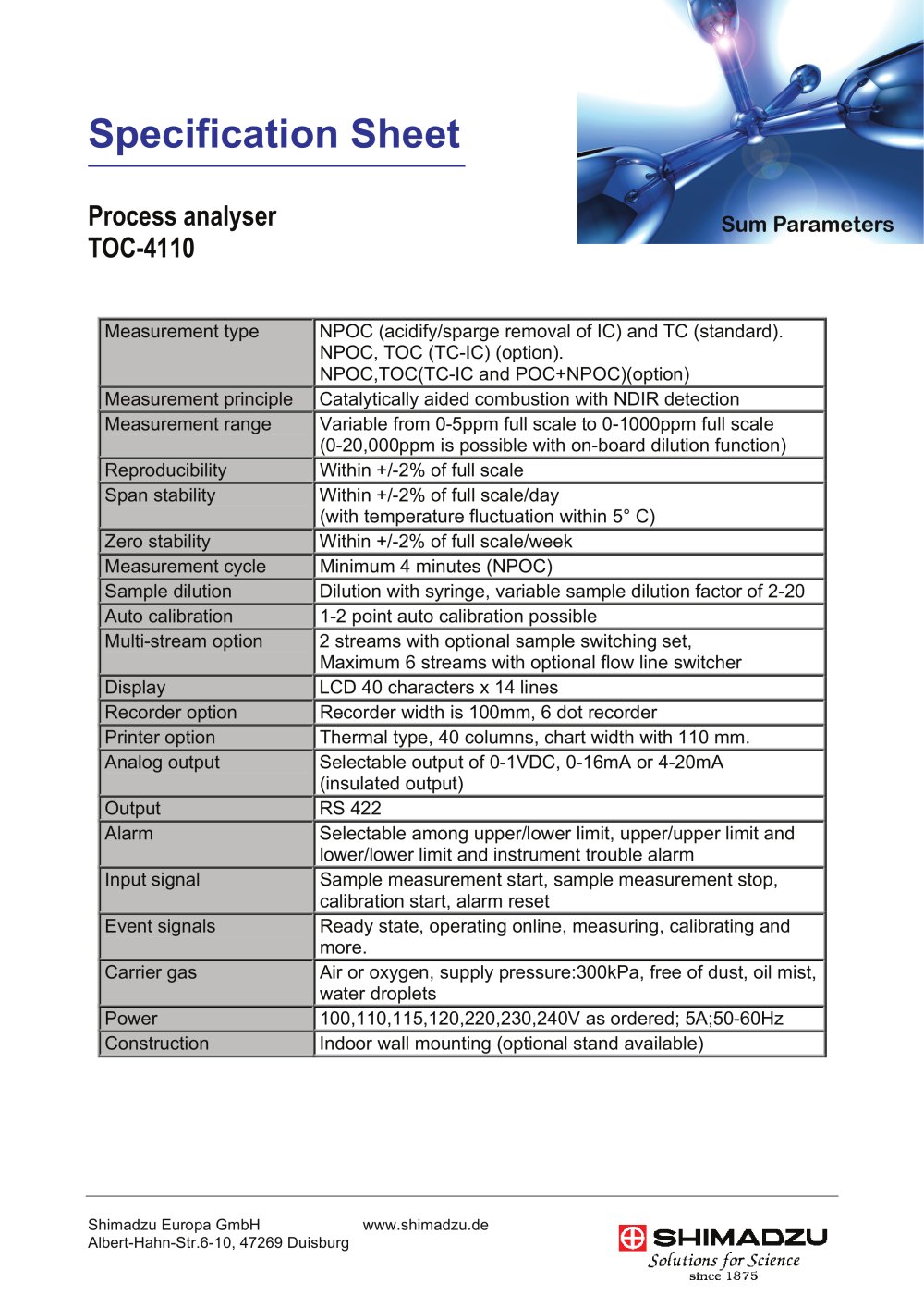

Specification Sheet Process analyser TOC-4110 Measurement type NPOC (acidify/sparge removal of IC) and TC (standard). NPOC, TOC (TC-IC) (option). NPOC,TOC(TC-IC and POC+NPOC)(option) Measurement principle Catalytically aided combustion with NDIR detection Measurement range Variable from 0-5ppm full scale to 0-1000ppm full scale (0-20,000ppm is possible with on-board dilution function) Reproducibility Within +/-2% of full scale Span stability Within +/-2% of full scale/day (with temperature fluctuation within 5° C) Zero stability Within +/-2% of full scale/week Measurement cycle Minimum 4 minutes (NPOC) Sample dilution Dilution with syringe, variable sample dilution factor of 2-20 Auto calibration 1-2 point auto calibration possible Multi-stream option 2 streams with optional sample switching set, Maximum 6 streams with optional flow line switcher Display LCD 40 characters x 14 lines Recorder option Recorder width is 100mm, 6 dot recorder Printer option Thermal type, 40 columns, chart width with 110 mm. Analog output Selectable output of 0-1VDC, 0-16mA or 4-20mA (insulated output) Output RS 422 Alarm Selectable among upper/lower limit, upper/upper limit and lower/lower limit and instrument trouble alarm Input signal Sample measurement start, sample measurement stop, calibration start, alarm reset Event signals Ready state, operating online, measuring, calibrating and more. Carrier gas Air or oxygen, supply pressure:300kPa, free of dust, oil mist, water droplets Power 100,110,115,120,220,230,240V as ordered; 5A;50-60Hz Construction Indoor wall mounting (optional stand available) Shimadzu Europa GmbH www.shimadzu.de Albert-Hahn-Str.6-10, 47269 Duisburg
