Semi-Micro/Analytical Balance AUW-D-Series
8Pages

{{requestButtons}}

Catalog excerpts

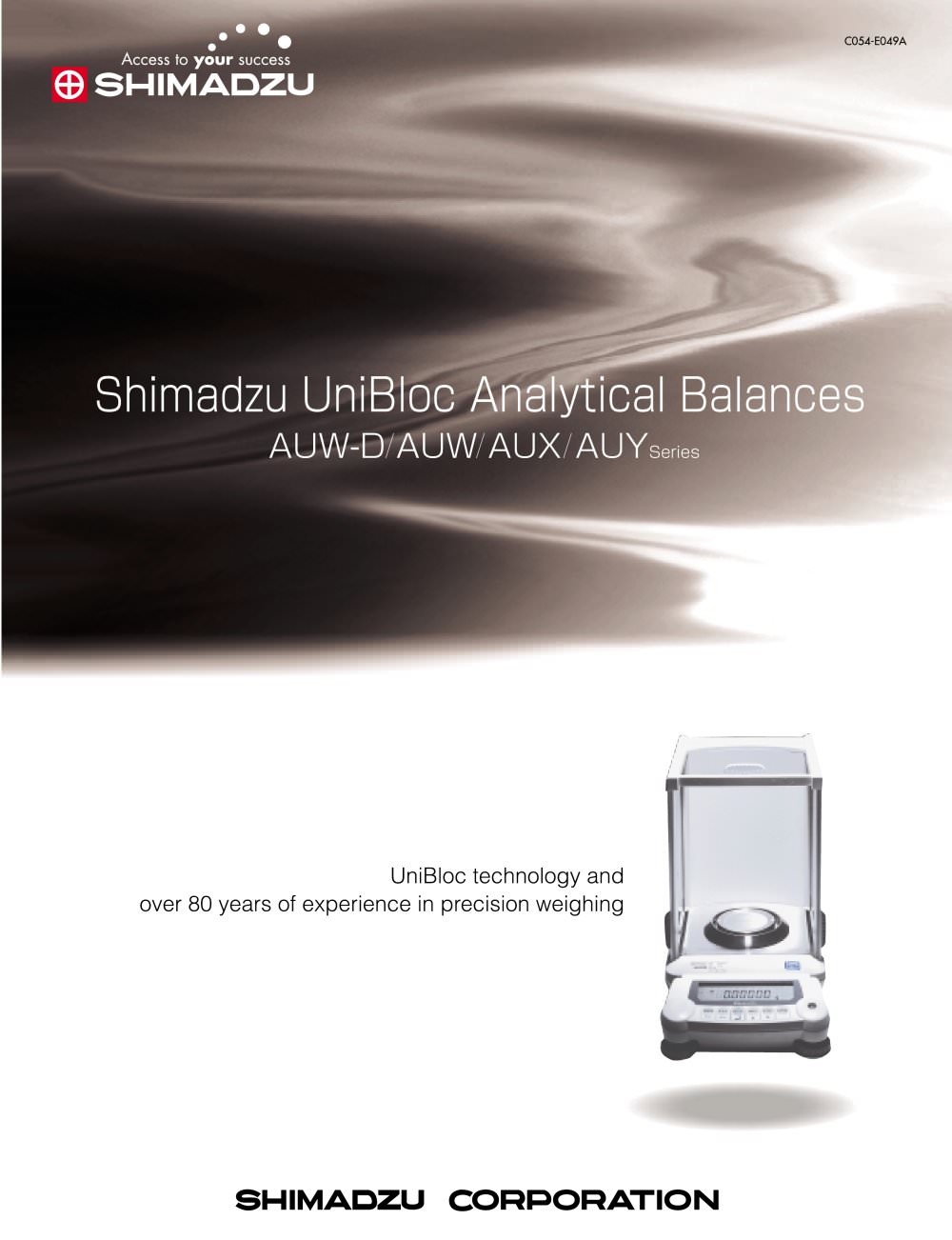

Semi-Micro/Analytical Balance AUW-D-Series - 1

Access to your success 0 SHIMADZU nimadzu UniBloc Analytical Balances AUW-D/AUW/AUX/AUYserieS UniBloc technology and over 80 years of exprience in precision weighing SHIMADZU CORPORATION

Open the catalog to page 1
Semi-Micro/Analytical Balance AUW-D-Series - 3

AUW-D/AUW/AUX/AUYseries Shimadzu's UniBloc technology and over 80 years of exprience in precision weighing instruments bring analytical balances to a new level of stability, reliability and response. AUW-D models are the first five-decimal balances with this technology. 2\

Open the catalog to page 3
Semi-Micro/Analytical Balance AUW-D-Series - 4

@3@.. Reliability Stability Response i One piece force cell patented in USA in 1989, No.4799561, in China in 1991, No.12729, in Japan in 1995, first commercially introduced by Shimadzu in 1989 for the precision platform balances EB-K, EB-KW series. Excellent Weighing Performance Measurement Administration Fulcrum spring Pan Parallel-guide Force-point spring Example of calibration Fast Response Compact UniBloc mechanism and digital processing technology produce fast response and stability at Environmental adjustment Microprocessor digital control can be set to automatically provide the most...

Open the catalog to page 4
Semi-Micro/Analytical Balance AUW-D-Series - 5

Automatic Span Calibration Span calibration is essential for accurate measurement in precision weighing to adjust for the effects of even small changes in ambient temperature. AUW-D/AUW/AUX models have a built-in motor driven calibration weight to automate this necessary operation. The balance can be set to take care of the calibration itself, leaving the operator to concentrate on measurement work. Room temperature change Fully-automatic calibration by temperature dtection: PSC Permissible sensitivity error The balance detects variations in the ambient temperature that influence accuracy...

Open the catalog to page 5
Semi-Micro/Analytical Balance AUW-D-Series - 6

@5@.. User-friendly Features Pi User-friendly Weighing Chamber The large dimensions of the weighing chamber allow easy measurement of even tall flasks. Equalization in temperature before measurement is essential in precision weighing. This is easy with the extra space allowing samples to be kept inside the chamber. g WIDE Weighing work is made easy by the smooth door movement.The doors can be detached to allow the chamber to be cleaned with ease and it is also possible to remove,clean or replace the door rail. Easy Level Adjustment Level adjustment, particularly important in installing an...

Open the catalog to page 6
Semi-Micro/Analytical Balance AUW-D-Series - 7

Expanding Possibilities with a Wide Range of Accessories (Optional) Name Specification Elactronic Printer EP-50* Equipped with statistical calculation functions (10 items) and numeric keypad. Uses standard paper. Impact dot print. Electronic Printer EP-50WIN* Equipped with statistical calculation functions (10 items) and numeric keypad. Uses standard paper. Impact dot print. Can be used simultaneously with WindowsDirect function. Electronic Printer EP-60A Equipped with statistical calculation functions (10 items). Uses thermal paper.R Specific Gravity Measurement Kit SMK-401 This kit makes...

Open the catalog to page 7
Semi-Micro/Analytical Balance AUW-D-Series - 8

SHIMADZU DO BRASIL COMERCIO LTDA. Rua Cenno Sbrighi 25-Agua Branca-Sao Paulo-SP-Brazil-CEP 05036- Phone: (55)11-3611-1688 Fax. (55)11-3611-2209 SHIMADZU (HONG KONG) LIMITED Suite 1028 Ocean Center, Harbour City, Tsim Sha Tsui, Kowloon Phone: (852)2375-4979 Fax. (852)2199-7438 Overseas Offices Istanbul, Beijing, Shanghai, Guangzhou, Shenyang, Chengdu, Moscow SHIMADZU CORPORATION. International Marketing Division 3. Kanda-Nishikicho 1-chome, Chiyoda-ku, Tokyo 101-8448, Japan Phone: 81(3)3219-5641 Fax. 81(3)3219-5710 SHIMADZU SCIENTIFIC INSTRUMENTS, INC. 7102 Riverwood Drive, Columbia,...

Open the catalog to page 8
