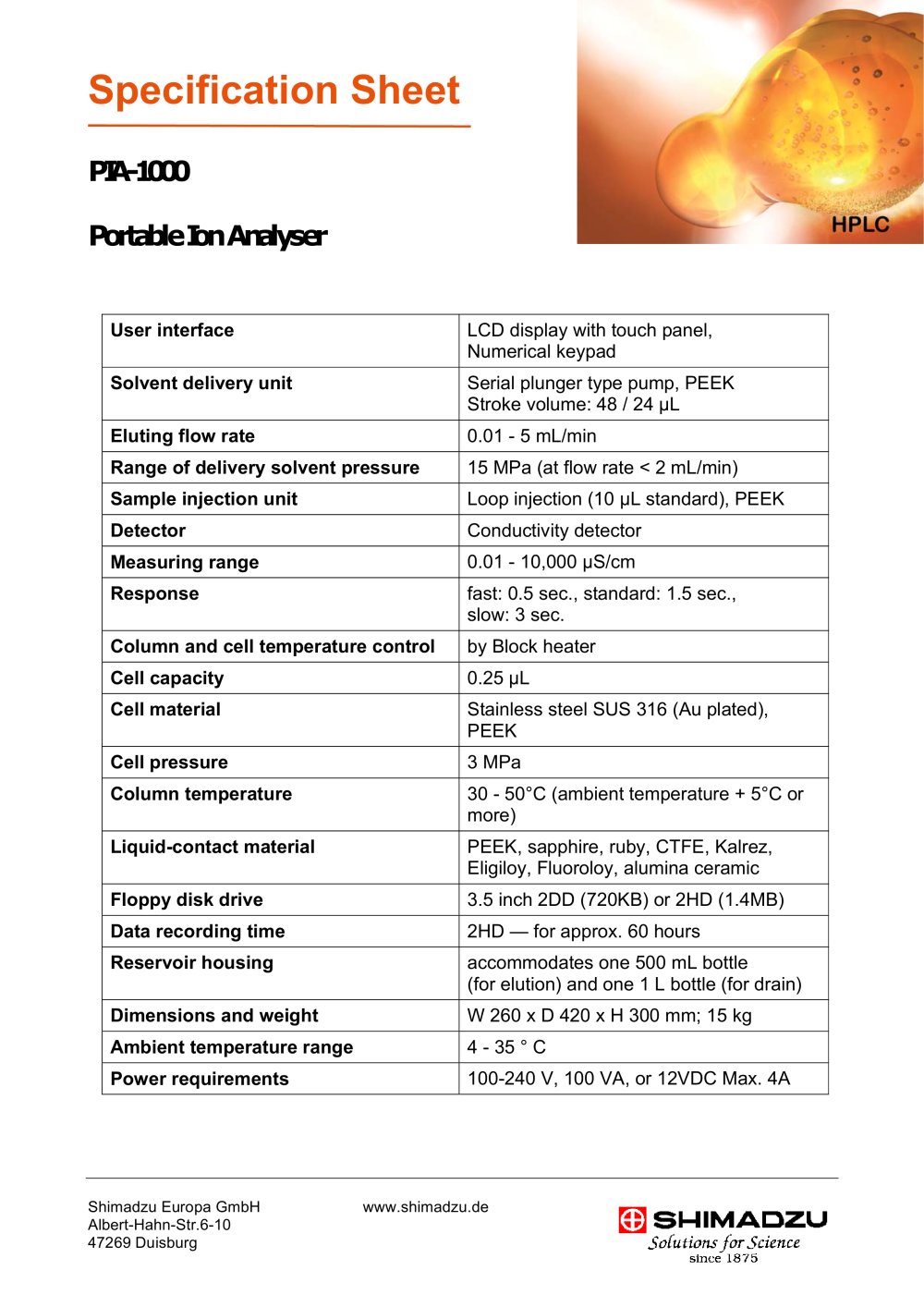

Shimadzu Europa GmbH www.shimadzu.de Albert-Hahn-Str.6-10 47269 Duisburg Specification Sheet PIA-1000 Portable Ion Analyser User interface LCD display with touch panel, Numerical keypad Solvent delivery unit Serial plunger type pump, PEEK Stroke volume: 48 / 24 ìL Eluting flow rate 0.01 - 5 mL/min Range of delivery solvent pressure 15 MPa (at flow rate < 2 mL/min) Sample injection unit Loop injection (10 ìL standard), PEEK Detector Conductivity detector Measuring range 0.01 - 10,000 ìS/cm Response fast: 0.5 sec., standard: 1.5 sec., slow: 3 sec. Column and cell temperature control by Block heater Cell capacity 0.25 ìL Cell material Stainless steel SUS 316 (Au plated), PEEK Cell pressure 3 MPa Column temperature 30 - 50°C (ambient temperature + 5°C or more) Liquid-contact material PEEK, sapphire, ruby, CTFE, Kalrez, Eligiloy, Fluoroloy, alumina ceramic Floppy disk drive 3.5 inch 2DD (720KB) or 2HD (1.4MB) Data recording time 2HD — for approx. 60 hours Reservoir housing accommodates one 500 mL bottle (for elution) and one 1 L bottle (for drain) Dimensions and weight W 260 x D 420 x H 300 mm; 15 kg Ambient temperature range 4 - 35 ° C Power requirements 100-240 V, 100 VA, or 12VDC Max. 4A
