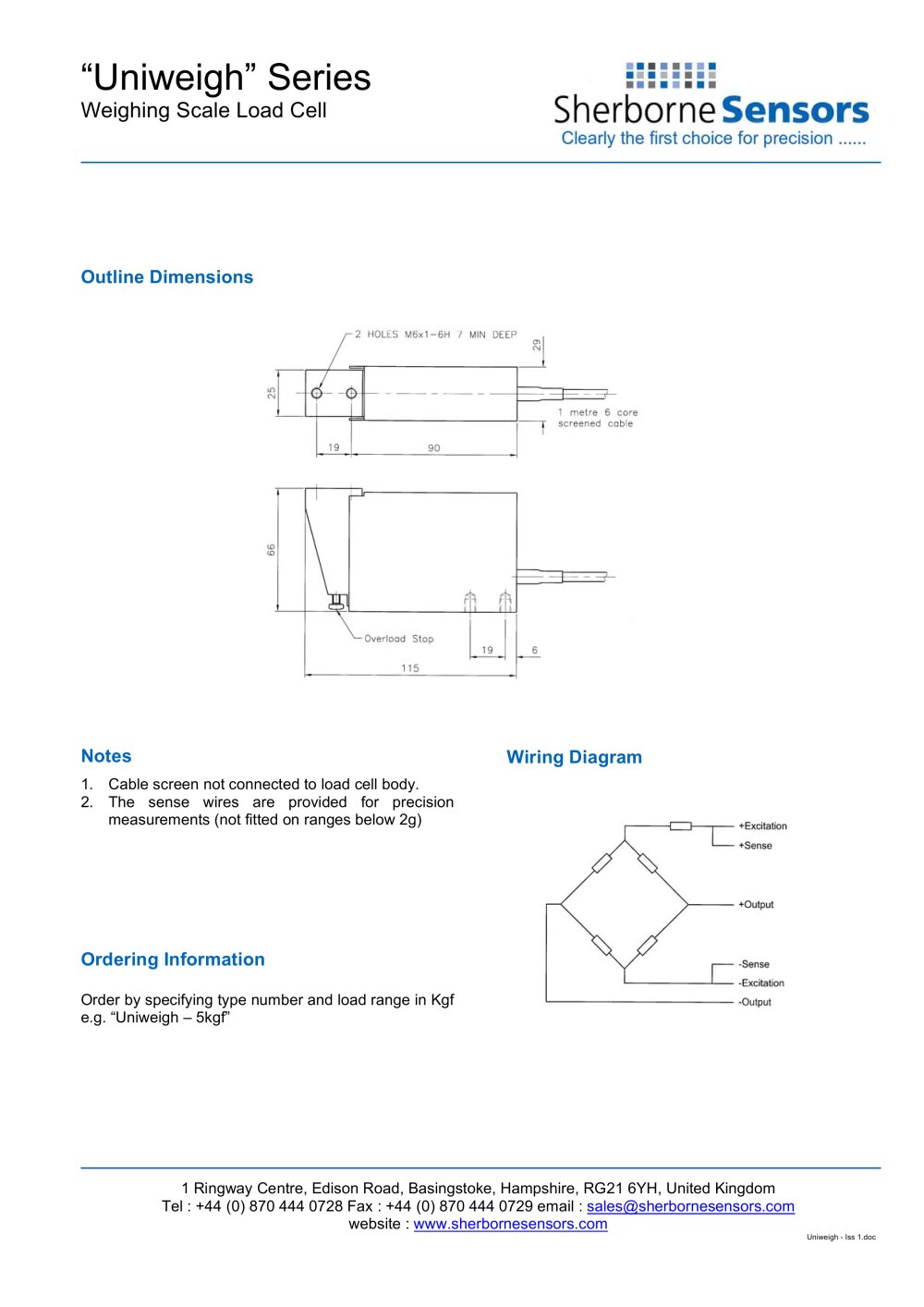

“Uniweigh” Series Weighing Scale Load Cell 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel : +44 (0) 870 444 0728 Fax : +44 (0) 870 444 0729 email : sales@sherbornesensors.com website : www.sherbornesensors.com Uniweigh - Iss 1.doc Outline Dimensions Notes 1. Cable screen not connected to load cell body. 2. The sense wires are provided for precision measurements (not fitted on ranges below 2g) Ordering Information Order by specifying type number and load range in Kgf e.g. “Uniweigh – 5kgf” Wiring Diagram
