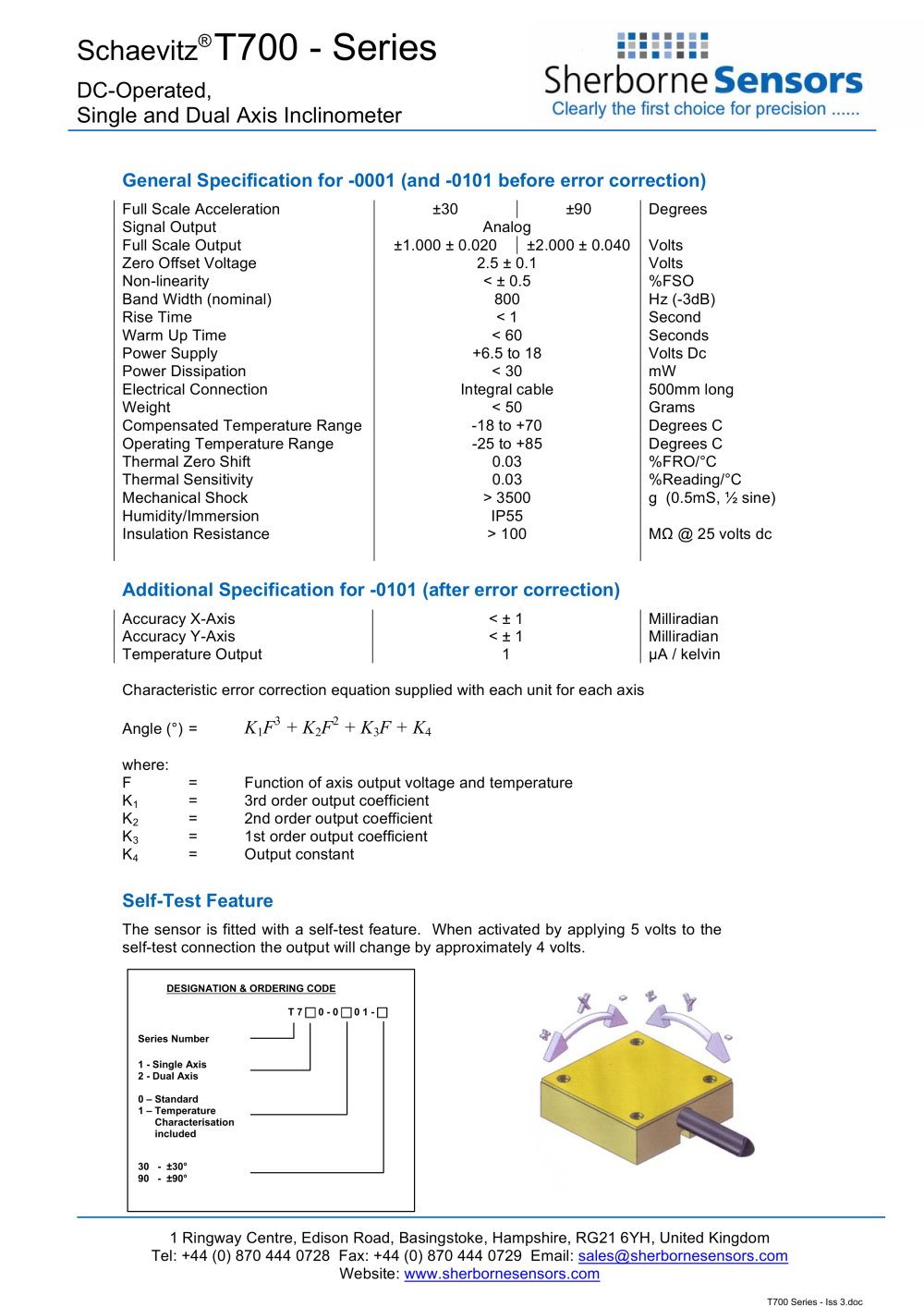

Schaevitz® T700 - Series DC-Operated, Single and Dual Axis Inclinometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com T700 Series - Iss 3.doc T 7 .. 0 - 0 .. 0 1 - .. DESIGNATION & ORDERING CODE Series Number 1 - Single Axis 2 - Dual Axis 30 - ±30° 90 - ±90° 0 – Standard 1 – Temperature Characterisation included General Specification for -0001 (and -0101 before error correction) Full Scale Acceleration ±30 ±90 Degrees Signal Output Analog Full Scale Output ±1.000 ± 0.020 ±2.000 ± 0.040 Volts Zero Offset Voltage 2.5 ± 0.1 Volts Non-linearity 3500 g (0.5mS, ½ sine) Humidity/Immersion IP55 Insulation Resistance > 100 MÙ @ 25 volts dc Additional Specification for -0101 (after error correction) Accuracy X-Axis < ± 1 Milliradian Accuracy Y-Axis < ± 1 Milliradian Temperature Output 1 ìA / kelvin Characteristic error correction equation supplied with each unit for each axis Angle (°) = K1F3 + K2F2 + K3F + K4 where: F = Function of axis output voltage and temperature K1 = 3rd order output coefficient K2 = 2nd order output coefficient K3 = 1st order output coefficient K4 = Output constant Self-Test Feature The sensor is fitted with a self-test feature. When activated by applying 5 volts to the self-test connection the output will change by approximately 4 volts.
