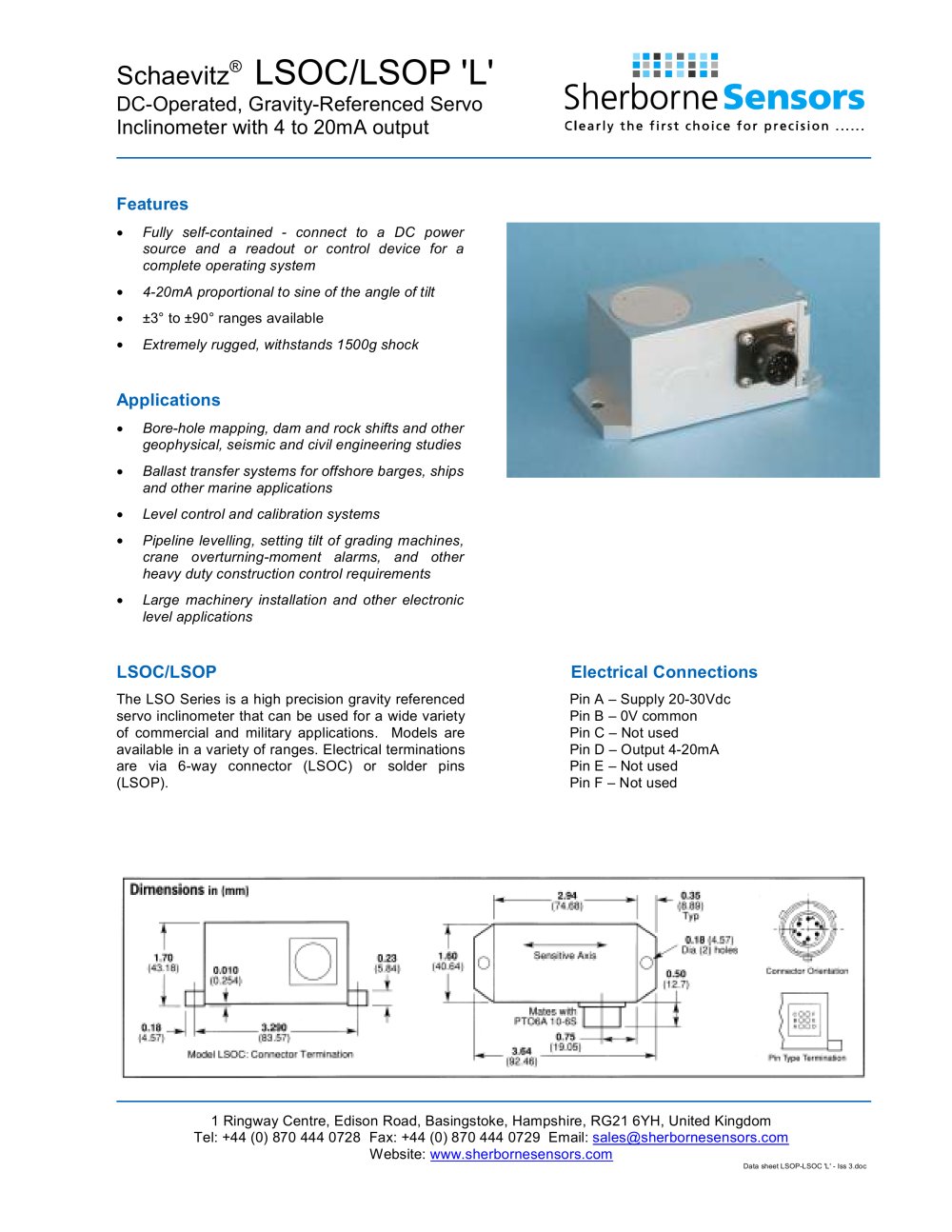

Schaevitz® LSOC/LSOP 'L' DC-Operated, Gravity-Referenced Servo Inclinometer with 4 to 20mA output 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com Data sheet LSOP-LSOC 'L' - Iss 3.doc Features • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • 4-20mA proportional to sine of the angle of tilt • ±3° to ±90° ranges available • Extremely rugged, withstands 1500g shock Applications • Bore-hole mapping, dam and rock shifts and other geophysical, seismic and civil engineering studies • Ballast transfer systems for offshore barges, ships and other marine applications • Level control and calibration systems • Pipeline levelling, setting tilt of grading machines, crane overturning-moment alarms, and other heavy duty construction control requirements • Large machinery installation and other electronic level applications LSOC/LSOP The LSO Series is a high precision gravity referenced servo inclinometer that can be used for a wide variety of commercial and military applications. Models are available in a variety of ranges. Electrical terminations are via 6-way connector (LSOC) or solder pins (LSOP). Electrical Connections Pin A – Supply 20-30Vdc Pin B – 0V common Pin C – Not used Pin D – Output 4-20mA Pin E – Not used Pin F – Not used
