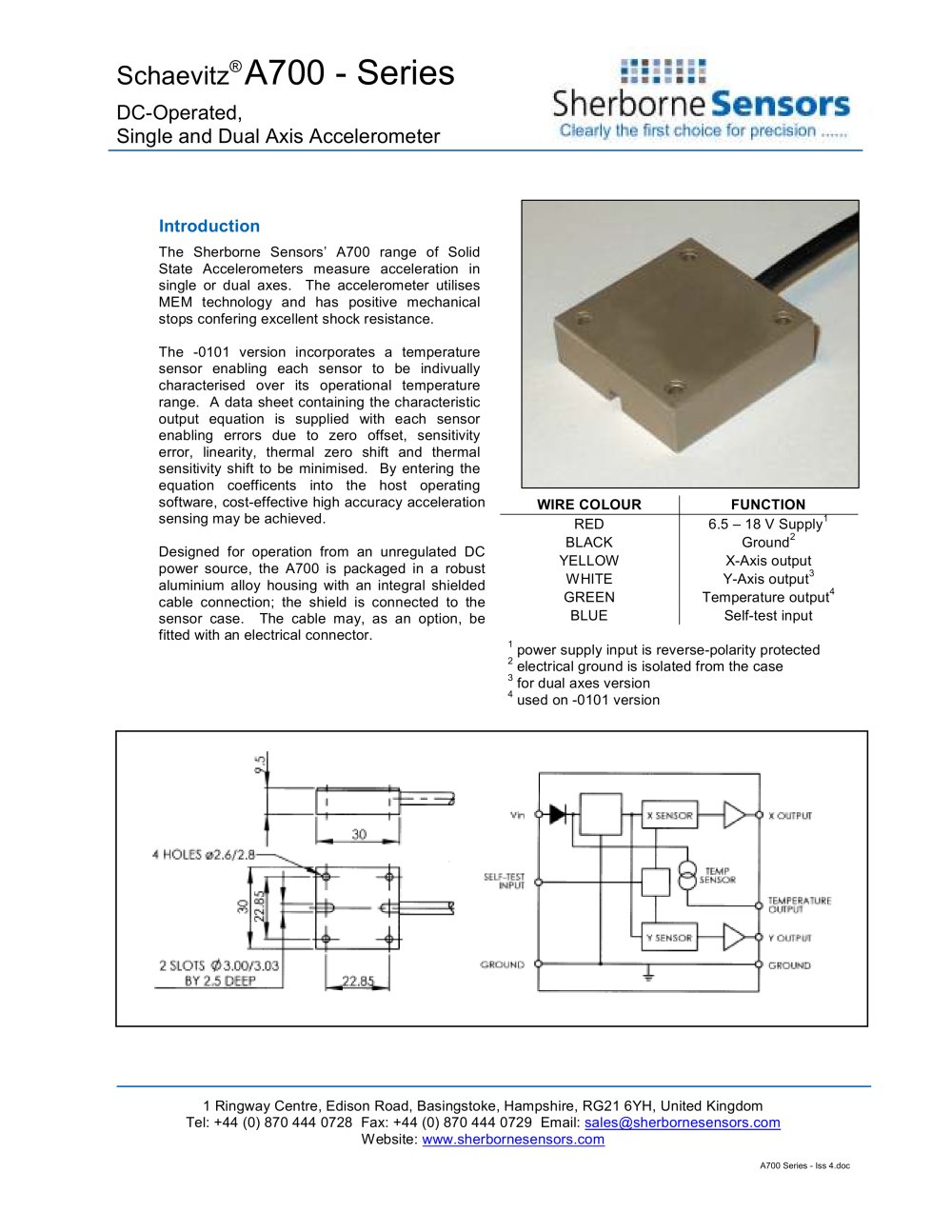

Schaevitz® A700 - Series DC-Operated, Single and Dual Axis Accelerometer 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com A700 Series - Iss 4.doc Introduction The Sherborne Sensors’ A700 range of Solid State Accelerometers measure acceleration in single or dual axes. The accelerometer utilises MEM technology and has positive mechanical stops confering excellent shock resistance. The -0101 version incorporates a temperature sensor enabling each sensor to be indivually characterised over its operational temperature range. A data sheet containing the characteristic output equation is supplied with each sensor enabling errors due to zero offset, sensitivity error, linearity, thermal zero shift and thermal sensitivity shift to be minimised. By entering the equation coefficents into the host operating software, cost-effective high accuracy acceleration sensing may be achieved. Designed for operation from an unregulated DC power source, the A700 is packaged in a robust aluminium alloy housing with an integral shielded cable connection; the shield is connected to the sensor case. The cable may, as an option, be fitted with an electrical connector. WIRE COLOUR FUNCTION RED 6.5 – 18 V Supply1 BLACK Ground2 YELLOW X-Axis output WHITE Y-Axis output3 GREEN Temperature output4 BLUE Self-test input 1 power supply input is reverse-polarity protected 2 electrical ground is isolated from the case 3 for dual axes version 4 used on -0101 version
