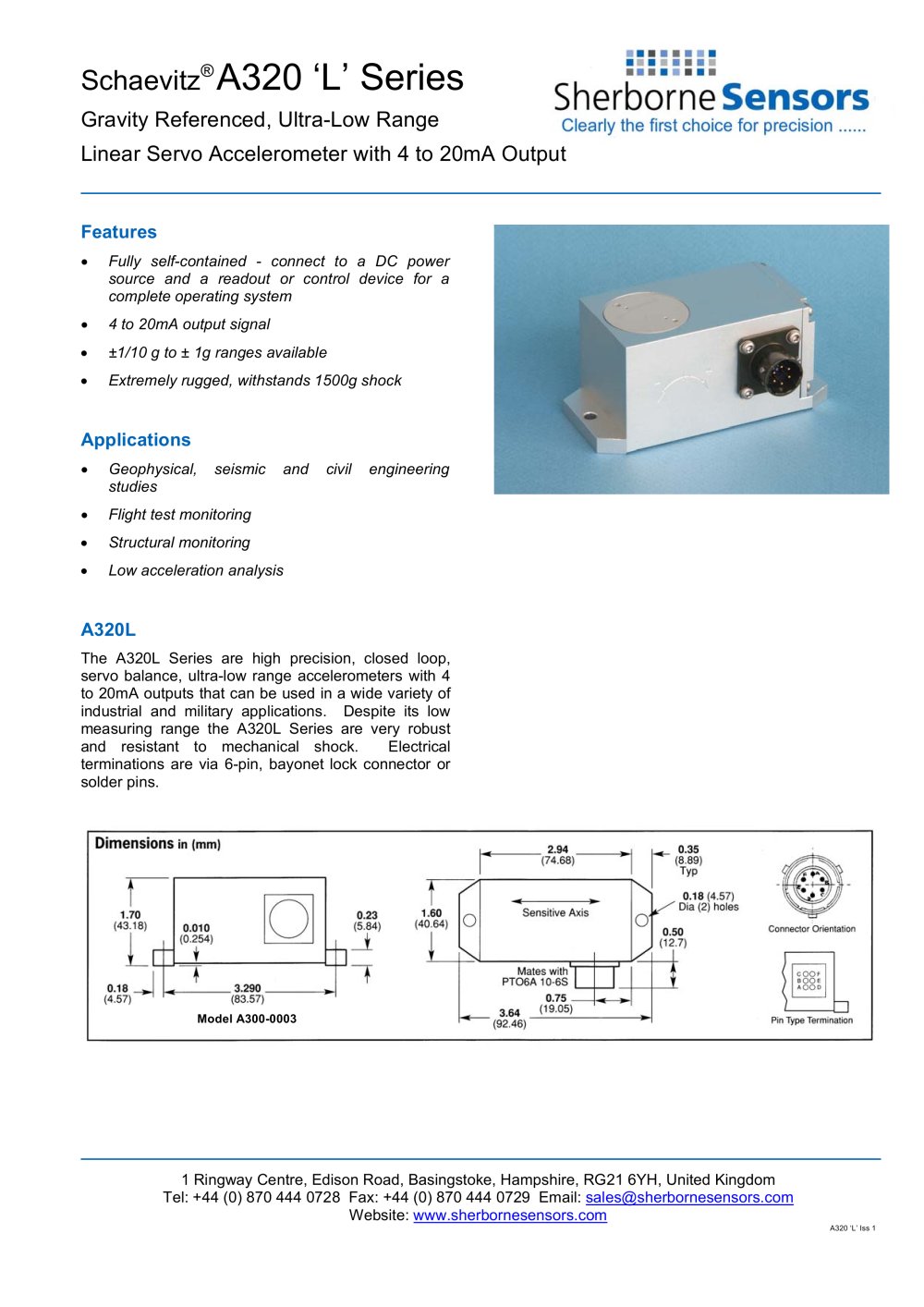

Schaevitz® A320 ‘L’ Series Gravity Referenced, Ultra-Low Range Linear Servo Accelerometer with 4 to 20mA Output 1 Ringway Centre, Edison Road, Basingstoke, Hampshire, RG21 6YH, United Kingdom Tel: +44 (0) 870 444 0728 Fax: +44 (0) 870 444 0729 Email: sales@sherbornesensors.com Website: www.sherbornesensors.com A320 ‘L’ Iss 1 Features • Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system • 4 to 20mA output signal • ±1/10 g to ± 1g ranges available • Extremely rugged, withstands 1500g shock Applications • Geophysical, seismic and civil engineering studies • Flight test monitoring • Structural monitoring • Low acceleration analysis A320L The A320L Series are high precision, closed loop, servo balance, ultra-low range accelerometers with 4 to 20mA outputs that can be used in a wide variety of industrial and military applications. Despite its low measuring range the A320L Series are very robust and resistant to mechanical shock. Electrical terminations are via 6-pin, bayonet lock connector or solder pins. Model A300-0003
