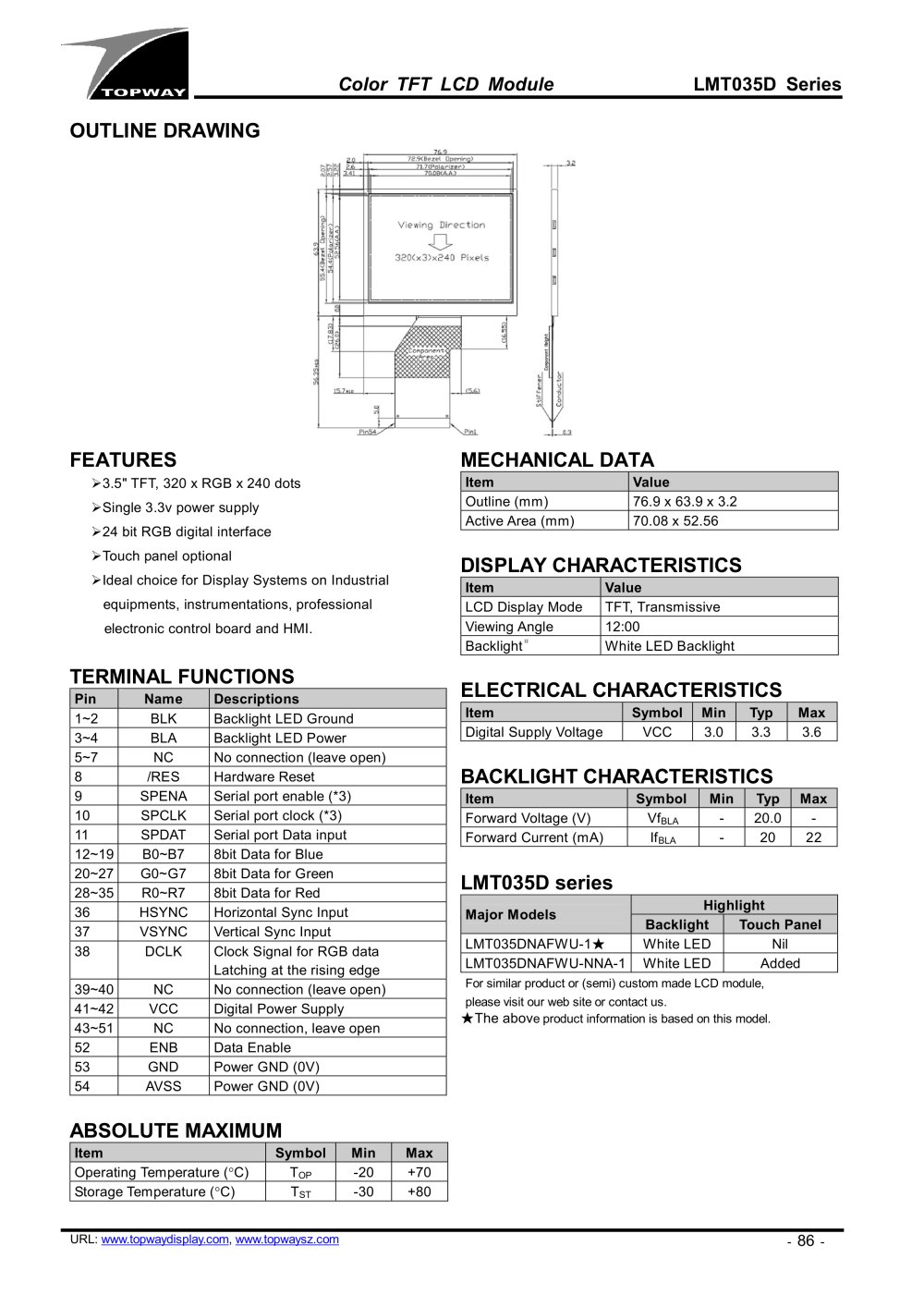

Color TFT LCD Module LMT035D Series URL: www.topwaydisplay.com, www.topwaysz.com - 86 - OUTLINE DRAWING FEATURES „«3.5" TFT, 320 x RGB x 240 dots „«Single 3.3v power supply „«24 bit RGB digital interface „«Touch panel optional „«Ideal choice for Display Systems on Industrial equipments, instrumentations, professional electronic control board and HMI. TERMINAL FUNCTIONS Pin Name Descriptions 1~2 BLK Backlight LED Ground 3~4 BLA Backlight LED Power 5~7 NC No connection (leave open) 8 /RES Hardware Reset 9 SPENA Serial port enable (*3) 10 SPCLK Serial port clock (*3) 11 SPDAT Serial port Data input 12~19 B0~B7 8bit Data for Blue 20~27 G0~G7 8bit Data for Green 28~35 R0~R7 8bit Data for Red 36 HSYNC Horizontal Sync Input 37 VSYNC Vertical Sync Input 38 DCLK Clock Signal for RGB data Latching at the rising edge 39~40 NC No connection (leave open) 41~42 VCC Digital Power Supply 43~51 NC No connection, leave open 52 ENB Data Enable 53 GND Power GND (0V) 54 AVSS Power GND (0V) ABSOLUTE MAXIMUM Item Symbol Min Max Operating Temperature („aC) TOP -20 +70 Storage Temperature („aC) TST -30 +80 MECHANICAL DATA Item Value Outline (mm) 76.9 x 63.9 x 3.2 Active Area (mm) 70.08 x 52.56 DISPLAY CHARACTERISTICS Item Value LCD Display Mode TFT, Transmissive Viewing Angle 12:00 Backlight�” White LED Backlight ELECTRICAL CHARACTERISTICS Item Symbol Min Typ Max Digital Supply Voltage VCC 3.0 3.3 3.6 BACKLIGHT CHARACTERISTICS Item Symbol Min Typ Max Forward Voltage (V) VfBLA - 20.0 - Forward Current (mA) IfBLA - 20 22 LMT035D series Major Models Highlight Backlight Touch Panel LMT035DNAFWU-1�š White LED Nil LMT035DNAFWU-NNA-1 White LED Added For similar product or (semi) custom made LCD module, please visit our web site or contact us. �šThe above product information is based on this model.
