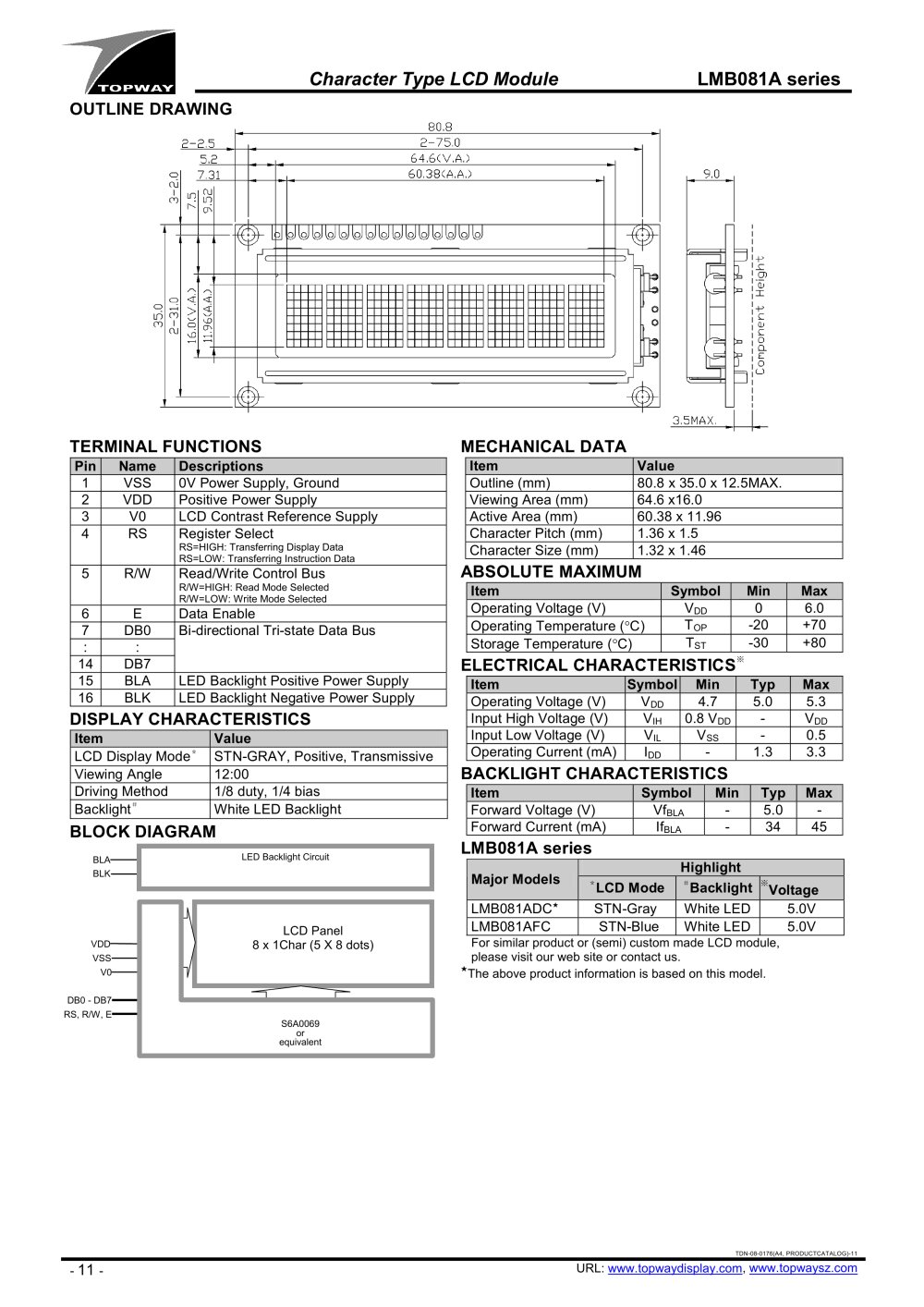

Character Type LCD Module LMB081A series TDN-08-0176(A4, PRODUCTCATALOG)-11 - 11 - URL: www.topwaydisplay.com, www.topwaysz.com OUTLINE DRAWING TERMINAL FUNCTIONS DISPLAY CHARACTERISTICS Item Value LCD Display Mode�– STN-GRAY, Positive, Transmissive Viewing Angle 12:00 Driving Method 1/8 duty, 1/4 bias Backlight�” White LED Backlight BLOCK DIAGRAM Pin Name Descriptions 1 VSS 0V Power Supply, Ground 2 VDD Positive Power Supply 3 V0 LCD Contrast Reference Supply 4 RS Register Select RS=HIGH: Transferring Display Data RS=LOW: Transferring Instruction Data 5 R/W Read/Write Control Bus R/W=HIGH: Read Mode Selected R/W=LOW: Write Mode Selected 6 E Data Enable 7 DB0 : : 14 DB7 Bi-directional Tri-state Data Bus 15 BLA LED Backlight Positive Power Supply 16 BLK LED Backlight Negative Power Supply MECHANICAL DATA Item Value Outline (mm) 80.8 x 35.0 x 12.5MAX. Viewing Area (mm) 64.6 x16.0 Active Area (mm) 60.38 x 11.96 Character Pitch (mm) 1.36 x 1.5 Character Size (mm) 1.32 x 1.46 ABSOLUTE MAXIMUM Item Symbol Min Max Operating Voltage (V) VDD 0 6.0 Operating Temperature (°C) TOP -20 +70 Storage Temperature (°C) TST -30 +80 ELECTRICAL CHARACTERISTICS�¦ Item Symbol Min Typ Max Operating Voltage (V) VDD 4.7 5.0 5.3 Input High Voltage (V) VIH 0.8 VDD - VDD Input Low Voltage (V) VIL VSS - 0.5 Operating Current (mA) IDD - 1.3 3.3 BACKLIGHT CHARACTERISTICS LMB081A series Highlight Major Models �–LCD Mode �”Backlight �¦Voltage LMB081ADC�š STN-Gray White LED 5.0V LMB081AFC STN-Blue White LED 5.0V For similar product or (semi) custom made LCD module, please visit our web site or contact us. �šThe above product information is based on this model. Item Symbol Min Typ Max Forward Voltage (V) VfBLA - 5.0 - Forward Current (mA) IfBLA - 34 45 DB0 - DB7 RS, R/W, E V0 VSS VDD BLA BLK LED Backlight Circuit LCD Panel 8 x 1Char (5 X 8 dots) S6A0069 or equivalent
