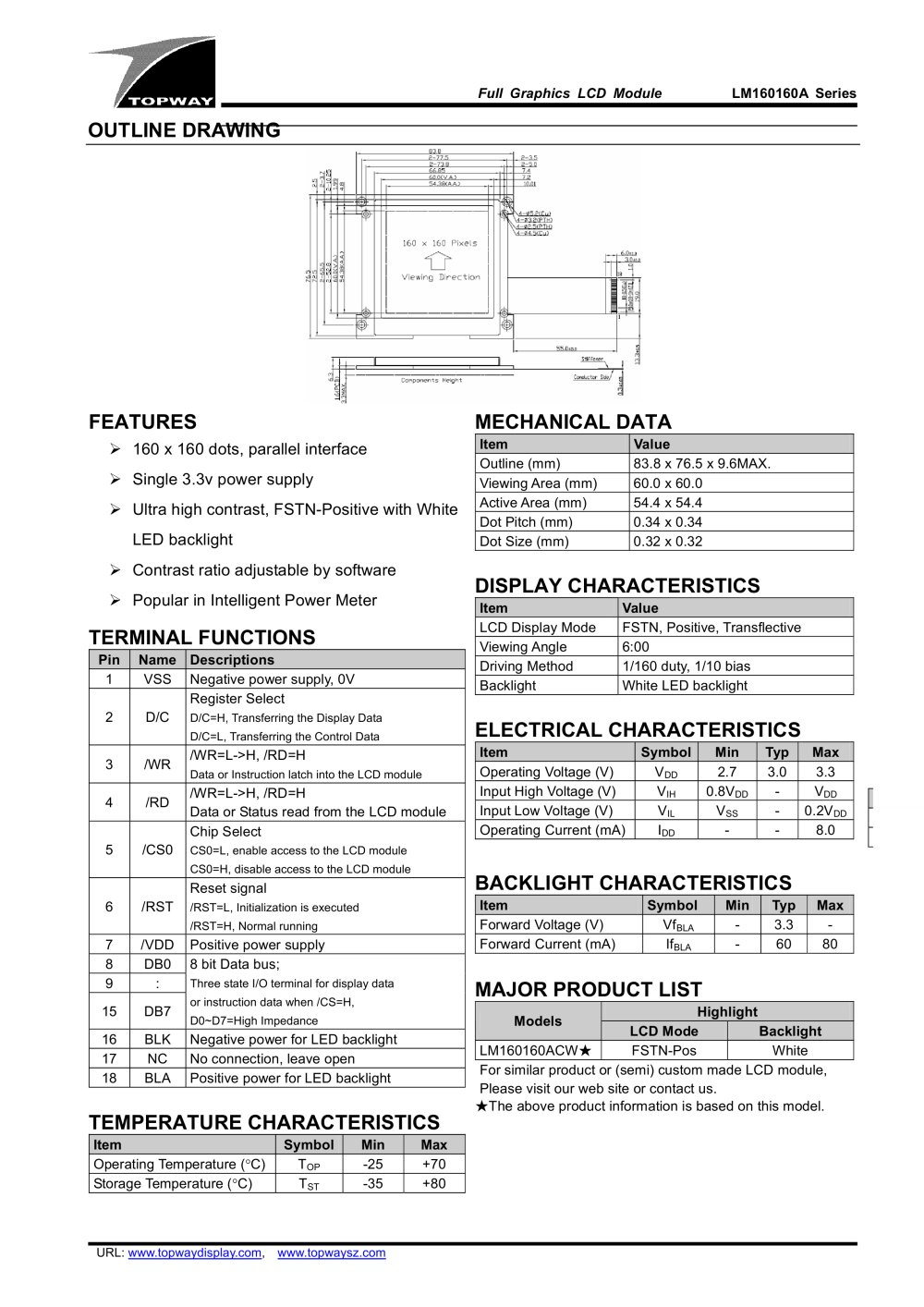

Full Graphics LCD Module LM160160A Series URL: www.topwaydisplay.com, www.topwaysz.com OUTLINE DRAWING FEATURES „« 160 x 160 dots, parallel interface „« Single 3.3v power supply „« Ultra high contrast, FSTN-Positive with White LED backlight „« Contrast ratio adjustable by software „« Popular in Intelligent Power Meter TERMINAL FUNCTIONS Pin Name Descriptions 1 VSS Negative power supply, 0V 2 D/C Register Select D/C=H, Transferring the Display Data D/C=L, Transferring the Control Data 3 /WR /WR=L->H, /RD=H Data or Instruction latch into the LCD module 4 /RD /WR=L->H, /RD=H Data or Status read from the LCD module 5 /CS0 Chip Select CS0=L, enable access to the LCD module CS0=H, disable access to the LCD module 6 /RST Reset signal /RST=L, Initialization is executed /RST=H, Normal running 7 /VDD Positive power supply 8 DB0 9 : 15 DB7 8 bit Data bus; Three state I/O terminal for display data or instruction data when /CS=H, D0~D7=High Impedance 16 BLK Negative power for LED backlight 17 NC No connection, leave open 18 BLA Positive power for LED backlight TEMPERATURE CHARACTERISTICS Item Symbol Min Max Operating Temperature („aC) TOP -25 +70 Storage Temperature („aC) TST -35 +80 MECHANICAL DATA Item Value Outline (mm) 83.8 x 76.5 x 9.6MAX. Viewing Area (mm) 60.0 x 60.0 Active Area (mm) 54.4 x 54.4 Dot Pitch (mm) 0.34 x 0.34 Dot Size (mm) 0.32 x 0.32 DISPLAY CHARACTERISTICS Item Value LCD Display Mode FSTN, Positive, Transflective Viewing Angle 6:00 Driving Method 1/160 duty, 1/10 bias Backlight White LED backlight ELECTRICAL CHARACTERISTICS BACKLIGHT CHARACTERISTICS Item Symbol Min Typ Max Forward Voltage (V) VfBLA - 3.3 - Forward Current (mA) IfBLA - 60 80 MAJOR PRODUCT LIST Models Highlight LCD Mode Backlight LM160160ACW�š FSTN-Pos White For similar product or (semi) custom made LCD module, Please visit our web site or contact us. �šThe above product information is based on this model. Item Symbol Min Typ Max Operating Voltage (V) VDD 2.7 3.0 3.3 Input High Voltage (V) VIH 0.8VDD - VDD Input Low Voltage (V) VIL VSS - 0.2VDD Operating Current (mA) IDD - - 8.0
