Shenzhen HFC Technology Co.LTD

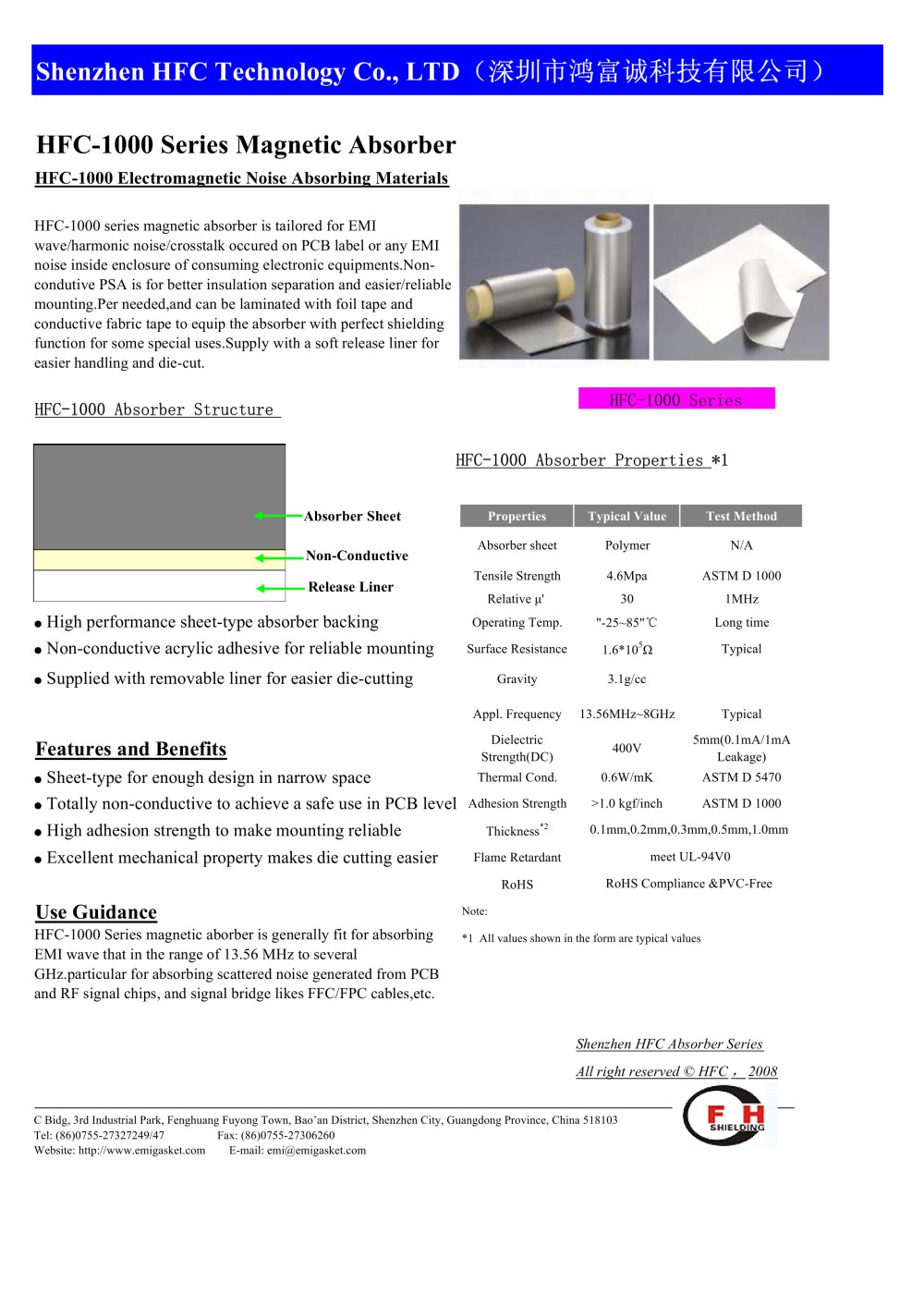

HFC-1000 Series Magnetic Absorber
HFC-1000
Sheet-Type Electromagnetic Noise Absorbing Materials
HFC-1000 series magnetic absorber is tailored for EMIwave/harmonic noise/crosstalk occured on PCB label or any EMInoise inside enclosure of consuming electronic equipments.Non-condutive PSA is for better insulation separation and easier/reliablemounting.Per needed,and can be laminated with foil tape andconductive fabric tape to equip the absorber with perfect shieldingfunction for some special uses.Supply with a soft release liner foreasier handling and die-cut.
Absorber Sheet
Properties
Typical Value
Test Method
Absorber sheet
Polymer
N/A
Tensile Strength
4.6Mpa
ASTM D 1000
Relative
' 30
1MHz
High performance sheet-type absorber backing
Operating Temp.
"-25~85"
Long time
Non-conductive acrylic adhesive for reliable mounting
Surface Resistance
1.6*105
Typical
Supplied with removable liner for easier die-cutting
Gravity
3.1g/cc
Appl. Frequency
500MHz~8GHz
Typical
Features and Benefits
DielectricStrength(DC)
400V
5mm(0.1mA/1mALeakage)
Sheet-type for enough design in narrow spaceThermal Cond.
0.6W/mK
ASTM D 5470
Totally non-conductive to achieve a safe use in PCB levelAdhesion Strength
>1.0 kgf/inch
ASTM D 1000
High adhesion strength to make mounting reliableThickness*2
0.1mm,0.2mm,0.3mm,0.5mm,1.0mm
Excellent mechanical property makes die cutting easierFlame Retardant
meet UL-94V0
RoHS
RoHS Compliance &PVC-Free
Use Guidance
Note:
HFC-1000 Series magnetic aborber is generally fit for absorbingEMI wave that in the range of several hundreds of MHz toseveral GHz.particular for absorbing scattered noise generatedfrom PCB and RF signal chips, and signal bridge likes FFC/FPCcables,etc.
*1 All values shown in the form are typical values
Shenzhen HFC Absorber Series
All right reserved HFCC2008HFC-1000 Absorber StructureHFC-1000 SeriesHFC-1000 Absorber Properties*1Non-ConductiveRelease Liner
