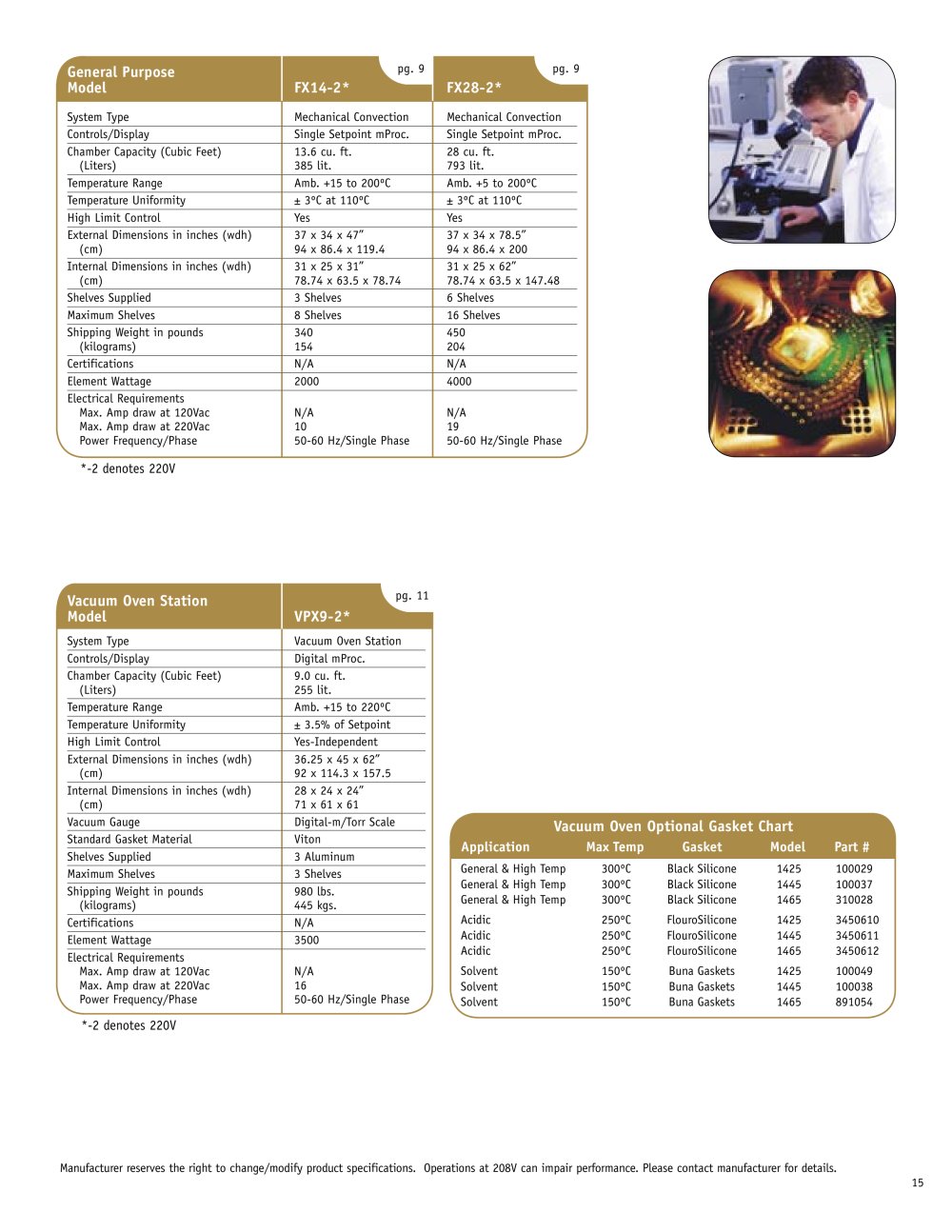

| | | General Purpose Model | | |
| | | |
| | | |
| | | System Type Mechanical Convection Mechanical Convection | | |
| | | |
| | | Controls/Display | | Single Setpoint mProc. Single Setpoint mProc. | | |
| | | |
| | | Chamber Capacity (Cubic Feet) 13.6 cu. ft. 28 cu. ft. (Liters) 385 lit. 793 lit. | | |
| | | |
| | | Temperature Range Amb. +15 to 200°C Amb. +5 to 200°C | | |
| | | |
| | | Temperature Uniformity | | |
| | | ± 3°C at 110°C | | ± 3°C at 110°C | | |
| | | |
| | | |
| | | High Limit Control | | |
| | | Yes Yes | | |
| | | |
| | | |
| | | External Dimensions in inches (wdh) (cm) | 37 x 34 x 47" 37 x 34 x 78.5" 94 x 86.4 x 200 | | |
| | | | |
| | | |
| | | Internal Dimensions in inches (wdh) | | 31 x 25 x 31" 31 x 25 x 62" | | |
| | | |
| | | |
| | | (cm) 78.74 x 63.5 x 78.74 78.74 x 63.5 x 147.48 | | |
| | | |
| | | Shelves Supplied 3 Shelves 6 Shelves | | |
| | | |
| | | Maximum Shelves 8 Shelves 16 Shelves | | |
| | | |
| | | Shipping Weight in pounds 340 450 (kilograms) 154 204 | | |
| | | |
| | | Certifications | | N/A N/A | | |
| | | |
| | | |
| | | Element Wattage 2000 4000 | | |
| | | |
| | | Electrical Requirements Max. Amp draw at 120Vac N/A N/A Max. Amp draw at 220Vac 10 19 Power Frequency/Phase 50-60 Hz/Single Phase 50-60 Hz/Single Phase | | |
| | | |
| | | *-2 denotes 220V | | |
| | | |
| | | | | | | | | | | pg. 11 VPX9-2* | | | | System Type | Vacuum Oven Station | | | | Controls/Display | Digital mProc. | | | | Chamber Capacity (Cubic Feet) (Liters) | 9.0 cu. ft. 255 lit. | | | | Temperature Range | Amb. +15 to 220°C | | | | Temperature Uniformity | + 3.5% of Setpoint | | | | High Limit Control | Yes-Independent | | | | External Dimensions in inches (wdh) (cm) | 36.25 x 45 x 62" 92 x 114.3 x 157.5 | | | | | | | | | |
| | | |
| | | | | | | | | | | Digital-m/Torr Scale | | | | Standard Gasket Material | Viton | | | | Shelves Supplied | 3 Aluminum | | | | Maximum Shelves | 3 Shelves | | | | Shipping Weight in pounds (kilograms) | 980 lbs. 445 kgs. | | | | Certifications | N/A | | | | Element Wattage | 3500 | | | | | | | | | |
| | | Vacuum Oven Optional Gasket Chart | | |
| | | |
| | | | | | | | | | | | | Application | Max Temp | Gasket | Model Part # | | | | General & High Temp | 300°C | Black Silicone | 1425 | 100029 | | | | General & High Temp | 300°C | Black Silicone | 1445 | 100037 | | | | General & High Temp | 300°C | Black Silicone | 1465 | 310028 | | | | Acidic | 250°C | FlouroSilicone | 1425 | 3450610 | | | | Acidic | 250°C | FlouroSilicone | 1445 | 3450611 | | | | Acidic | 250°C | FlouroSilicone | 1465 | 3450612 | | | | Solvent | 150°C | Buna Gaskets | 1425 | 100049 | | | | Solvent | 150°C | Buna Gaskets | 1445 | 100038 | | | | Solvent | 150°C | Buna Gaskets | 1465 | 891054 | | | | | | | | | | | | |
| | | |
| | | Electrical Requirements Max. Amp draw at 120Vac N/A Max. Amp draw at 220Vac 16 Power Frequency/Phase 50-60 Hz/Single Phase | | |
| | | | |
| | | |
| | | J | |
| | | |
| | | *-2 denotes 220V | | |
| | | |
| | | Manufacturer reserves the right to change/modify product specifications. Operations at 208V can impair performance. Please contact manufacturer for details. | | |
| | | |
