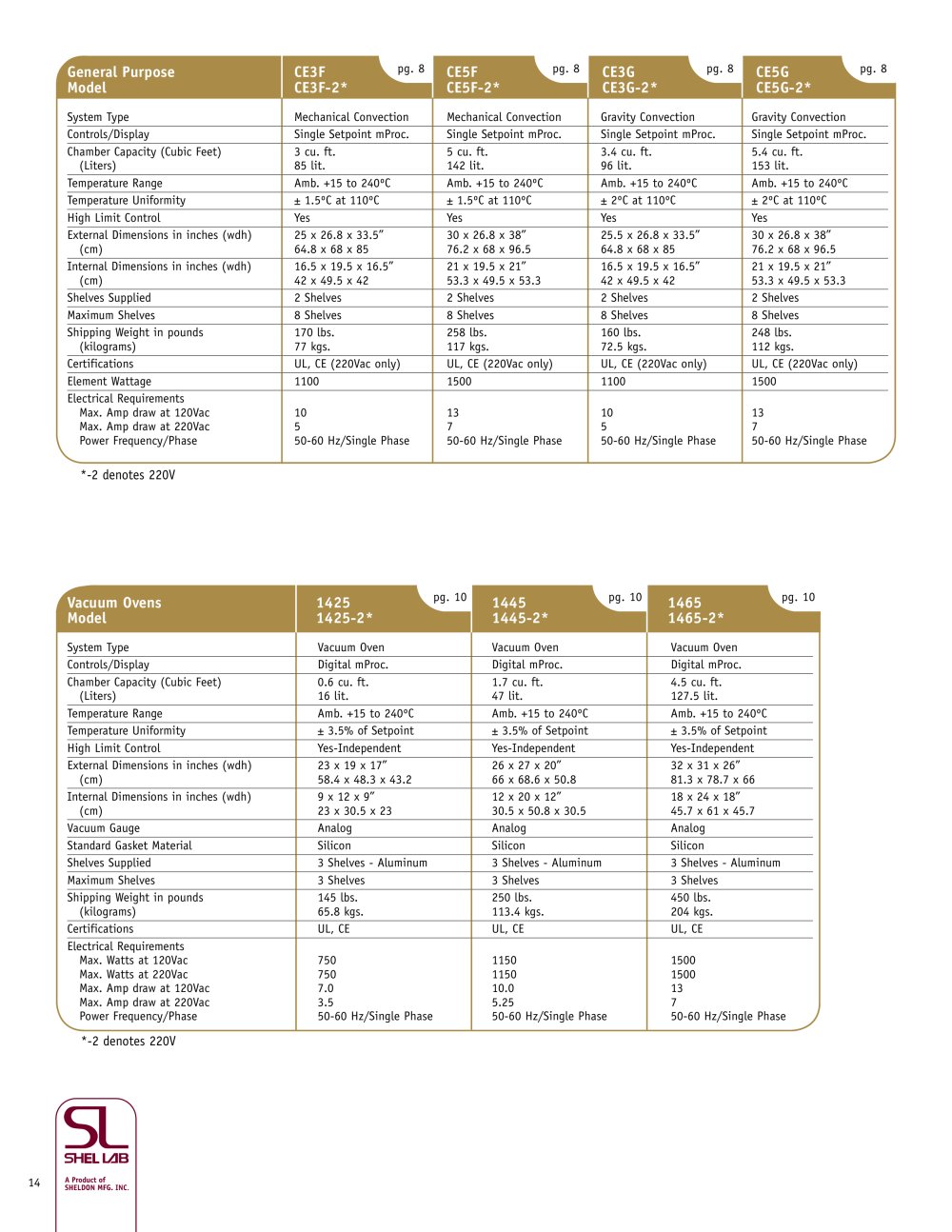

| | | pg- 1 CE5F ^pg- |ILcE5F-2* " H ^t3G-2* | | |
| | | pg. 8 | | pg. 8 | | |
| | | General Purpose CE3 Model CE3 | | |
| | | CE5G CE5G-2 | | |
| | | | |
| | | | |
| | | | | | | | | | | | | System Type | Mechanical Convection | Mechanical Convection | Gravity Convection | Gravity Convection | | | | Controls/Display | Single Setpoint mProc. | Single Setpoint mProc. | Single Setpoint mProc. | Single Setpoint mProc. | | | | Chamber Capacity (Cubic Feet) (Liters) | 3 cu. ft. 85 lit. | 5 cu. ft. 142 lit. | 3.4 cu. ft. 96 lit. | 5.4 cu. ft. 153 lit. | | | | Temperature Range | Amb. +15 to 240°C | Amb. +15 to 240°C | Amb. +15 to 240°C | Amb. +15 to 240°C | | | | Temperature Uniformity | ± 1.5°C at 110°C | + 1.5°C at 110°C | + 2°C at 110°C | + 2°C at 110°C | | | | High Limit Control | Yes | Yes | Yes | Yes | | | | External Dimensions in inches (wdh) (cm) | 25 x 26.8 x 33.5" 64.8 x 68 x 85 | 30 x 26.8 x 38" 76.2 x 68 x 96.5 | 25.5 x 26.8 x 33.5" 64.8 x 68 x 85 | 30 x 26.8 x 38" 76.2 x 68 x 96.5 | | | | Internal Dimensions in inches (wdh) (cm) | 16.5 x 19.5 x 16.5" 42 x 49.5 x 42 | 21 x 19.5 x 21" 53.3 x 49.5 x 53.3 | 16.5 x 19.5 x 16.5" 42 x 49.5 x 42 | 21 x 19.5 x 21" 53.3 x 49.5 x 53.3 | | | | Shelves Supplied | 2 Shelves | 2 Shelves | 2 Shelves | 2 Shelves | | | | Maximum Shelves | 8 Shelves | 8 Shelves | 8 Shelves | 8 Shelves | | | | Shipping Weight in pounds (kilograms) | 170 lbs. 77 kgs. | 258 lbs. 117 kgs. | 160 lbs. 72.5 kgs. | 248 lbs. 112 kgs. | | | | Certifications | UL, CE (220Vac only) | UL, CE (220Vac only) | UL, CE (220Vac only) | UL, CE (220Vac only) | | | | Element Wattage | 1100 | 1500 | 1100 | 1500 | | | | Electrical Requirements Max. Amp draw at 120Vac 10 Max. Amp draw at 220Vac 5 | 13 7 | 10 5 | 13 7 | | | | | | | | | | | | |
| | | Power Frequency/Phase 50-60 Hz/Single Phase 50-60 Hz/Single Phase | | 50-60 Hz/Single Phase | | 50-60 Hz/Single Phase | | |
| | | |
| | | *-2 denotes 220V | | |
| | | |
| | | | | | | | | | | | | 1425 Pg- 10 | 1445 ^9 | 1465 pg- 10 | | | | Model | 1425-2* | 1445-2* | 1465-2* | | | | System Type | Vacuum Oven | Vacuum Oven | Vacuum Oven | | | | Controls/Display | Digital mProc. | Digital mProc. | Digital mProc. | | | | Chamber Capacity (Cubic Feet) (Liters) | 0.6 cu. ft. 16 lit. | 1.7 cu. ft. 47 lit. | 4.5 cu. ft. 127.5 lit. | | | | Temperature Range | Amb. +15 to 240°C | Amb. +15 to 240°C | Amb. +15 to 240°C | | | | Temperature Uniformity | + 3.5% of Setpoint | + 3.5% of Setpoint | + 3.5% of Setpoint | | | | High Limit Control | Yes-Independent | Yes-Independent | Yes-Independent | | | | External Dimensions in inches (wdh) (cm) | 23 x 19 x 17" 58.4 x 48.3 x 43.2 | 26 x 27 x 20" 66 x 68.6 x 50.8 | 32 x 31 x 26" 81.3 x 78.7 x 66 | | | | Internal Dimensions in inches (wdh) (cm) | 9 x 12 x 9" 23 x 30.5 x 23 | 12 x 20 x 12" 30.5 x 50.8 x 30.5 | 18 x 24 x 18" 45.7 x 61 x 45.7 | | | | | Analog | Analog | Analog | | | | Standard Gasket Material | Silicon | Silicon | Silicon | | | | Shelves Supplied | 3 Shelves - Aluminum | 3 Shelves - Aluminum | 3 Shelves - Aluminum | | | | Maximum Shelves | 3 Shelves | 3 Shelves | 3 Shelves | | | | Shipping Weight in pounds (kilograms) | 145 lbs. 65.8 kgs. | 250 lbs. 113.4 kgs. | 450 lbs. 204 kgs. | | | | Certifications | UL, CE | UL, CE | UL, CE | | | | Electrical Requirements | | | | | | | | | | | | | |
| | | Max. Watts at 120Vac Max. Watts at 220Vac Max. Amp draw at 120Vac | | 750 1150 750 1150 7.0 10.0 3.5 5.25 50-60 Hz/Single Phase 50-60 Hz/Single Phase | | 1500 1500 13 7 50-60 Hz/Single Phase | | |
| | | |
| | | Max. Amp draw at 220Vac Power Frequency/Phase | | |
| | | |
| | | *-2 denotes 220V | | |
| | | |
| | | SHELL/ÜB | | |
| | | |
| | | A Product of SHELDON MFG. INC. | | |
| | | 14 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
