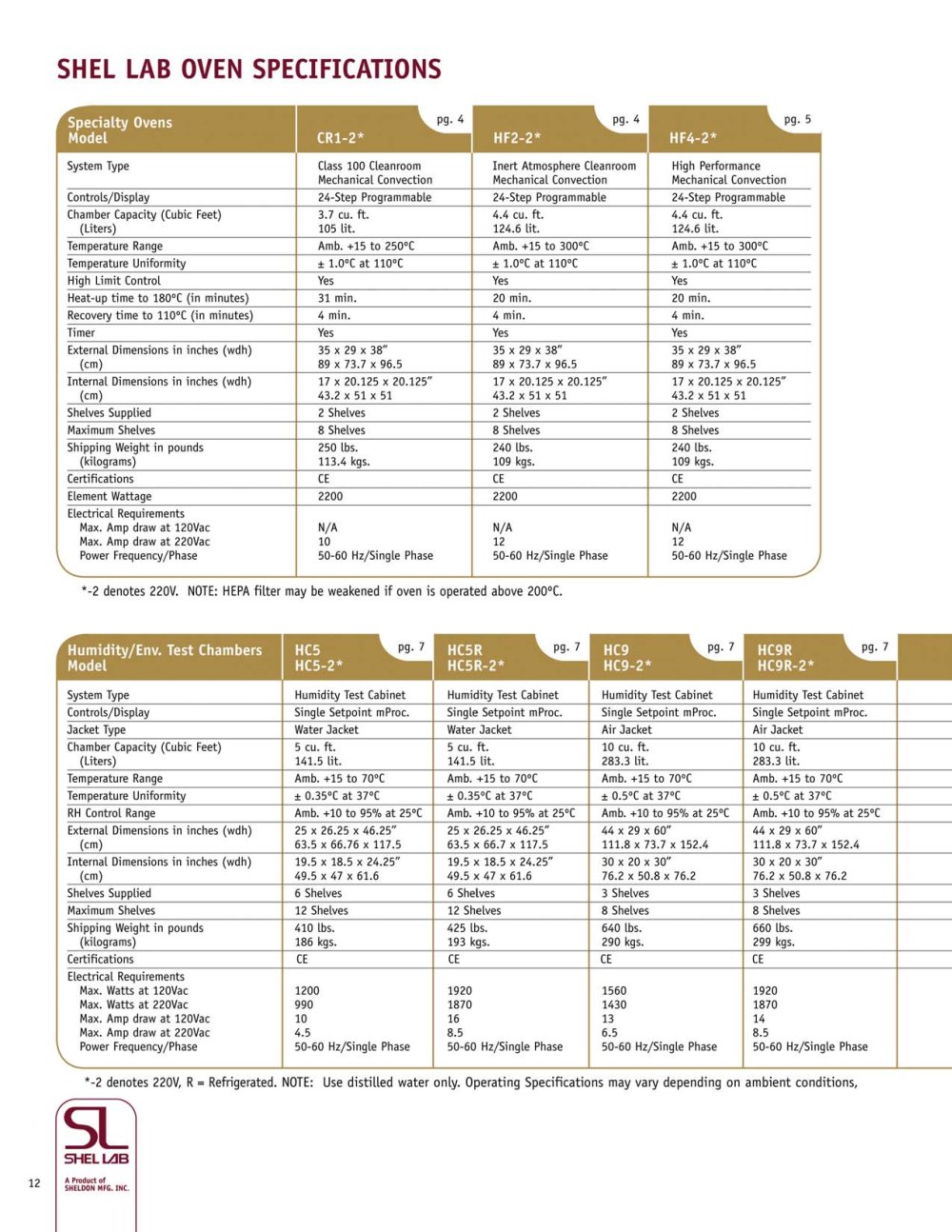

SHEL LAB OVEN SPECIFICATIONS


F--¹ Specialty Ovens	pg.	pg.	pg.
Model	CR1-2*	HF2-2*	HF4-2*
System Type	Class 100 Cleanroom Mechanical Convection	Inert Atmosphere Cleanroom Mechanical Convection	High Performance Mechanical Convection
Controls/Display	24-Step Programmable	24-Step Programmable	24-Step Programmable
Chamber Capacity (Cubic Feet) (Liters)	3.7 cu. ft. 105 lit.	4.4 cu. ft. 124.6 lit.	4.4 cu. ft. 124.6 lit.
Temperature Range	Amb. +15 to 250°C	Amb. +15 to 300°C	Amb. +15 to 300°C
Temperature Uniformity	± 1.0°C at 110°C	± 1.0°C at 110°C	± 1.0°C at 110°C
High Limit Control	Yes	Yes	Yes
Heat-up time to 180°C (in minutes)	31 min.	20 min.	20 min.
Recovery time to 110°C (in minutes)	4 min.	4 min.	4 min.
Timer	Yes	Yes	Yes
External Dimensions in inches (wdh) (cm)	35 x 29 x 38" 89 x 73.7 x 96.5	35 x 29 x 38" 89 x 73.7 x 96.5	35 x 29 x 38" 89 x 73.7 x 96.5
Internal Dimensions in inches (wdh) (cm)	17 x 20.125 x 20.125" 43.2 x 51 x 51	17 x 20.125 x 20.125" 43.2 x 51 x 51	17 x 20.125 x 20.125" 43.2 x 51 x 51
Shelves Supplied	2 Shelves	2 Shelves	2 Shelves
Maximum Shelves	8 Shelves	8 Shelves	8 Shelves
Shipping Weight in pounds (kilograms)	250 lbs. 113.4 kgs.	240 lbs. 109 kgs.	240 lbs. 109 kgs.
Certifications	CE	CE	CE
Element Wattage	2200	2200	2200
Electrical Requirements Max. Amp draw at 120Vac Max. Amp draw at 220Vac Power Frequency/Phase	N/A 10 50-60 Hz/Single Phase	N/A 12 50-60 Hz/Single Phase	N/A 12 50-60 Hz/Single Phase

*-2 denotes 220V. NOTE: HEPA filter may be weakened if oven is operated above 200°C.

Humidity/Env. Test chambers Model


System Type	Humidity Test Cabinet	Humidity Test Cabinet	Humidity Test Cabinet	Humidity Test Cabinet
Controls/Display	Single Setpoint mProc.	Single Setpoint mProc.	Single Setpoint mProc.	Single Setpoint mProc.
Jacket Type	Water Jacket	Water Jacket	Air Jacket	Air Jacket
Chamber Capacity (Cubic Feet) (Liters)	5 cu. ft. 141.5 lit.	5 cu. ft. 141.5 lit.	10 cu. ft. 283.3 lit.	10 cu. ft. 283.3 lit.
Temperature Range	Amb. +15 to 70°C	Amb. +15 to 70"C	Amb. +15 to 70°C	Amb. +15 to 70°C
Temperature Uniformity	± 0.35°C at 37°C	± 0.35'C at 37"C	± 0.5»C at 37°C	± 0.5°C at 37°C
RH Control Range	Amb. +10 to 95% at 25°C	Amb. +10 to 95% at 25°C	Amb. +10 to 95% at 25°C	Amb. +10 to 95% at 25°C
External Dimensions in inches (wdh) (cm)	25 x 26.25 x 46.25" 63.5 x 66.76 x 117.5	25 x 26.25 x 46.25" 63.5 x 66.7 x 117.5	44 x 29 x 60" 111.8 x 73.7 x 152.4	44 x 29 x 60" 111.8 x 73.7 x 152.4
Internal Dimensions in inches (wdh) (cm)	19.5 x 18.5 x 24.25" 49.5 x 47 x 61.6	19.5 x 18.5 x 24.25" 49.5 x 47 x 61.6	30 x 20 x 30" 76.2 x 50.8 x 76.2	30 x 20 x 30" 76.2 x 50.8 x 76.2
Shelves Supplied	6 Shelves	6 Shelves	3 Shelves	3 Shelves
Maximum Shelves	12 Shelves	12 Shelves	8 Shelves	8 Shelves
Shipping Weight in pounds (kilograms)	410 lbs. 186 kgs.	425 lbs. 193 kgs.	640 lbs. 290 kgs.	660 lbs. 299 kgs.
Certifications	CE	CE	CE	CE
Electrical Requirements Max. Watts at 120Vac Max. Watts at 220Vac Max. Amp draw at 120Vac Max. Amp draw at 220Vac Power Frequency/Phase S__	1200 990 10 4.5 50-60 Hz/Single Phase	1920 1870 16 8.5 50-60 Hz/Single Phase	1560 1430 13 6.5 50-60 Hz/Single Phase	1920 1870 14 8.5 50-60 Hz/Single Phase

*-2 denotes 220V, R = Refrigerated. NOTE: Use distilled water only. Operating Specifications may vary depending on ambient conditions,

SHEL MB

A Product of SHELDON MFG. INC.
