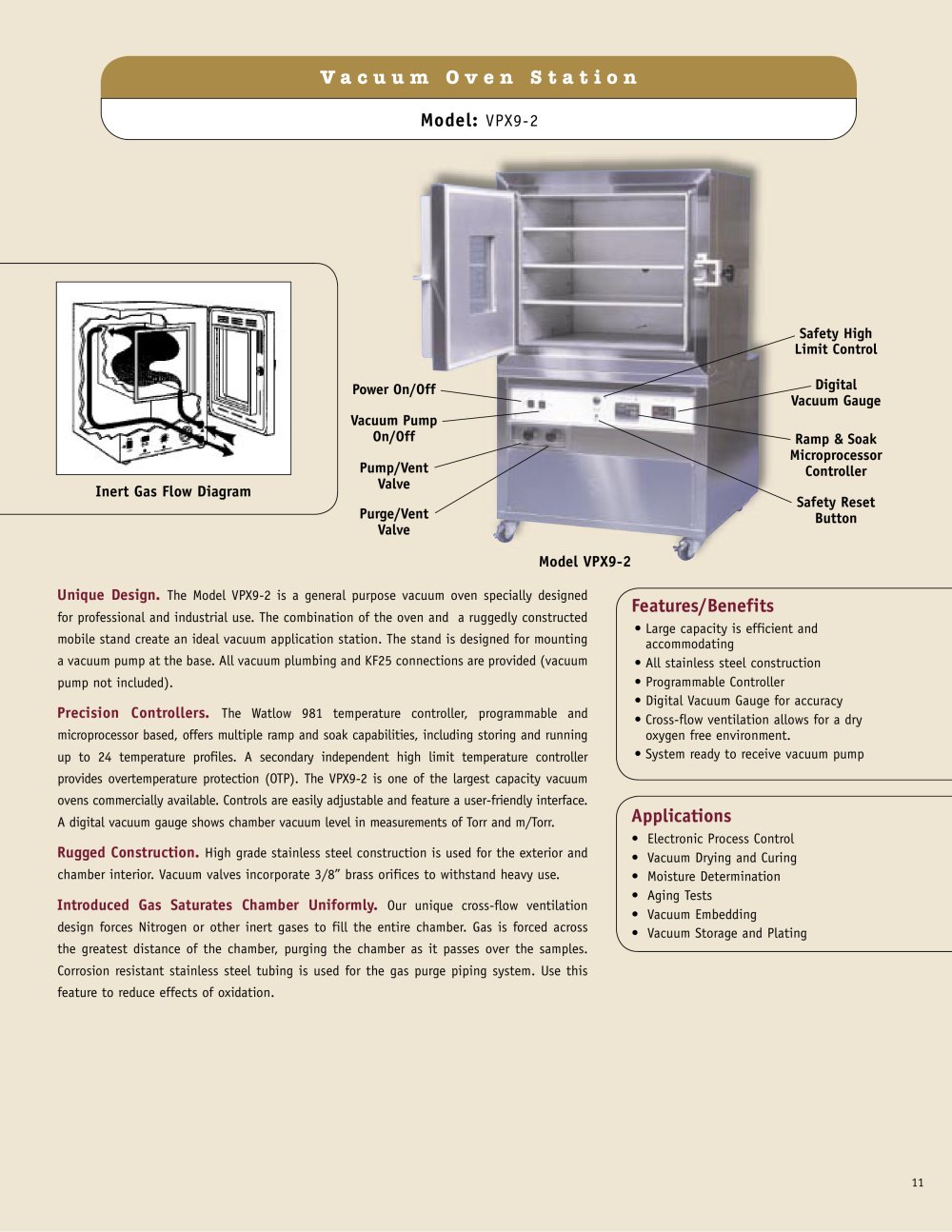

Model: vpx9-2

Safety High Limit Control

Digital Vacuum gauge

Ramp & Soak Microprocessor Controller

Safety Reset Button

Power On/Off

Industrial vacuum pump On/Off

Pump/Vent Valve

Purge/Vent Valve

Inert Gas Flow Diagram

Model VPX9-2

Unique Design. The Model VPX9-2 is a general purpose vacuum oven specially designed for professional and industrial use. The combination of the oven and a ruggedly constructed mobile stand create an ideal vacuum application station. The stand is designed for mounting a vacuum pump at the base. All vacuum plumbing and KF25 connections are provided (vacuum pump not included).

Precision Controllers. The Watlow 981 temperature controller manufacturer, programmable and microprocessor based, offers multiple ramp and soak capabilities, including storing and running up to 24 temperature profiles. A secondary independent high limit temperature controller provides overtemperature protection (OTP). The VPX9-2 is one of the largest capacity vacuum ovens commercially available. Controls are easily adjustable and feature a user-friendly interface. A digital vacuum gauge shows chamber vacuum level in measurements of Torr and m/Torr.

Rugged Construction. High grade stainless steel construction is used for the exterior and chamber interior. Vacuum valves incorporate 3/8" brass orifices to withstand heavy use.

Introduced Gas Saturates Chamber Uniformly. Our unique cross-flow ventilation design forces Nitrogen or other inert gases to fill the entire chamber. Gas is forced across the greatest distance of the chamber, purging the chamber as it passes over the samples. Corrosion resistant stainless steel tubing is used for the gas purge piping system. Use this feature to reduce effects of oxidation.

Features/Benefits

• Large capacity is efficient and accommodating

• All stainless steel construction

• Programmable Controller

• Digital Vacuum Gauge for accuracy

• Cross-flow ventilation allows for a dry oxygen free environment.

• System ready to receive vacuum pump

Applications

• Electronic Process Control

• Vacuum drying and Curing

• Moisture Determination

• Aging Tests

• Vacuum Embedding

• Vacuum Storage and Plating
