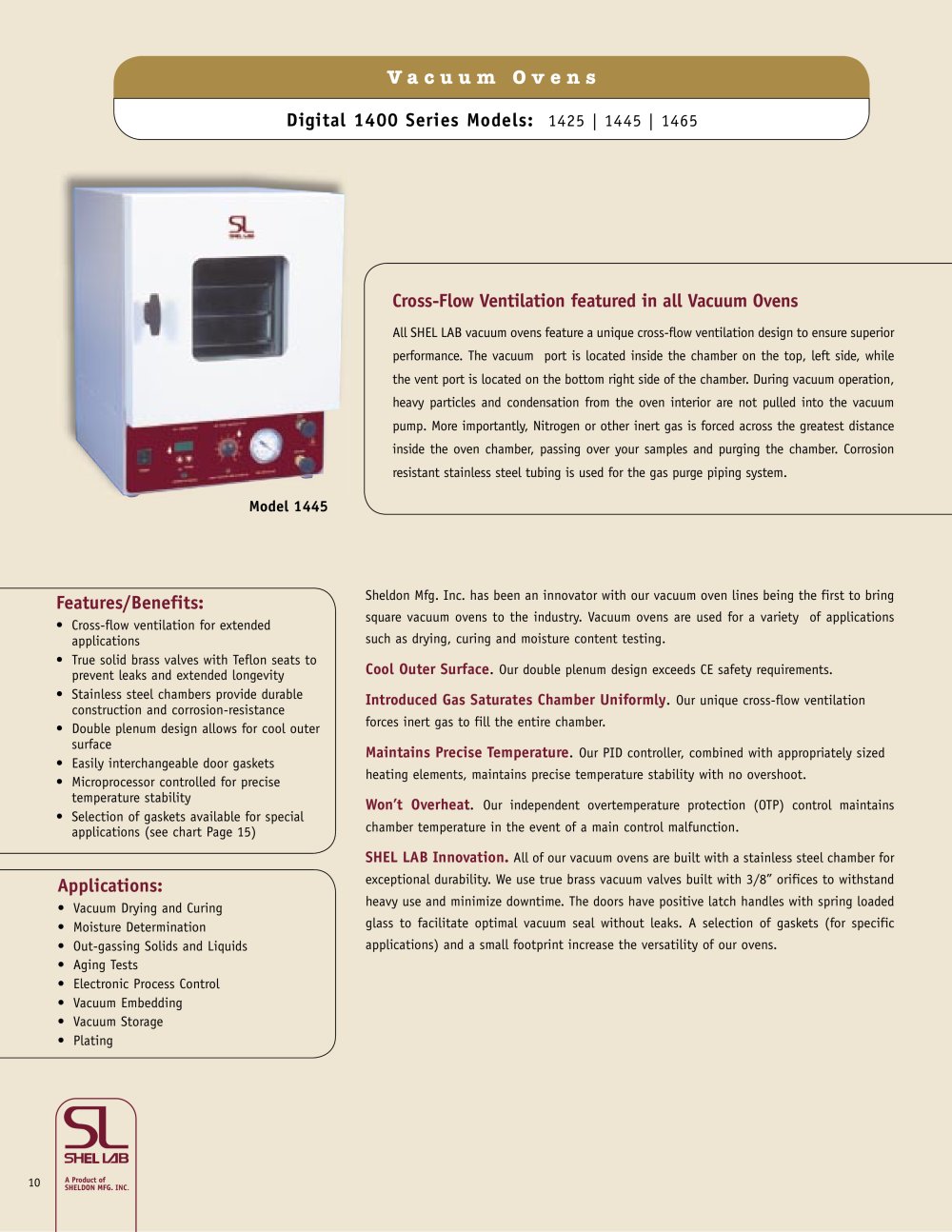

Digital 1400 Series Models: 1425 | 1445 | 1465

Cross-Flow Ventilation featured in all Vacuum ovens

All SHEL LAB vacuum ovens feature a unique cross-flow ventilation design to ensure superior performance. The vacuum port is located inside the chamber on the top, left side, while the vent port is located on the bottom right side of the chamber. During vacuum operation, heavy particles and condensation from the oven interior are not pulled into the vacuum pump manufacturer. More importantly, Nitrogen or other inert gas is forced across the greatest distance inside the oven chamber, passing over your samples and purging the chamber. Corrosion resistant stainless steel tubing is used for the gas purge piping system.

Model 1445

Sheldon Mfg. Inc. has been an innovator with our vacuum oven lines being the first to bring square vacuum ovens to the industry. Vacuum ovens are used for a variety of applications such as drying, curing and moisture content testing.

Cool Outer Surface. Our double plenum design exceeds CE safety requirements.

Introduced Gas Saturates Chamber Uniformly. Our unique cross-flow ventilation forces inert gas to fill the entire chamber.

Maintains Precise Temperature. Our PID controller, combined with appropriately sized heating elements, maintains precise temperature stability with no overshoot.

Won't Overheat. Our independent overtemperature protection (OTP) control maintains chamber temperature in the event of a main control malfunction.

SHEL LAB Innovation. All of our vacuum ovens are built with a stainless steel chamber for exceptional durability. We use true brass vacuum valves built with 3/8" orifices to withstand heavy use and minimize downtime. The doors have positive latch handles with spring loaded glass to facilitate optimal vacuum seal without leaks. A selection of gaskets (for specific applications) and a small footprint increase the versatility of our ovens.

Features/Benefits:

• Cross-flow ventilation for extended applications

• True solid brass valves with Teflon seats to prevent leaks and extended longevity

• Stainless steel chambers provide durable construction and corrosion-resistance

• Double plenum design allows for cool outer surface

• Easily interchangeable door gaskets

• Microprocessor controlled for precise temperature stability

• Selection of gaskets available for special applications (see chart Page 15)

Applications:

• Vacuum drying and Curing

• Moisture Determination

• Out-gassing Solids and Liquids

• Aging Tests

• Electronic Process Control

• Vacuum Embedding

• Vacuum Storage

• Plating

SHELLdB

A Product Of SHELDON MFG. INC.
