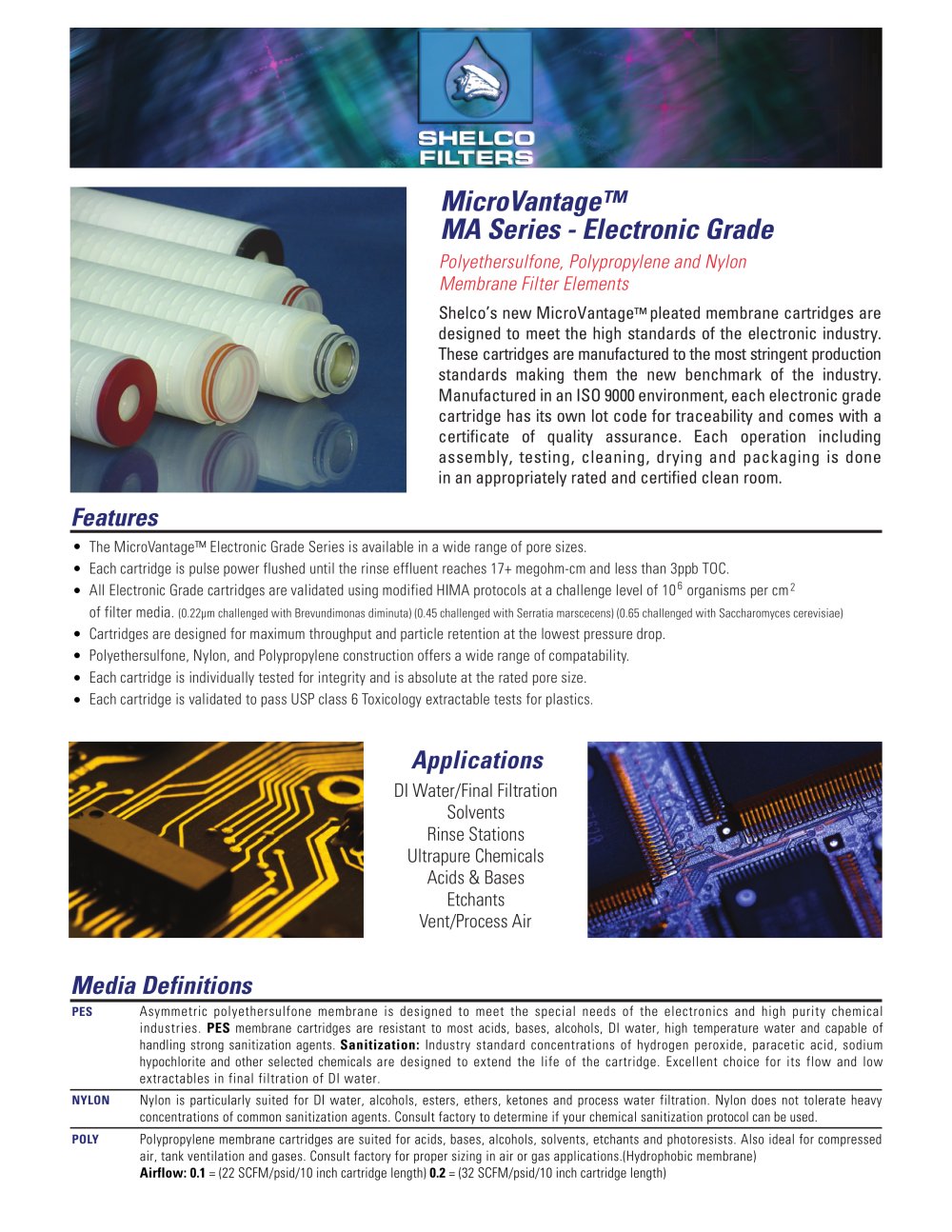

• • • • • • • Features Media Definitions Shelco’s new MicroVantage™ pleated membrane cartridges are designed to meet the high standards of the electronic industry. These cartridges are manufactured to the most stringent production standards making them the new benchmark of the industry. Manufactured in an ISO 9000 environment, each electronic grade cartridge has its own lot code for traceability and comes with a certificate of quality assurance. Each operation including assembly, testing, cleaning, drying and packaging is done in an appropriately rated and certified clean room. MicroVantage™ MA Series - Electronic Grade Polyethersulfone, Polypropylene and Nylon Membrane Filter Elements The MicroVantage™ Electronic Grade Series is available in a wide range of pore sizes. Each cartridge is pulse power flushed until the rinse effluent reaches 17+ megohm-cm and less than 3ppb TOC. All Electronic Grade cartridges are validated using modified HIMA protocols at a challenge level of 106 organisms per cm2 of filter media. (0.22ìm challenged with Brevundimonas diminuta) (0.45 challenged with Serratia marscecens) (0.65 challenged with Saccharomyces cerevisiae) Cartridges are designed for maximum throughput and particle retention at the lowest pressure drop. Polyethersulfone, Nylon, and Polypropylene construction offers a wide range of compatability. Each cartridge is individually tested for integrity and is absolute at the rated pore size. Each cartridge is validated to pass USP class 6 Toxicology extractable tests for plastics. Applications DI Water/Final Filtration Solvents Rinse Stations Ultrapure Chemicals Acids & Bases Etchants Vent/Process Air Asymmetric polyethersulfone membrane is designed to meet the special needs of the electronics and high purity chemical industries. PES membrane cartridges are resistant to most acids, bases, alcohols, DI water, high temperature water and capable of handling strong sanitization agents. Sanitization: Industry standard concentrations of hydrogen peroxide, paracetic acid, sodium hypochlorite and other selected chemicals are designed to extend the life of the cartridge. Excellent choice for its flow and low extractables in final filtration of DI water. PES NYLON POLY Nylon is particularly suited for DI water, alcohols, esters, ethers, ketones and process water filtration. Nylon does not tolerate heavy concentrations of common sanitization agents. Consult factory to determine if your chemical sanitization protocol can be used. Polypropylene membrane cartridges are suited for acids, bases, alcohols, solvents, etchants and photoresists. Also ideal for compressed air, tank ventilation and gases. Consult factory for proper sizing in air or gas applications.(Hydrophobic membrane) Airflow: 0.1 = (22 SCFM/psid/10 inch cartridge length) 0.2 = (32 SCFM/psid/10 inch cartridge length)
