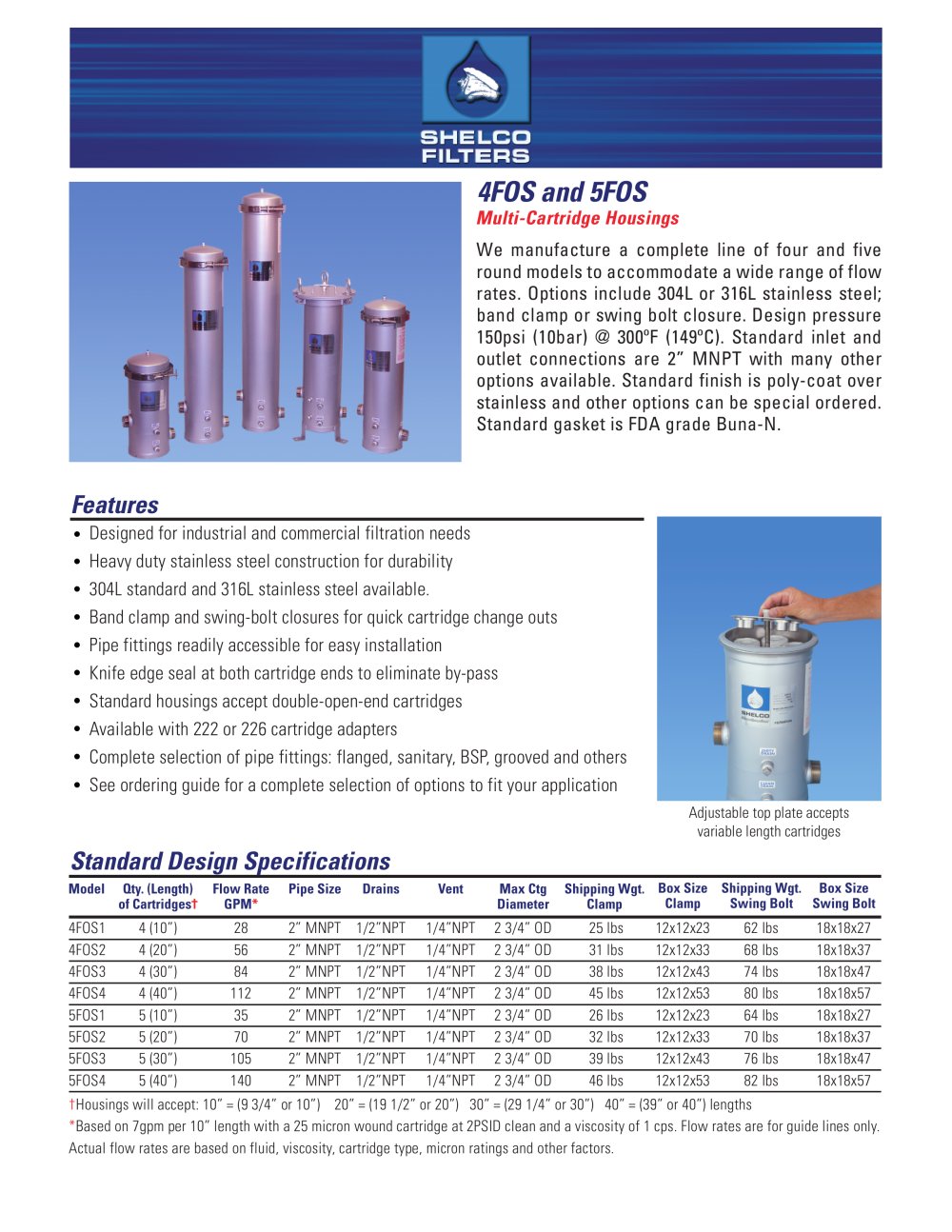

4FOS and 5FOS Multi-Cartridge Housings - Shelco Filters - #1

Text version of the page

• • • • • • • • • • We manufacture a complete line of four and five round models to accommodate a wide range of flow rates. Options include 304L or 316L stainless steel; band clamp or swing bolt closure. Design pressure 150psi (10bar) @ 300ºF (149ºC). Standard inlet and outlet connections are 2” MNPT with many other options available. Standard finish is poly-coat over stainless and other options can be special ordered. Standard gasket is FDA grade Buna-N. Features 4FOS and 5FOS Multi-Cartridge Housings Designed for industrial and commercial filtration needs Heavy duty stainless steel construction for durability 304L standard and 316L stainless steel available. Band clamp and swing-bolt closures for quick cartridge change outs Pipe fittings readily accessible for easy installation Knife edge seal at both cartridge ends to eliminate by-pass Standard housings accept double-open-end cartridges Available with 222 or 226 cartridge adapters Complete selection of pipe fittings: flanged, sanitary, BSP, grooved and others See ordering guide for a complete selection of options to fit your application Standard Design Specifications 4FOS1 4FOS2 4FOS3 4FOS4 5FOS1 5FOS2 5FOS3 5FOS4 Model 4 (10”) 4 (20”) 4 (30”) 4 (40”) 5 (10”) 5 (20”) 5 (30”) 5 (40”) Qty. (Length) of Cartridges† 2” MNPT 2” MNPT 2” MNPT 2” MNPT 2” MNPT 2” MNPT 2” MNPT 2” MNPT Pipe Size 1/2”NPT 1/2”NPT 1/2”NPT 1/2”NPT 1/2”NPT 1/2”NPT 1/2”NPT 1/2”NPT Drains 1/4”NPT 1/4”NPT 1/4”NPT 1/4”NPT 1/4”NPT 1/4”NPT 1/4”NPT 1/4”NPT Vent 25 lbs 31 lbs 38 lbs 45 lbs 26 lbs 32 lbs 39 lbs 46 lbs Shipping Wgt. Clamp 12x12x23 12x12x33 12x12x43 12x12x53 12x12x23 12x12x33 12x12x43 12x12x53 Box Size Clamp 62 lbs 68 lbs 74 lbs 80 lbs 64 lbs 70 lbs 76 lbs 82 lbs Shipping Wgt. Swing Bolt 18x18x27 18x18x37 18x18x47 18x18x57 18x18x27 18x18x37 18x18x47 18x18x57 Box Size Swing Bolt 2 3/4” OD 2 3/4” OD 2 3/4” OD 2 3/4” OD 2 3/4” OD 2 3/4” OD 2 3/4” OD 2 3/4” OD Max Ctg Diameter 28 56 84 112 35 70 105 140 Flow Rate GPM* †Housings will accept: 10” = (9 3/4” or 10”) 20” = (19 1/2” or 20”) 30” = (29 1/4” or 30”) 40” = (39” or 40”) lengths *Based on 7gpm per 10” length with a 25 micron wound cartridge at 2PSID clean and a viscosity of 1 cps. Flow rates are for guide lines only. Actual flow rates are based on fluid, viscosity, cartridge type, micron ratings and other factors. Adjustable top plate accepts variable length cartridges
