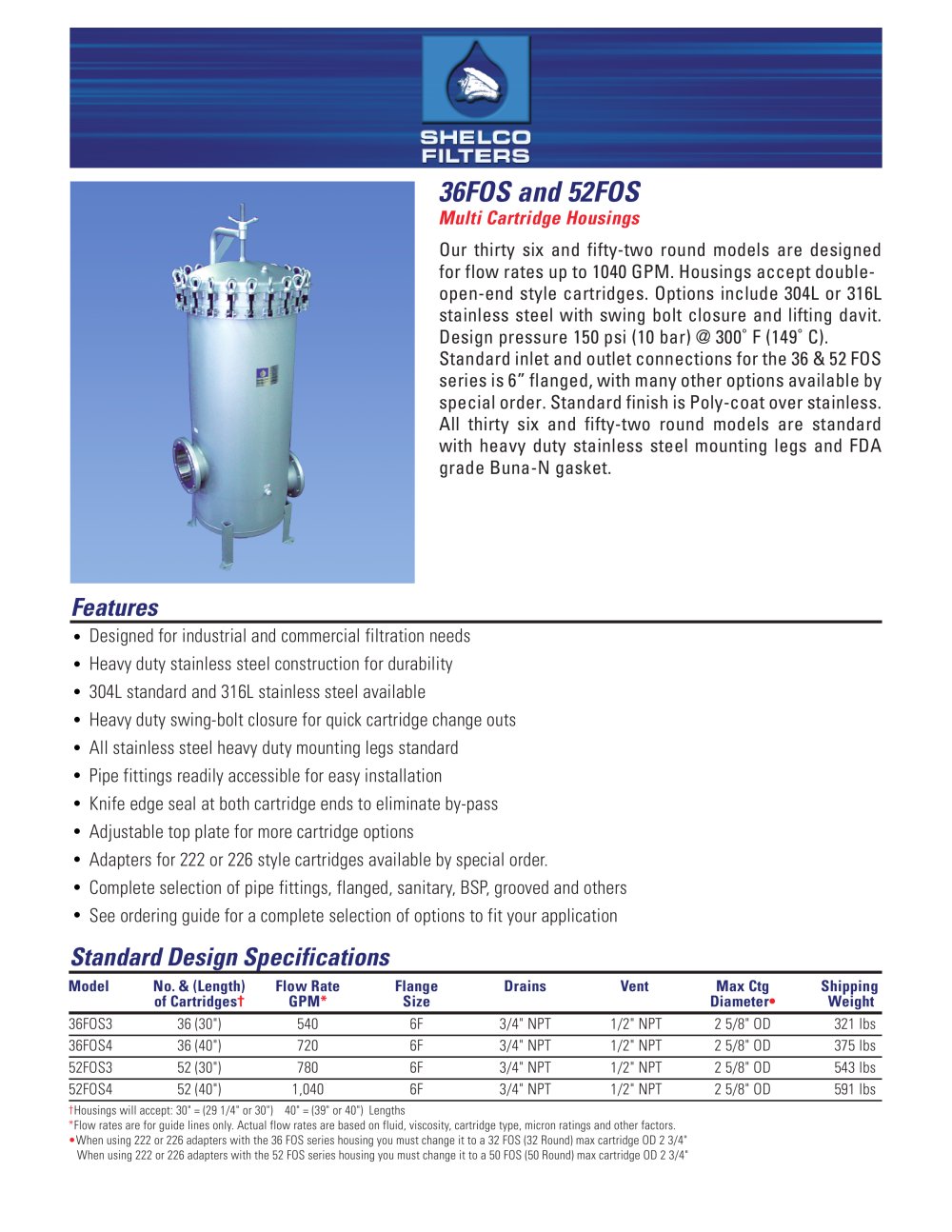

Our thirty six and fifty-two round models are designed for flow rates up to 1040 GPM. Housings accept doubleopen- end style cartridges. Options include 304L or 316L stainless steel with swing bolt closure and lifting davit. Design pressure 150 psi (10 bar) @ 300¢ª F (149¢ª C). Standard inlet and outlet connections for the 36 & 52 FOS series is 6” flanged, with many other options available by special order. Standard finish is Poly-coat over stainless. All thirty six and fifty-two round models are standard with heavy duty stainless steel mounting legs and FDA grade Buna-N gasket. 36FOS and 52FOS Multi Cartridge Housings • • • • • • • • • • • Features Designed for industrial and commercial filtration needs Heavy duty stainless steel construction for durability 304L standard and 316L stainless steel available Heavy duty swing-bolt closure for quick cartridge change outs All stainless steel heavy duty mounting legs standard Pipe fittings readily accessible for easy installation Knife edge seal at both cartridge ends to eliminate by-pass Adjustable top plate for more cartridge options Adapters for 222 or 226 style cartridges available by special order. Complete selection of pipe fittings, flanged, sanitary, BSP, grooved and others See ordering guide for a complete selection of options to fit your application Standard Design Specifications 36FOS3 36FOS4 52FOS3 52FOS4 Model 36 (30") 36 (40") 52 (30") 52 (40") No. & (Length) of Cartridges† 6F 6F 6F 6F Flange Size 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT Drains 1/2" NPT 1/2" NPT 1/2" NPT 1/2" NPT Vent 2 5/8" OD 2 5/8" OD 2 5/8" OD 2 5/8" OD Max Ctg Diameter• 321 lbs 375 lbs 543 lbs 591 lbs Shipping Weight 540 720 780 1,040 Flow Rate GPM* †Housings will accept: 30" = (29 1/4" or 30") 40" = (39" or 40") Lengths *Flow rates are for guide lines only. Actual flow rates are based on fluid, viscosity, cartridge type, micron ratings and other factors. •When using 222 or 226 adapters with the 36 FOS series housing you must change it to a 32 FOS (32 Round) max cartridge OD 2 3/4" When using 222 or 226 adapters with the 52 FOS series housing you must change it to a 50 FOS (50 Round) max cartridge OD 2 3/4"
