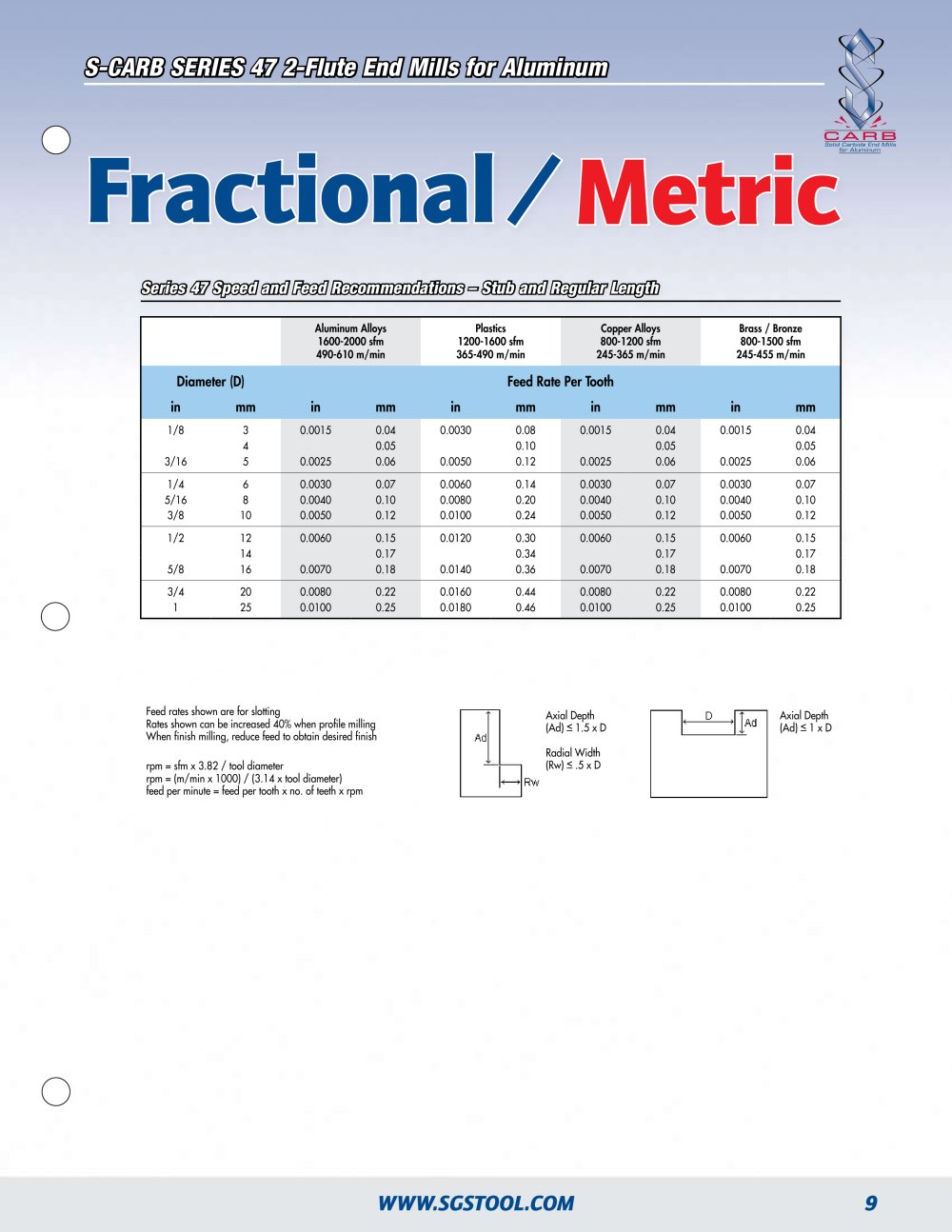

S-CARB SERIES 47 2-Flute End Mills for Aluminum
o
CD A R B
Solid Cerbide End Milla
far Aluminum
Fractional / Metric
Series 47 Speed and Feed Recommendations - Stub and Regular Length
Aluminum Alloys
Plastics
Brass / Bronze
1600-2000 sfm
1200-1600 sfm
800-1200 sfm
800-1500 sfm
490-610 m/min
365-490 m/min
245-365 m/min
245-455 m/min
Diameter (D)
Feed Rate Per Tooth
in
mm
in
mm
in
mm
in
mm
in
mm
1/8
3
0.0015
0.04
0.0030
0.08
0.0015
0.04
0.0015
0.04
4
0.05
0.10
0.05
0.05
3/16
5
0.0025
0.06
0.0050
0.12
0.0025
0.06
0.0025
0.06
1/4
6
0.0030
0.07
0.0060
0.14
0.0030
0.07
0.0030
0.07
5/16
CO
0.0040
0.10
0.0080
0.20
0.0040
0.10
0.0040
0.10
3/8
10
0.0050
0.12
0.0100
0.24
0.0050
0.12
0.0050
0.12
1/2
12
0.0060
0.15
0.0120
0.30
0.0060
0.15
0.0060
0.15
14
0.17
0.34
0.17
0.17
5/8
16
0.0070
0.18
0.0140
0.36
0.0070
0.18
0.0070
0.18
3/4
20
0.0080
0.22
0.0160
0.44
0.0080
0.22
0.0080
0.22
1
25
0.0100
0.25
0.0180
0.46
0.0100
0.25
0.0100
0.25
o
Feed rates shown are for slotting
Rates shown can be increased 40% when profile milling
When finish milling, reduce feed to obtain desired finish
rpm = sfm x 3.82 / tool diameter
rpm = (m/min x 1000) / (3.14 x tool diameter)
feed per minute = feed per tooth x no. of teeth x rpm
Axial Depth (Ad) < 1.5 x D
Radial Width (Rw) < .5 x D
Axial Depth (Ad) < 1 x D
Ad
Ad
Rw
O
WWW.5C5TOOL.COM
