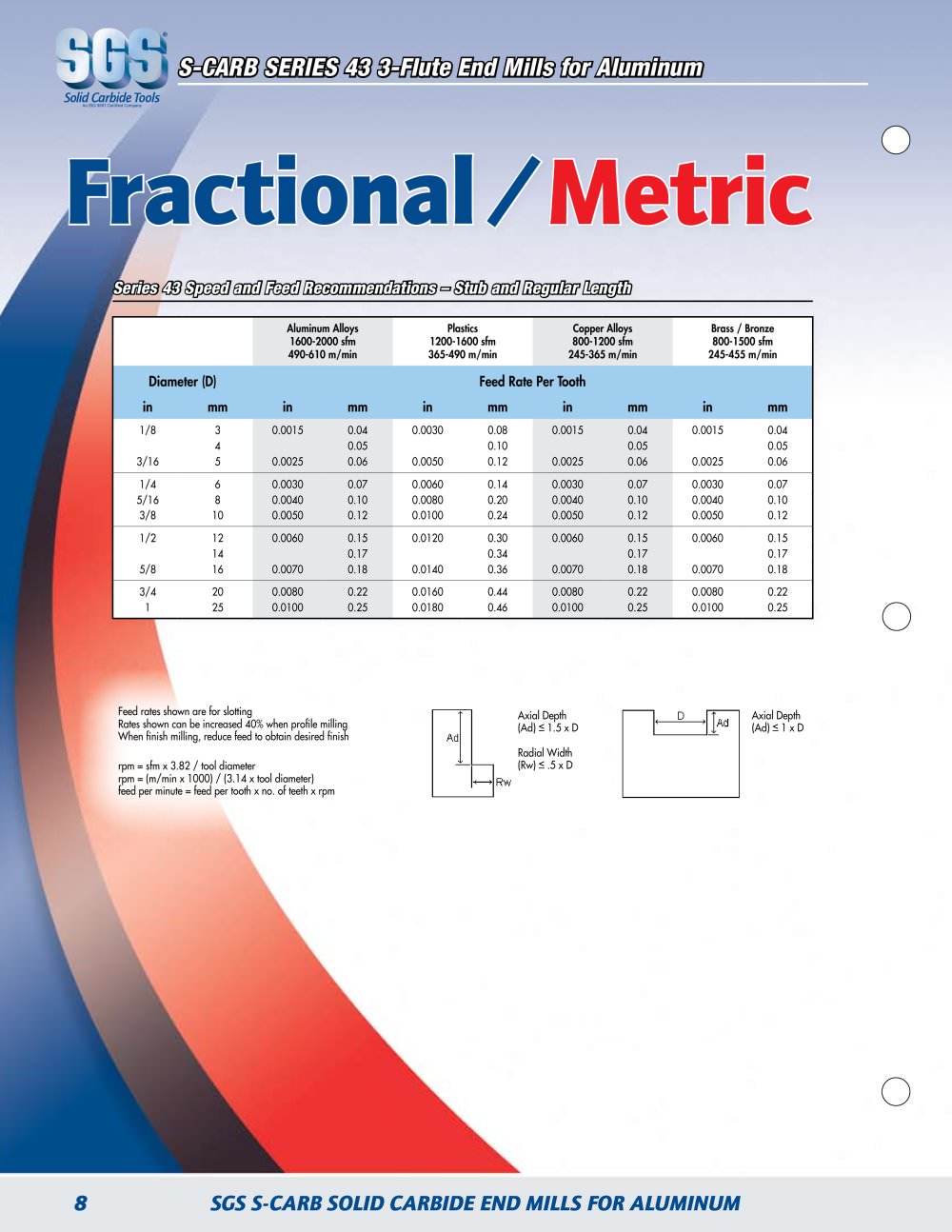

S-CARB SERIES 43 3-Flute End Mills for Aluminum
An ISO 8001 Certlttod Company
O
pactional /Metric
Series 43 Speed and Feed Recommendations - Stub and Regular Length
Aluminum Alloys
Plastics
Brass / Bronze
1600-2000 sfm
1200-1600 sfm
800-1200 sfm
800-1500 sfm
490-610 m/min
365-490 m/min
245-365 m/min
245-455 m/min
Diameter (D)
Feed Rate Per Tooth
in mm
in
mm
in
mm
in
mm
in
mm
1/8 3
0.0015
0.04
0.0030
0.08
0.0015
0.04
0.0015
0.04
4
0.05
0.10
0.05
0.05
3/16 5
0.0025
0.06
0.0050
0.12
0.0025
0.06
0.0025
0.06
1/4 6
0.0030
0.07
0.0060
0.14
0.0030
0.07
0.0030
0.07
5/16 8
0.0040
0.10
0.0080
0.20
0.0040
0.10
0.0040
0.10
3/8 10
0.0050
0.12
0.0100
0.24
0.0050
0.12
0.0050
0.12
1/2 12
0.0060
0.15
0.0120
0.30
0.0060
0.15
0.0060
0.15
14
0.17
0.34
0.17
0.17
5/8 16
0.0070
0.18
0.0140
0.36
0.0070
0.18
0.0070
0.18
3/4 20
0.0080
0.22
0.0160
0.44
0.0080
0.22
0.0080
0.22
1 25
0.0100
0.25
0.0180
0.46
0.0100
0.25
0.0100
0.25
O
Feed rates shown are for slotting
Rates shown can be increased 40% when profile milling
When finish milling, reduce feed to obtain desired finish
rpm = sfm x 3.82 / tool diameter
rpm = (m/min x 1000) / (3.14 x tool diameter)
feed per minute = feed per tooth x no. of teeth x rpm
Axial Depth
( D )
Ad
(Ad) < 1.5 x D
Ad
Radial Width (Rw) < .5 x D
Rw
Axial Depth
(Ad) < 1 x D
O
8
SGS S-CARB SOLID CARBIDE END MILLS FOR ALUMINUM
