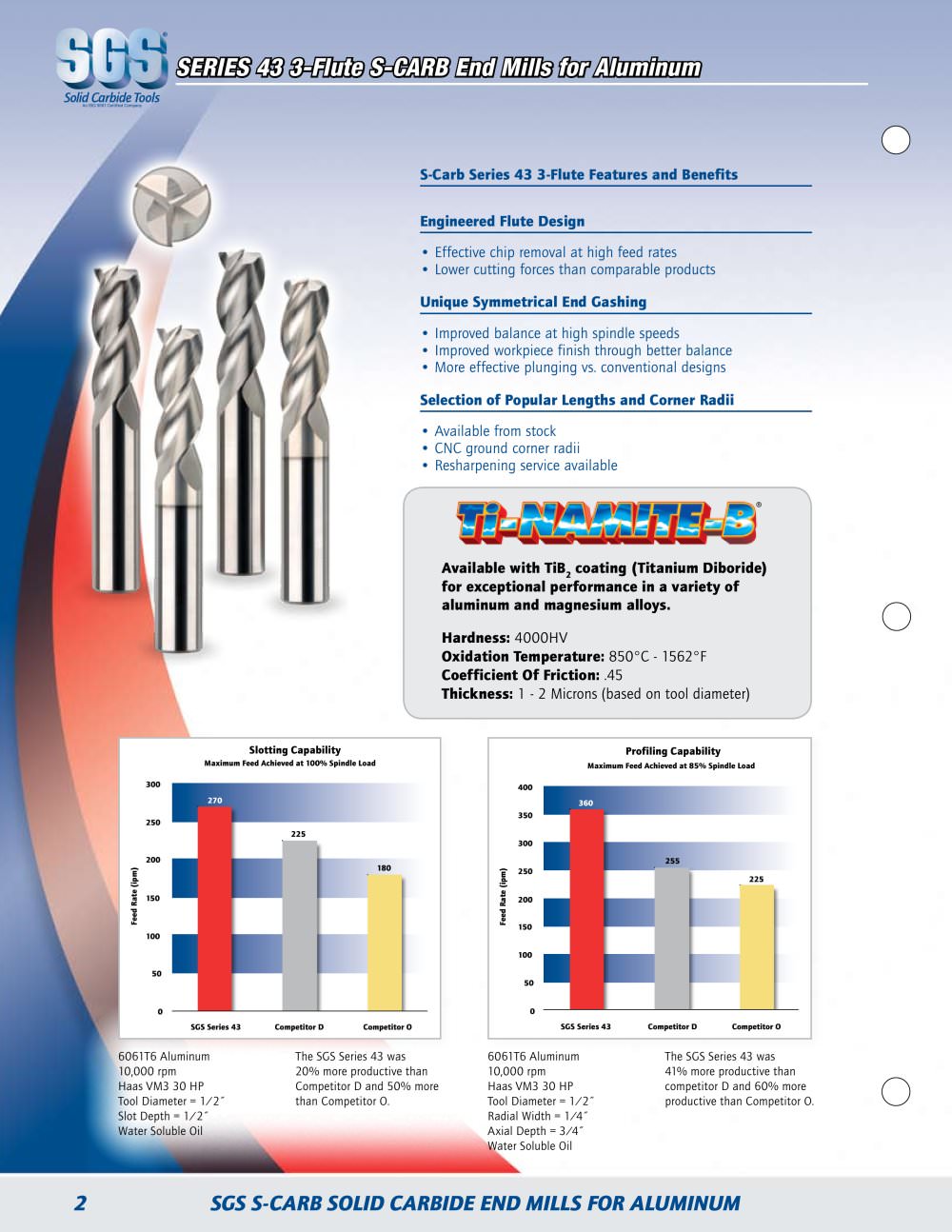

| | | ^ t s ^ SERIES 43 3-Flute S-CARB End Mills for Aluminum | | |
| | | |
| | | An ISO 8001 Certiftod Company | | |
| | | |
| | | O | | |
| | | |
| | | S-Carb Series 43 3-Flute Features and Benefits | | |
| | | |
| | | Engineered Flute Design | | |
| | | |
| | | • Effective chip removal at high feed rates • Lower cutting forces than comparable products | | |
| | | |
| | | Unique Symmetrical End Gashing | | |
| | | |
| | | • Improved balance at high spindle speeds • Improved workpiece finish through better balance • More effective plunging vs. conventional designs Selection of Popular Lengths and Corner Radii | | |
| | | |
| | | • Available from stock • CNC ground corner radii • Resharpening service available | | |
| | | |
| | | Available with TiB2 coating (Titanium Diboride) for exceptional performance in a variety of aluminum and magnesium alloys. Hardness: 4000HV Oxidation Temperature: 850 C - 1562 F Coefficient Of Friction: .45 Thickness: 1 - 2 Microns (based on tool diameter) | | |
| | | O | | |
| | | |
| | | |
| | | ■6061T6 Aluminum Ll0,000 rpm HaasVM3 30 HP fool Diameter = 1/2" Clot Depth = 1/2" .Water Soluble Oil | | |
| | | The SCS Series 43 was 20% more productive than Competitor D and 50% more than Competitor 0. | | 6061T6 Aluminum 10,000 rpm HaasVM3 30 HP Tool Diameter = 1/2" Radial Width = 1/4" Axial Depth = 3/4" ttWater Soluble Oil | | The SCS Series 43 was 41% more productive than competitor D and 60% more productive than Competitor 0. | | |
| | | O | | |
| | | |
| | | | |
| | | |
| | | |
| | | 2 | | SCS S-CARB SOLID CARBIDE END MILLS FOR ALUMINUM | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
