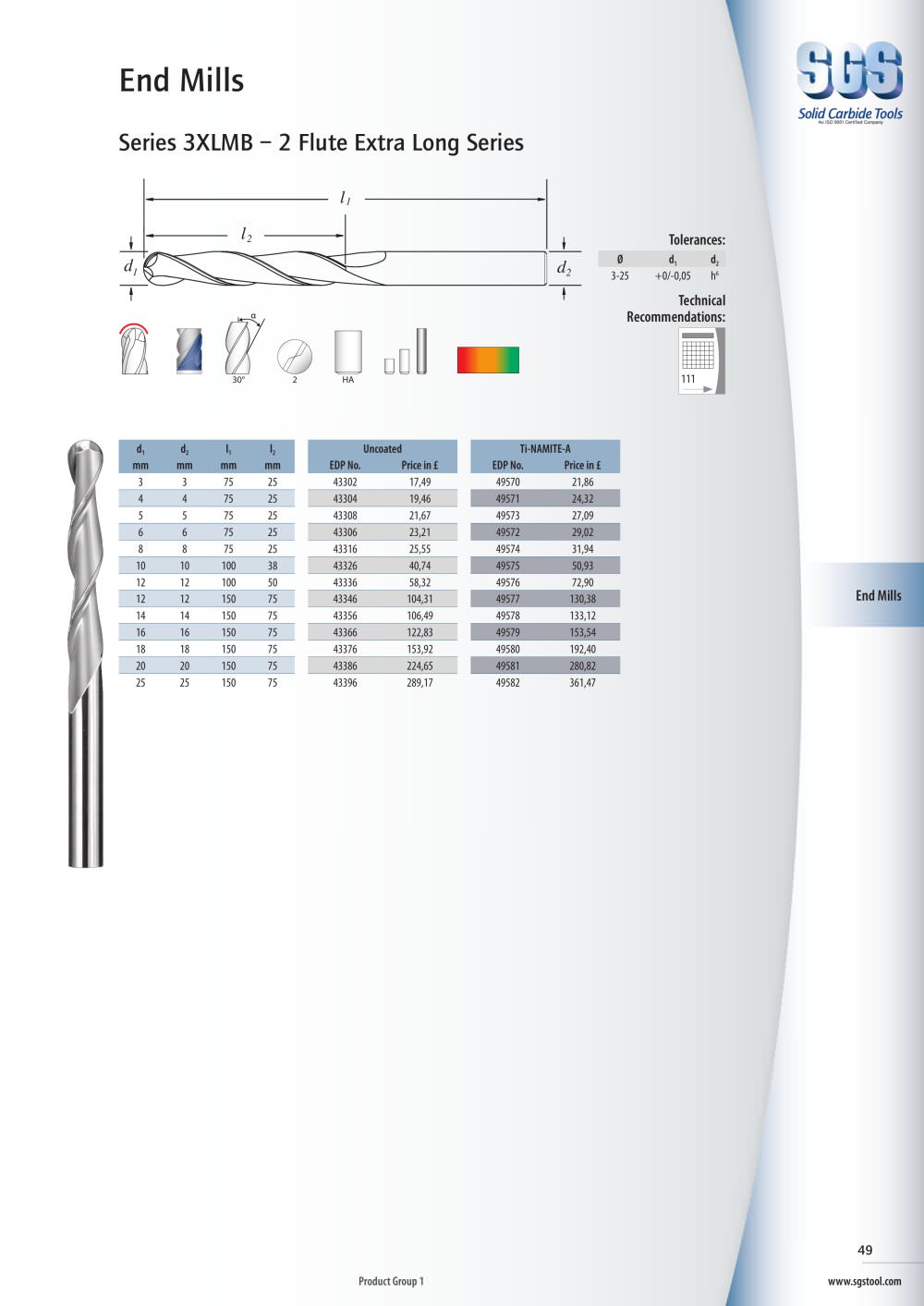

Solid Carbide tools

An ISO 9001 Carfifisd Company

End Mills

Series 3XLMB - 2 Flute Extra Long Series

Tolerances:

d, d₂

+0/-0,05 h⁶

Technical Recommendations:

0

3-25

d₂

0

30" 2

HA


	d.	d2	l,	^l2		Uncoated	Ti-NAMITE-A
	mm	mm	mm	mm	EDP No.	Price in £	EDP No.	Price in £
	3	3	75	25	43302	17,49	49570	21,86
	4	4	75	25	43304	19,46	49571	24,32
	5	5	75	25	43308	21,67	49573	27,09
	6	6	75	25	43306	23,21	49572	29,02
	8	8	75	25	43316	25,55	49574	31,94
	10	10	100	38	43326	40,74	49575	50,93
	12	12	100	50	43336	58,32	49576	72,90
	12	12	150	75	43346	104,31	49577	130,38
	14	14	150	75	43356	106,49	49578	133,12
	16	16	150	75	43366	122,83	49579	153,54
	18	18	150	75	43376	153,92	49580	192,40
	20	20	150	75	43386	224,65	49581	280,82
	25	25	150	75	43396	289,17	49582	361,47

End Mills

49

Product Group 1

www.sgstool.com
