ÍJJJ3

Solid Carbide tools

An ISO 9001 CaüfM Company

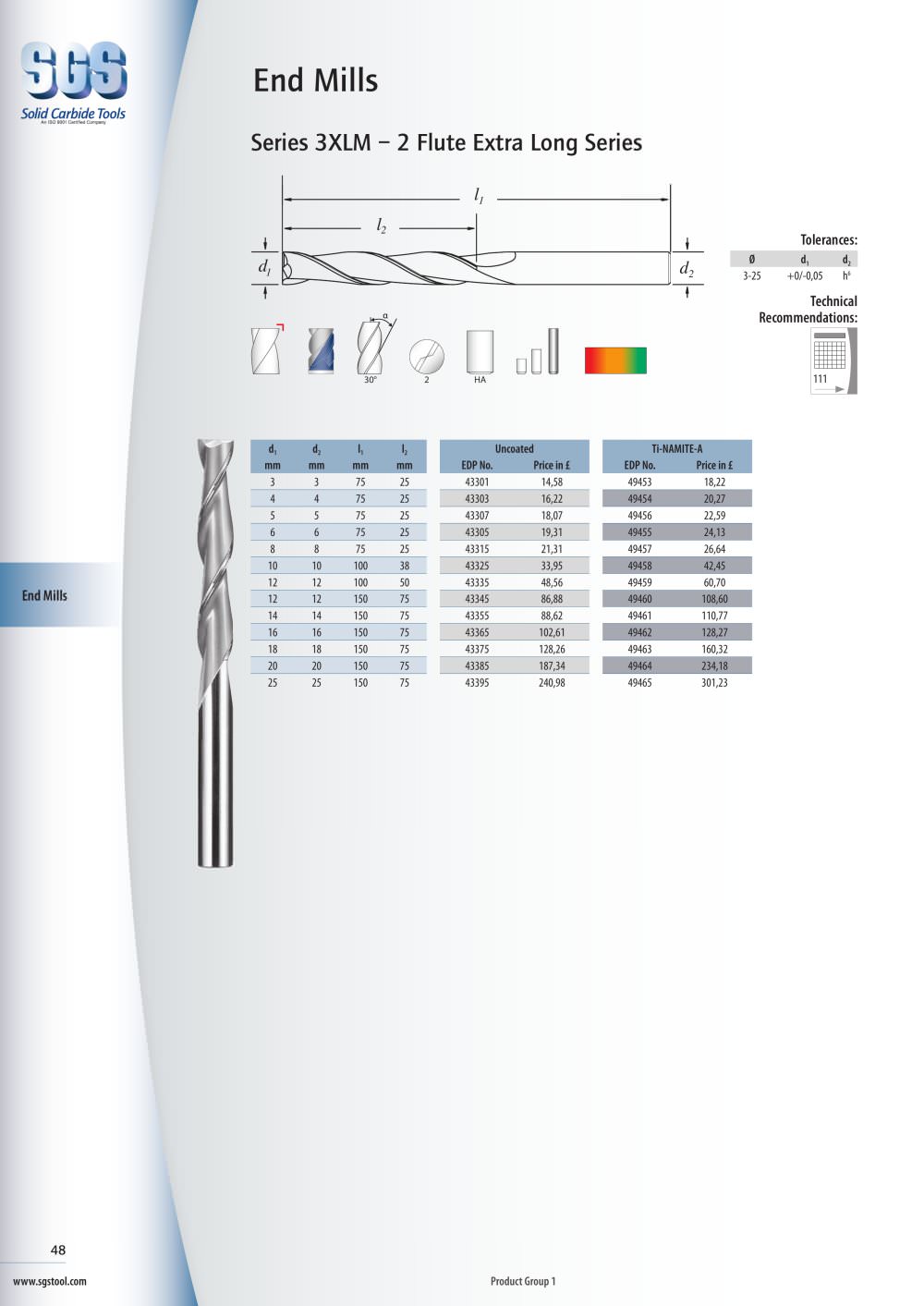

End Mills

Series 3XLM - 2 Flute Extra Long Series

Tolerances:

d, d₂

+0/-0,05 h⁶

Technical Recommendations:

0

3-25

d₂

30" 2 HA


		d2	l,	^l2		Uncoated	Ti-NAMITE-A
	mm	mm	mm	mm	EDP No.	Price in £	EDP No.	Price in £
	3	3	75	25	43301	14,58	49453	18,22
	4	4	75	25	43303	16,22	49454	20,27
	5	5	75	25	43307	18,07	49456	22,59
	6	6	75	25	43305	19,31	49455	24,13
	8	8	75	25	43315	21,31	49457	26,64
	10	10	100	38	43325	33,95	49458	42,45
	12	12	100	50	43335	48,56	49459	60,70
	12	12	150	75	43345	86,88	49460	108,60
	14	14	150	75	43355	88,62	49461	110,77
	16	16	150	75	43365	102,61	49462	128,27
	18	18	150	75	43375	128,26	49463	160,32
	20	20	150	75	43385	187,34	49464	234,18
	25	25	150	75	43395	240,98	49465	301,23

End Mills

48
