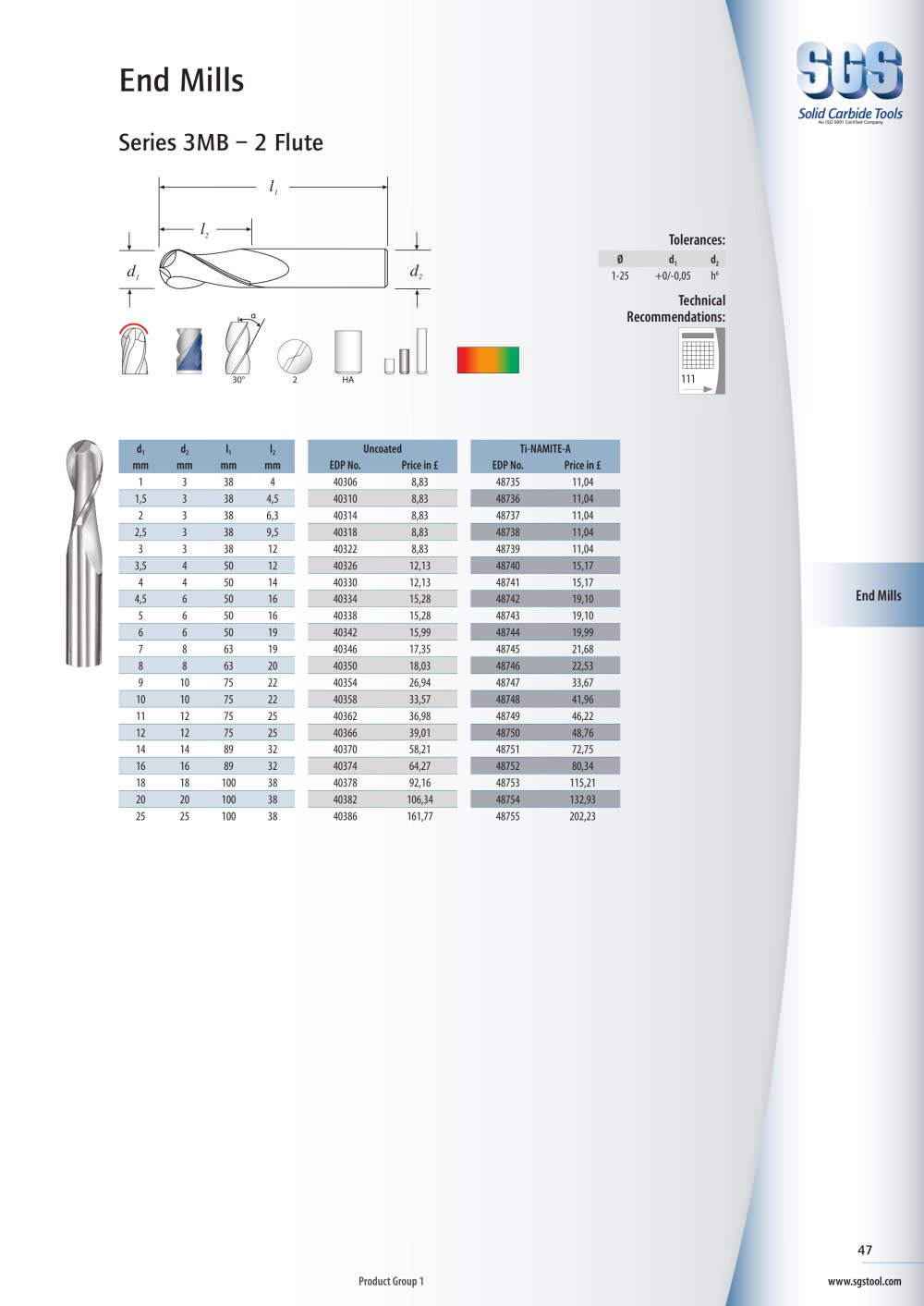

333

Solid Carbide tools

An ISO 9001 CariilM Company

End Mills

Series 3MB - 2 Flute

Tolerances:

d, d₂

+0/-0,05 h⁶

Technical Recommendations:

0

1-25

111 j

30" 2 HA


	d.	d2	l,	^l2		Uncoated	Ti-NAMITE-A
	mm	mm	mm	mm	EDP No.	Price in £	EDP No.	Price in £
	1	3	38	4	40306	8,83	48735	11,04
	1,5	3	38	4,5	40310	8,83	48736	11,04
	2	3	38	6,3	40314	8,83	48737	11,04
	2,5	3	38	9,5	40318	8,83	48738	11,04
	3	3	38	12	40322	8,83	48739	11,04
	3,5	4	50	12	40326	12,13	48740	15,17
	4	4	50	14	40330	12,13	48741	15,17
	4,5	6	50	16	40334	15,28	48742	19,10
	5	6	50	16	40338	15,28	48743	19,10
	6	6	50	19	40342	15,99	48744	19,99
	7	8	63	19	40346	17,35	48745	21,68
	8	8	63	20	40350	18,03	48746	22,53
	9	10	75	22	40354	26,94	48747	33,67
	10	10	75	22	40358	33,57	48748	41,96
	11	12	75	25	40362	36,98	48749	46,22
	12	12	75	25	40366	39,01	48750	48,76
	14	14	89	32	40370	58,21	48751	72,75
	16	16	89	32	40374	64,27	48752	80,34
	18	18	100	38	40378	92,16	48753	115,21
	20	20	100	38	40382	106,34	48754	132,93
	25	25	100	38	40386	161,77	48755	202,23

End Mills

47

Product Group 1

www.sgstool.com
