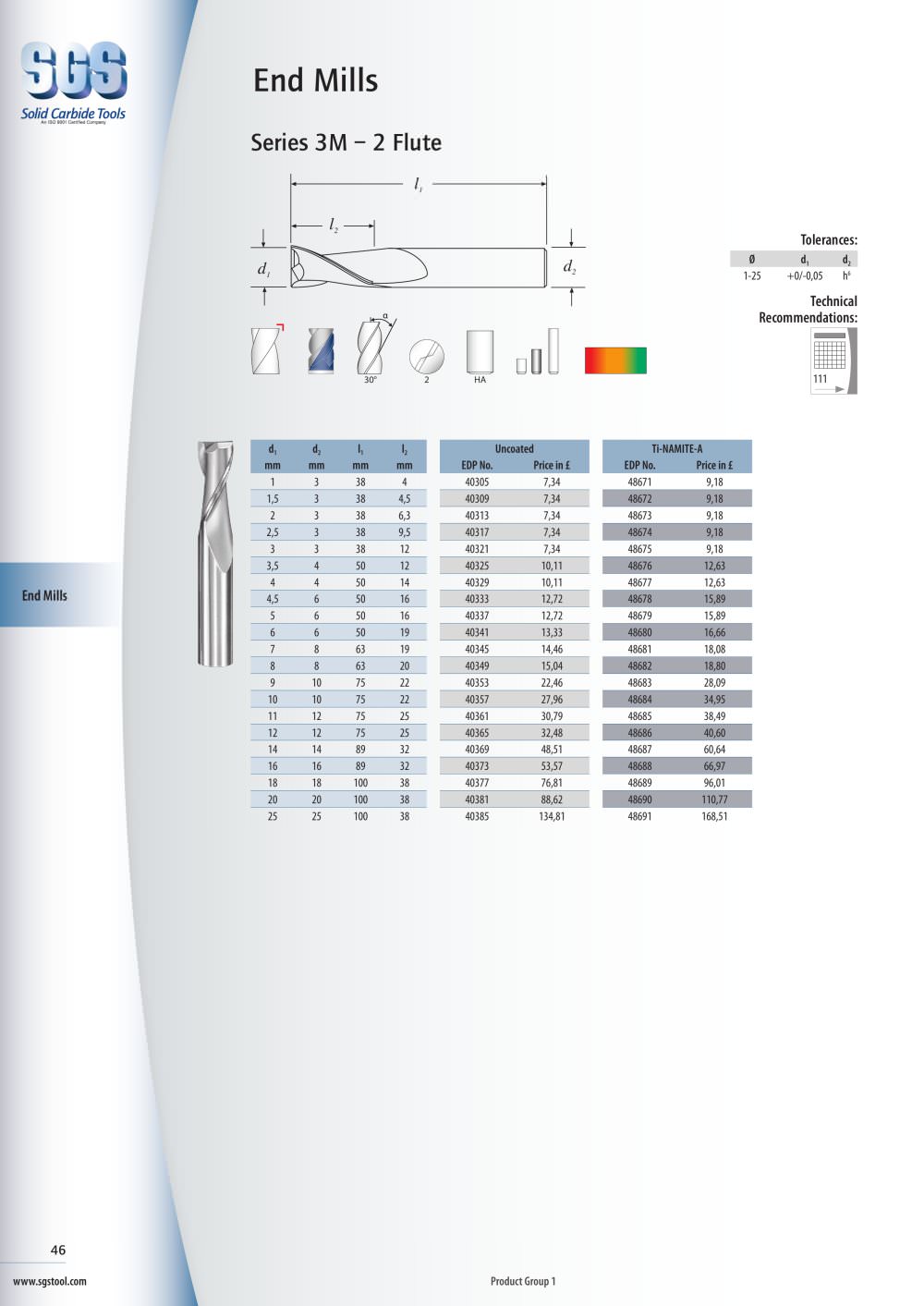

ÍJJJ3

Solid Carbide tools

An ISO 9001 CaüfM Company

End Mills

Series 3M-2 Flute

Tolerances:

d, d₂

+0/-0,05 h⁶

Technical Recommendations:

0

1-25

30"

2

HA


		d2	l,	^l2		Uncoated	Ti-NAMITE-A
	mm	mm	mm	mm	EDP No.	Price in £	EDP No.	Price in £
	1	3	38	4	40305	7,34	48671	9,18
	1,5	3	38	4,5	40309	7,34	48672	9,18
	2	3	38	6,3	40313	7,34	48673	9,18
	2,5	3	38	9,5	40317	7,34	48674	9,18
	3	3	38	12	40321	7,34	48675	9,18
	3,5	4	50	12	40325	10,11	48676	12,63
	4	4	50	14	40329	10,11	48677	12,63
	4,5	6	50	16	40333	12,72	48678	15,89
	5	6	50	16	40337	12,72	48679	15,89
	6	6	50	19	40341	13,33	48680	16,66
	7	8	63	19	40345	14,46	48681	18,08
	8	8	63	20	40349	15,04	48682	18,80
	9	10	75	22	40353	22,46	48683	28,09
	10	10	75	22	40357	27,96	48684	34,95
	11	12	75	25	40361	30,79	48685	38,49
	12	12	75	25	40365	32,48	48686	40,60
	14	14	89	32	40369	48,51	48687	60,64
	16	16	89	32	40373	53,57	48688	66,97
	18	18	100	38	40377	76,81	48689	96,01
	20	20	100	38	40381	88,62	48690	110,77
	25	25	100	38	40385	134,81	48691	168,51

End Mills

46

www.sgstool.com
