Solid Carbide tools

An ISO 9001 Corti fed CorT*»ny

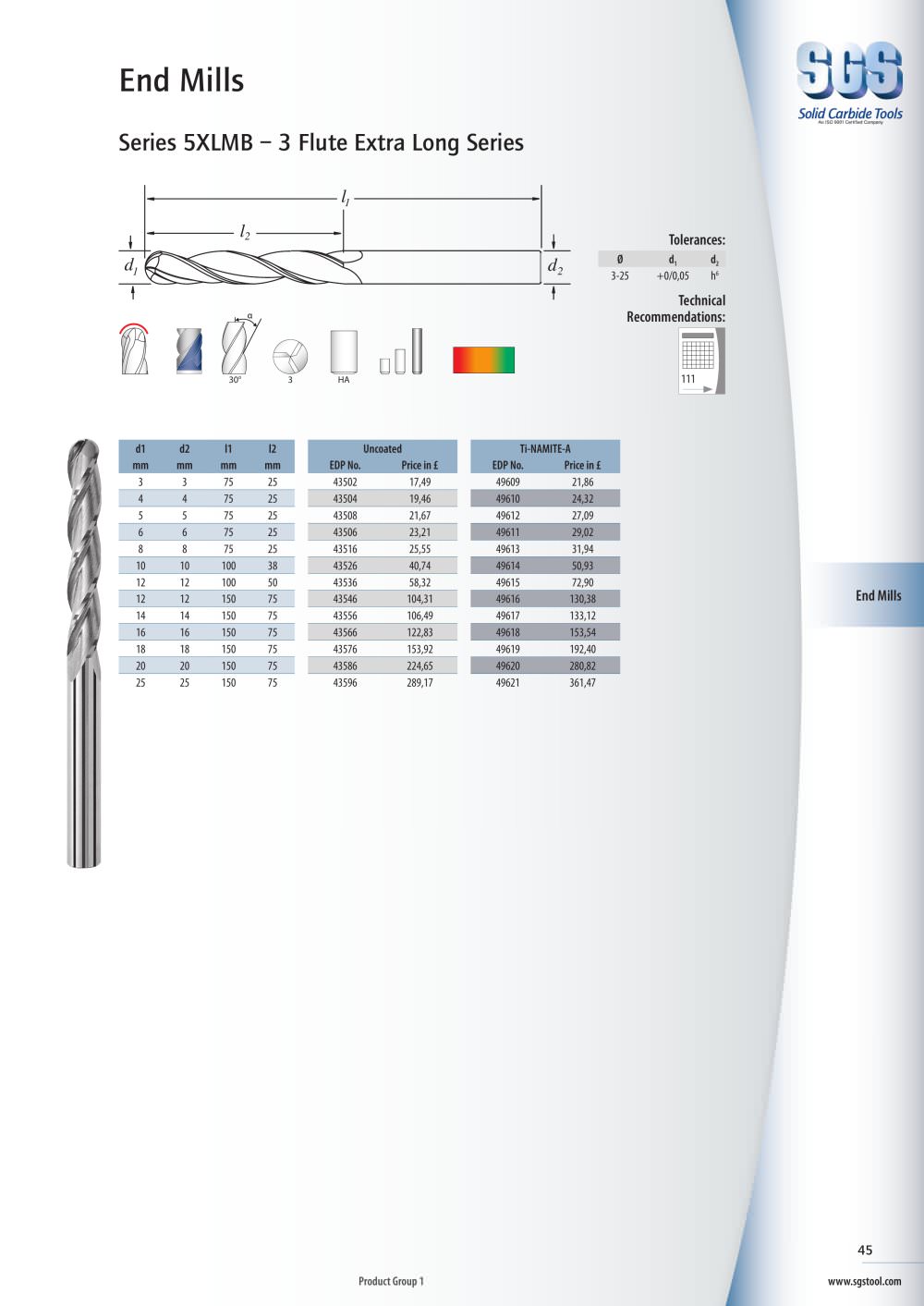

End Mills

Series 5XLMB - 3 Flute Extra Long Series

i

2

Tolerances:

d, d₂

+0/0,05 h⁶

Technical Recommendations:

_L T

0

3-25

d₂

30'

3

HA


	dl	d2	li	12		Uncoated	Ti-NAMITE-A
	mm	mm	mm	mm	EDP No.	Price in £	EDP No.	Price in £
	3	3	75	25	43502	17,49	49609	21,86
	4	4	75	25	43504	19,46	49610	24,32
	5	5	75	25	43508	21,67	49612	27,09
	6	6	75	25	43506	23,21	49611	29,02
	8	8	75	25	43516	25,55	49613	31,94
	10	10	100	38	43526	40,74	49614	50,93
	12	12	100	50	43536	58,32	49615	72,90
	12	12	150	75	43546	104,31	49616	130,38
	14	14	150	75	43556	106,49	49617	133,12
	16	16	150	75	43566	122,83	49618	153,54
	18	18	150	75	43576	153,92	49619	192,40
	20	20	150	75	43586	224,65	49620	280,82
	25	25	150	75	43596	289,17	49621	361,47

End Mills

45

Product Group 1

www.sgstool.com
