Cutting
Diameter
d1
Length
of Cut
l2
Overall
Length
l1
Shank
Diameter
d2
Ti-NAMITE -A
(AlTiN)
EDP No.
Ti-NAMITE -A
(AlTiN)
EDP No. w/Flat
1/8 1/4 1-1/2 1/8 32672 –
1/8 1/2 1-1/2 1/8 32655 –
5/32 9/16 2 3/16 32656 –
3/16 5/16 2 3/16 32673 –
3/16 5/8 2 3/16 32657 –
7/32 3/4 2-1/2 1/4 32658 –
1/4 3/8 2 1/4 32674 –
1/4 3/4 2-1/2 1/4 32659 –
5/16 7/16 2 5/16 32675 –
5/16 13/16 2-1/2 5/16 32660 –
3/8 1/2 2 3/8 32676 32677
3/8 1 2-1/2 3/8 32661 32662
7/16 1 2-3/4 7/16 32663 –
1/2 5/8 2-1/2 1/2 32678 32679
1/2 1-1/4 3 1/2 32664 32665
5/8 3/4 3 5/8 32680 32681
5/8 1-5/8 3-1/2 5/8 32666 32667
3/4 1 3 3/4 32682 32683
3/4 1-5/8 4 3/4 32668 32669
1 1-1/2 4 1 32670 32671
Tolerances (inch)
Diameter d1 d2
1/8 –1 +.0000/–.0020 h6 55
www.sgstool.com
Fractional 55
Series

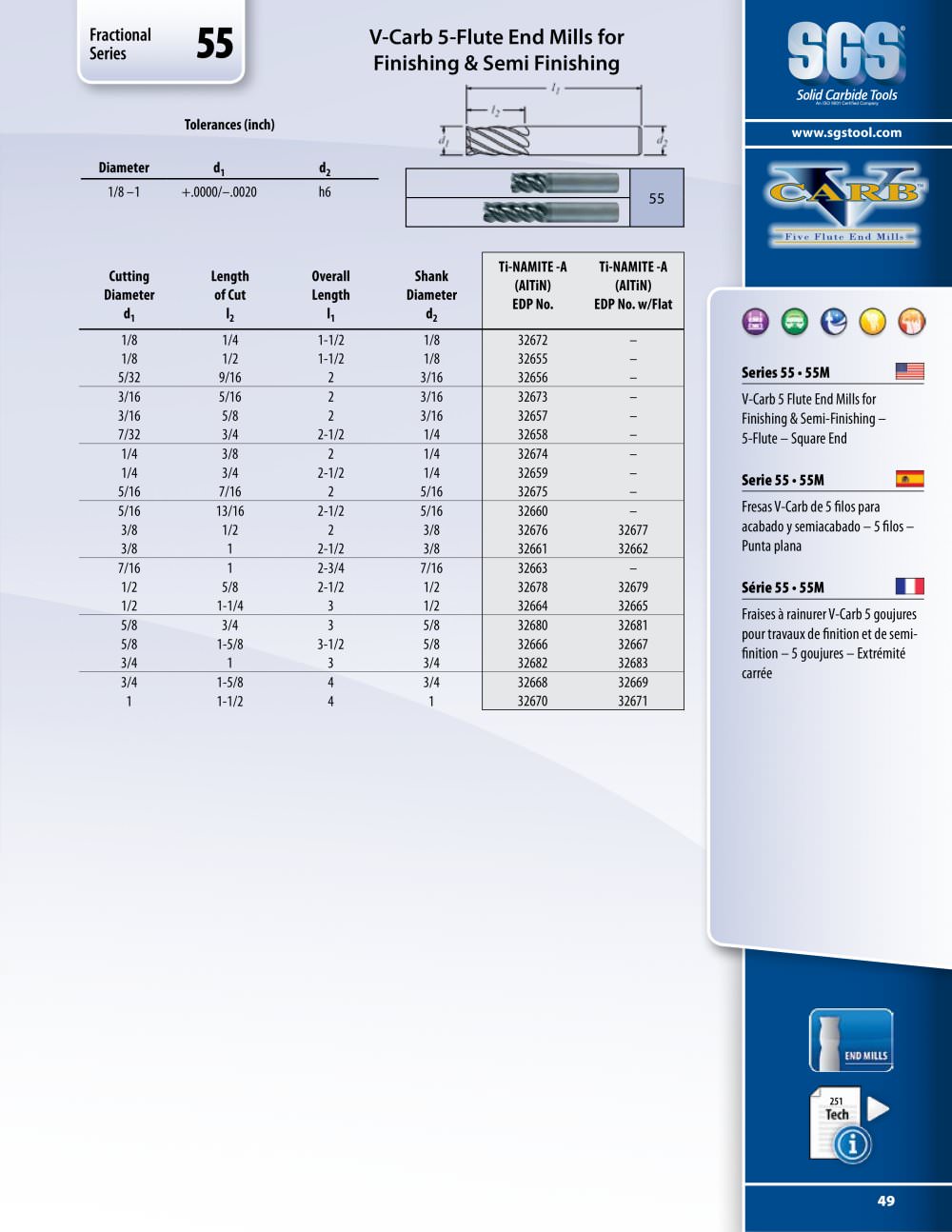

V-Carb 5-Flute End Mills for
Finishing & Semi Finishing
Series 55 • 55M
V-Carb 5 Flute End Mills for
Finishing & Semi-Finishing –
5-Flute – Square End
Serie 55 • 55M
Fresas V-Carb de 5 filos para
acabado y semiacabado – 5 filos –
Punta plana
Série 55 • 55M
Fraises à rainurer V-Carb 5 goujures
pour travaux de finition et de semifinition
– 5 goujures – Extrémité
carrée
251
49
